2-206934-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-37 CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 合规性 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600VAC/DC | 通道数量 | 37 |
| 最大额定电流 | 13A | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 包装方式 | Tray | 外壳尺寸 | 23 |
| 方向 | A | 外壳样式 | Receptacle |
| 端接方式 | Solder | 螺纹尺寸 | 1-3/8 - 18 UNEF-2A |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 插针或插孔 | Pin | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Panel | 外壳材料（壳体） | Thermoplastic |
| 连接器样式 | Receptacle | 壳体材料 | Thermoplastic |
| 面板安装类型 | Square Flange | 端接样式 | Solder |
| 第一触头极性 | Male | 配接方向 | Threaded |
| 触点数 | 37 | 端接表面处理 | Gold |
| 位数 | 37 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 3.81 [.150] | 外壳材料及表面处理 | Thermoplastic |
| 端子柱长度 | 3.02 [0.119] | 接触镀层厚度 | 30µin (0.76µm) |
| 第二连接器安装特性 | Standard | ||
产品信息
| 备注 | Posts are 0.43 [.017] offset from centerline of contacts. All posts must be ori | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 钥匙类型 | A | 预加载 | Yes |
| 产品子类型 | Connectors | 其他规格 | Without |
环境参数
| 工作温度 | -40°C ~ 105°C | ||
文档与媒体
相关型号
206150-3
te connectivity / amp
Conn CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port CPC Connectors CONN CPC PLUG 37POS W/O SOCKET 37 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Standard Circular Connector CPC PLUG ASSEMBLY SI Conn CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Product Highlights:HousingHousing Type = PlugNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC HOUSINGPLUG37WAY Connector: circular; Series: CPC Series 1; plug; female; PIN:37 TE Connectivity 37路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-37
206150-1
te connectivity / amp
Conn Sealed CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port CPC Connectors CONN PLUG CPC 37POS STD SER 1 37 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector PLUG 37 POSITION shell size 23 Conn Sealed CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 23-37, FREE ConnectorHousing;CPCPlugAssy;37Pos.;Sz.23;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:37 Plug CPC1 Poles=37, accepts female contacts / Free hanging/cable mount, 206150-1, TE Connectivity TE Connectivity 37路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-37

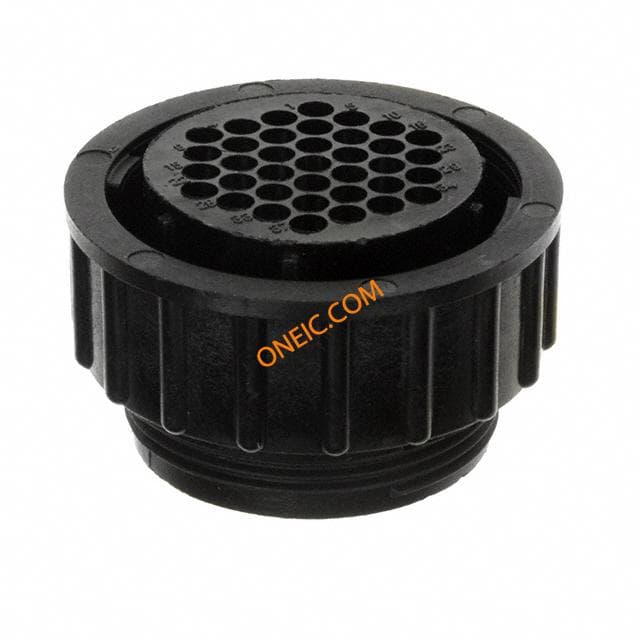

182923-1
