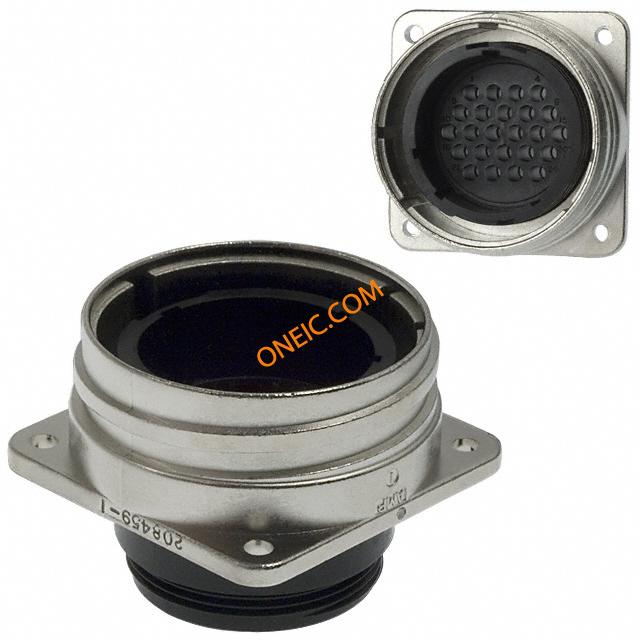

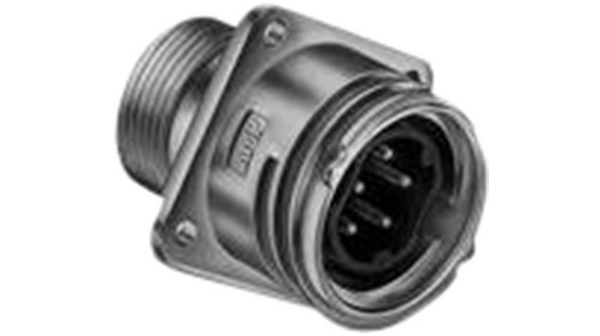

208459-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Metal Shell CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port Circular Plastic Connectors CONN RECEPT CMC 24POS STD SER 1 24 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 28 with Male Contacts Standard Circular Connector REC SQUARE STD 28-24 Conn Metal Shell CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, STD CPC1, 24WAY Connector;MetalShellCPC;Recept.Assy;24Pos.;Sz.28;Series1;PanelMount Receptacle CPC1 Poles=24, accepts male contacts / with flange, 208459-1, TE Connectivity TE Connectivity 24路 面板安装 直向 连接器 插座 , 公触点 CMC RECPT ASSEMBLY SIZE 28 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 电阻 | None | 额定电压 | :250V |
| 工作电压 | :250V | 通道数量 | 24.0 |
| 最大额定电流 | :13A | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.098 | 包装方式 | Bulk |
| 外壳尺寸 | 28 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点尺寸 | 16 |
| 触头类型 | Pin | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Housing | 紧固类型 | Threaded Coupling |
| 外壳涂层 | Nickel | 安装样式 | Flange with Threaded Inserts |
| 封装形式 | :Zinc Alloy | 连接器样式 | Receptacle |
| 插入角度 | :28-24 | 本体材料 | :Thermoplastic |
| 壳体材料 | Thermoplastic - GF | 主要材料 | CircularPlasticConnector |
| 第一触头极性 | Male | 连接器颜色 | :Nickel |
| 配接方向 | Keyed | 触点数 | 24 |
| 绝缘直径 | 3.81 | 位数 | 0.0 |
| 外壳尺寸-插件 | Metal | 安装孔直径 | 0.145" |
| 外壳材料及表面处理 | Zinc, Nickel Plated | 第一连接器安装类型 | :Panel |
| 第二连接器安装特性 | Standard | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Shell CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 排列方式 | 28-24 | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 产品子类型 | Housings |
| 其他规格 | Without | 应用细节 | Commercial |
环境参数
| 防护等级 | Without | 工作温度 | +125°C |
文档与媒体
相关型号
208945-8
te connectivity / amp

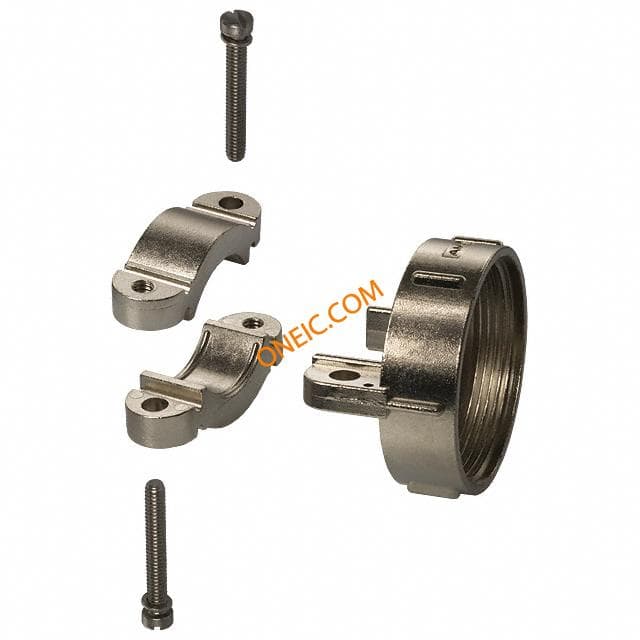

Connector Accessories Clamp Zinc Alloy Nickel Finish Black CPC Accessories CONN CABLE CLAMP SIZE 28 METAL Cable clamp shell,Size 28 Standard Circular Connector CABLE CLAMP SIZE 28 Connector Accessories Clamp Zinc Alloy Nickel Finish Black Product Highlights:Cable ClampShell Size = 28Body Style = StraightCable Diameter (Max.) = 11.43 - 23.83 mmZinc Alloy Cable Clamp MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CABLE CLAMP, CPC, SIZE 28 Clamp,Cable;CPCConnectors;28;0.450in.to0.938in.(Max.) CPC Series 28 Shell Size Black Color Straight Cable Clamp Accessories Cable Clamp Standard,Housing size 28, Size 1-7/16-18, 208945-8, TE Connectivity TE Connectivity 黑色 电缆夹, 19.05mm 捆束直径 SZ 28 UNASSM KIT,CMC
