点击放大查看

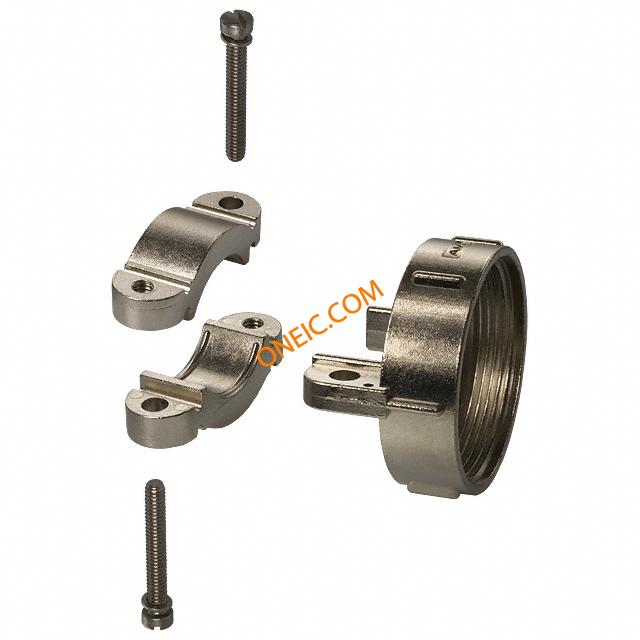

208945-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Clamp Zinc Alloy Nickel Finish Black CPC Accessories CONN CABLE CLAMP SIZE 28 METAL Cable clamp shell,Size 28 Standard Circular Connector CABLE CLAMP SIZE 28 Connector Accessories Clamp Zinc Alloy Nickel Finish Black Product Highlights:Cable ClampShell Size = 28Body Style = StraightCable Diameter (Max.) = 11.43 - 23.83 mmZinc Alloy Cable Clamp MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CABLE CLAMP, CPC, SIZE 28 Clamp,Cable;CPCConnectors;28;0.450in.to0.938in.(Max.) CPC Series 28 Shell Size Black Color Straight Cable Clamp Accessories Cable Clamp Standard,Housing size 28, Size 1-7/16-18, 208945-8, TE Connectivity TE Connectivity 黑色 电缆夹, 19.05mm 捆束直径 SZ 28 UNASSM KIT,CMC |
| 分类 |
商业参数
| 商标名 | CPC Accessories | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
机械参数
| 深度 | 26.19mm | 宽度 | 42.88 mm |
| 长度 | 43.1mm | 重量 | 0.2 |
| 外壳尺寸 | 28 | 螺纹尺寸 | 1 7/16-18 |
| 电缆开口 | 0.450" ~ 0.938" (11.43mm ~ 23.83mm) | 安装类型 | Screw |
| 外壳镀层 | Nickel | 电缆直径 | 11.43 mm to 23.83 mm |
| 壳体镀层 | :Nickel | 外壳材料（壳体） | Zinc |
| 线束直径 | 19.05mm | 总长度 | 26.19 mm |
| 电缆端接方式 | Cable Clamp | 连接器颜色 | Black |
| 外壳尺寸-插件 | 28 | 绝缘材料 - 材质 | :Zinc Alloy |
| 外径-未扩张 | :23.83mm | ||
产品信息
| 类型 | Clamp | 系列 | CPC |
| 产品特性 | Assembly Kit | 产品子类型 | Cable Clamps |
| 射频系列/标准 | 208945 | 适用产品/相关产品 | :CPC Connector |
环境参数
| 工作温度 | :125°C | ||
