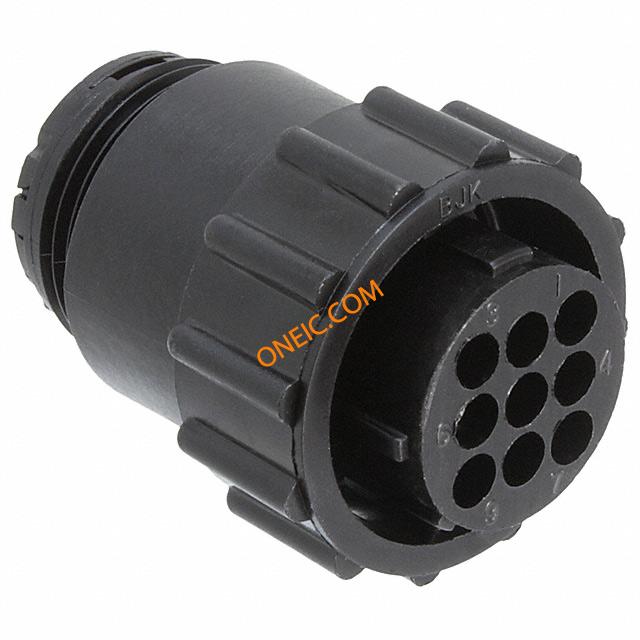

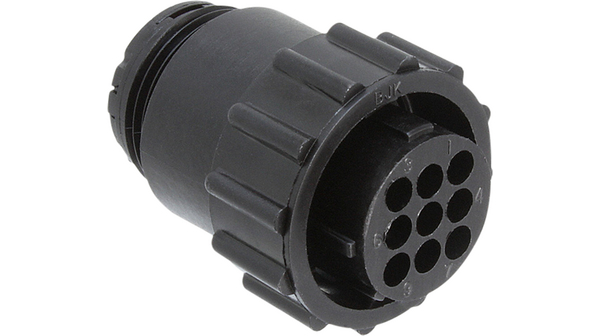

788157-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN PLUG HSNG 9POS FREE HANGING 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 13 with Female Contacts Standard Circular Connector 13-9 CPC PLUG SLD Conn CPC SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIR CONNECTOR PLUG SIZE 13, 9POS FREE HANGING PLUG, 9WAY ConnectorHousing;CPCPlugAssy;9Pos.;Sz.13;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:9 Plug CPC1 Poles=9, accepts female contacts / Free hanging/cable mount / sealed, 788157-2, TE Connectivity TE Connectivity 9路 电缆安装 直向 连接器 插头 , 母触点 SLD CPC PLUG ASSY,13-9,STD SEX |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | UL/CSA/VDE/SAE/ASAE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 600VAC/VDC | 通道数量 | 9 |
机械参数
| 颜色 | Red-Iron Oxide | 深度 | :27.94mm |
| 宽度 | :27.94mm | 长度 | :36.20mm |
| 密封型 | Yes | 重量 | 0.009 |
| 直径 | 27.94 mm | 材料（通用） | Elastomer |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 13 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 3/4 - 20 UNEF-2A | 触点形式 | 9Signal |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug for Female Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 封装形式 | size 13 | 连接器样式 | Plug |
| 插入角度 | :13-9 | 锁定特性 | threaded joint, internal thread |
| 本体材料 | :Nylon (Polyamide) | 磁芯材质 | Nylon |
| 壳体材料 | Nylon | 总长度 | 36.2 mm |
| 包装数量 | 100 | 主要材料 | CircularPlasticConnector |
| 连接器 - 电缆 | plug | 端接样式 | Wire |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 直径 - 环内径 | 27.94 [1.100] | 配接方向 | Keyed |
| 触点数 | 9 | 绝缘直径 | 1.65 â 3.05 [0.065 â 0.120] |
| 位数 | 9 | 外壳尺寸-插件 | All Plastic |
| 外壳材料及表面处理 | Nylon | 第一连接器安装类型 | :Free Hanging |
| 第二连接器安装特性 | Standard | 外径-未扩张 | :3.05mm |
| 外壳尺寸-插入件（转换至） | 13-9 | ||
产品信息
| SPG | 100 | 备注 | Contacts Not Provided |
| 类型 | CPC | 连接器性别 | PL |
| 系列 | Series 1 | 预加载 | No |
| 排列方式 | 13-9 | CAD图纸 | 3D CAD Model |
| 制造商全称 | Series1 | 产品子类型 | Connector |
| 适配器系列 | CPC Series 1 | 单元数量 | 100 |
| 射频系列/标准 | 788157 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Socket Contacts |
环境参数
| 密封等级 | Wire Entry | 防护等级 | IP67 - Dust Tight, Waterproof |
文档与媒体
