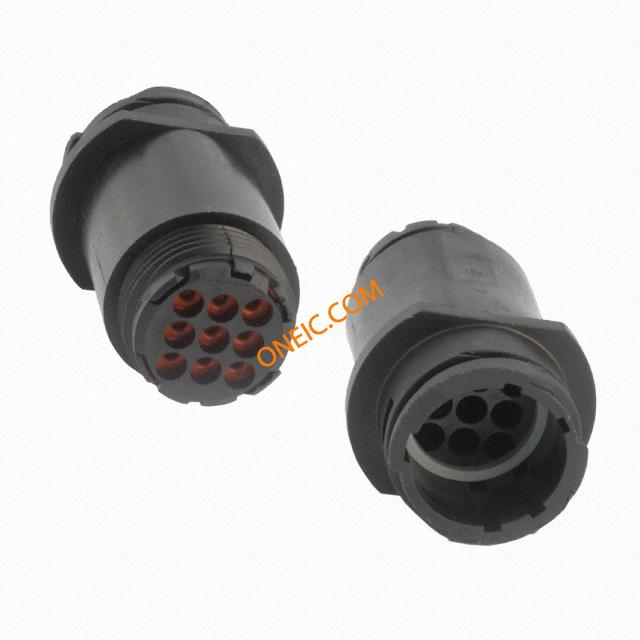

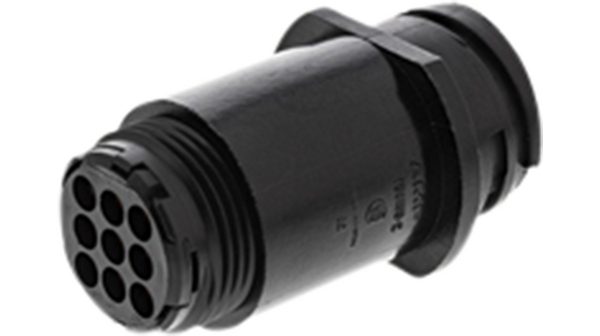

788159-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN RCPT CPC 9POS SIZE 13 BLK 9 Pole Female Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 13 with Male Contacts Standard Circular Connector REC SKT 11-4 F/H SEALED Conn CPC PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCRecept.Assy;9Pos.;Sz13;Series1;FreeHang;StdSex Receptacle CPC1 Poles=9, accepts male contacts / Free hanging/cable mount / sealed, 788159-2, TE Connectivity TE Connectivity 9路 电缆安装 直向 连接器 插座 , 公触点 SLD CPC RCPT ASSY,13-9,STD SEX |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 1 |
| 其他名称 | 7881592 | 子类别 | Connector Circular |
| 零件号别名 | 512-8040 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | UL/CSA/VDE/SAE/ASAE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 600 V ac | 极数 | 9 |
| 防溅等级 | 浸入 | 通道数量 | 9 |
| 连接器类型 - 电压输入 | 标准 | ||
机械参数
| 颜色 | Red-Iron Oxide | 密封型 | Yes |
| 外形尺寸(长x宽) | 13 | 材料（通用） | Elastomer |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 外壳尺寸 | 13 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 螺纹尺寸 | 3/4 - 20 UNEF-2A | 触点尺寸 | 16 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 外壳镀层 | Elastomer |
| 行程角度 | Straight | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 引脚数 | 0 | 外壳材料（壳体） | 母端, 母端 |
| 连接器样式 | Receptacle | 壳体材料 | Nylon |
| 包装数量 | 1 | 主要材料 | CircularPlasticConnector |
| 端接排数 | 压接 | 端接样式 | Wire |
| 第一触头极性 | Male | 连接器颜色 | black |
| 配接方向 | Keyed | 触点数 | 9 |
| 端接表面处理 | 带有 | 绝缘直径 | 1.65 â 3.05 [0.065 â 0.120] |
| 位数 | 9 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 带有 | 外壳材料及表面处理 | Nylon |
| 第二连接器安装特性 | Standard | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 预加载 | No | 排列方式 | 13-9 |
| CAD图纸 | 3D CAD Model | 描述 | With peripheral seal |
| 外设 | Gray | 制造商全称 | Series1 |
| 产品子类型 | Connector | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
环境参数
| 密封等级 | Peripheral, Wire Entry | 工作范围 | 密封 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | +125°C |
文档与媒体
相关型号
788157-2
te connectivity / amp
Conn CPC SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN PLUG HSNG 9POS FREE HANGING 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 13 with Female Contacts Standard Circular Connector 13-9 CPC PLUG SLD Conn CPC SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIR CONNECTOR PLUG SIZE 13, 9POS FREE HANGING PLUG, 9WAY ConnectorHousing;CPCPlugAssy;9Pos.;Sz.13;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:9 Plug CPC1 Poles=9, accepts female contacts / Free hanging/cable mount / sealed, 788157-2, TE Connectivity TE Connectivity 9路 电缆安装 直向 连接器 插头 , 母触点 SLD CPC PLUG ASSY,13-9,STD SEX
