点击放大查看

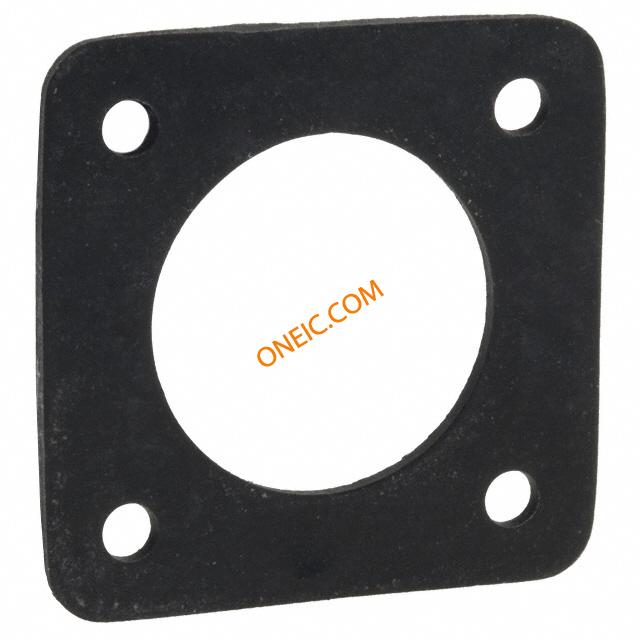

81665-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Flange Seal Neoprene Black Individual CPC Accessories CONN GASKET FLNG SEAL SZ 17 BLK Circular Connector Seal Standard Circular Connector CPC GASKET Connector Accessories Flange Seal Neoprene Black Individual Product Highlights:Flange SealShell Size = 17IndividualSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, FLANGE SEAL, CPC, SIZE 17 Connector;CPC;Neoprene(Flange);17;Black;AMPBrand Seal CPC, size 17, 81665-2, TE Connectivity 连接器封套, 外壳尺寸17, 使用于CPC 插座，带方形法兰 FLANGE GASKET CPC |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :ASAE, NEMA, SAE, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 长度 | 38.1mm |
| 重量 | 0.002 | 材料（通用） | Neoprene |
| 外壳尺寸 | 17 | 电缆颜色 | Black |
| 外壳镀层 | :Neoprene | 连接器类型 | :Gasket, Sealing |
| 外壳材料（壳体） | Plastic | 壳体材料 | Neoprene |
| 包装数量 | Individual | 外壳尺寸-插件 | 17 |
产品信息
| 类型 | Seal | 系列 | CPC |
| 产品特性 | Square | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMPBrand | 产品子类型 | Flange Seal |
| 附件类型 | Flange Gasket | 射频系列/标准 | 81665 |
| 适用产品/相关产品 | CPC Receptacle with Square Flange | ||
环境参数
| 密封等级 | Seal | NEMA 机架尺寸 | :IP65 |
| 工作温度 | :125°C | ||
