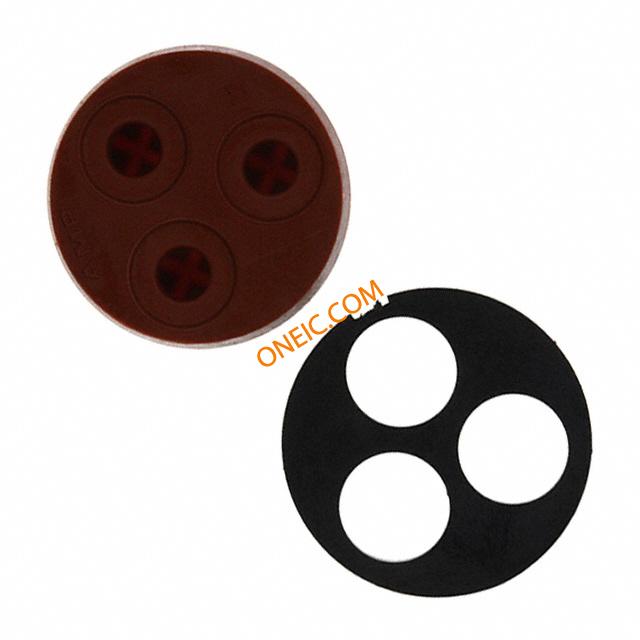

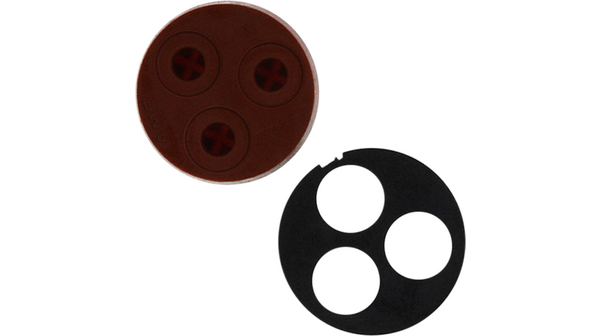

213899-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Seal Kit Nylon Black Individual Standard Circular Connector CPC SEAL ASSY KIT SIZE 17 3 POS CPC Accessories CONN WIRE ENTRY SEAL KIT SZ 17-3 CPC series 5 wire entry seal Connector Accessories Seal Kit Nylon Black Individual Product Highlights:Wire Entry Seal KitShell Size = 17Number of Positions = 3IndividualSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, S CPCseries5wireentryseal Seal Assembly Kit,Housing size 17-3, Size 15/16-20, 213899-1, TE Connectivity TE Connectivity 电线密封 CPC SEAL ASSY KIT,SRS 5,17-3 |
| 分类 |
商业参数
| 商标名 | CPC Series 5 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 重量 | 0.003 |
| 材料（通用） | Silicon | 包装方式 | Bulk |
| 外壳尺寸 | 17 | 螺纹尺寸 | 15/16-20 |
| 外壳镀层 | :Silicone | 连接器类型 | :Gasket, Sealing |
| 压力（PSI） | Black | 探针材料 | Nylon |
| 包装数量 | Individual | 主要材料 | ConnectorWireInterfaceSeal |
| 配接方向 | Threaded | 触点数 | 3 |
| 绝缘直径 | 3.81 â 6.73 [0.150 â 0.265] | 位数 | 3 |
| 外壳尺寸-插件 | 17-3 | 外径-未扩张 | :20.07mm |
产品信息

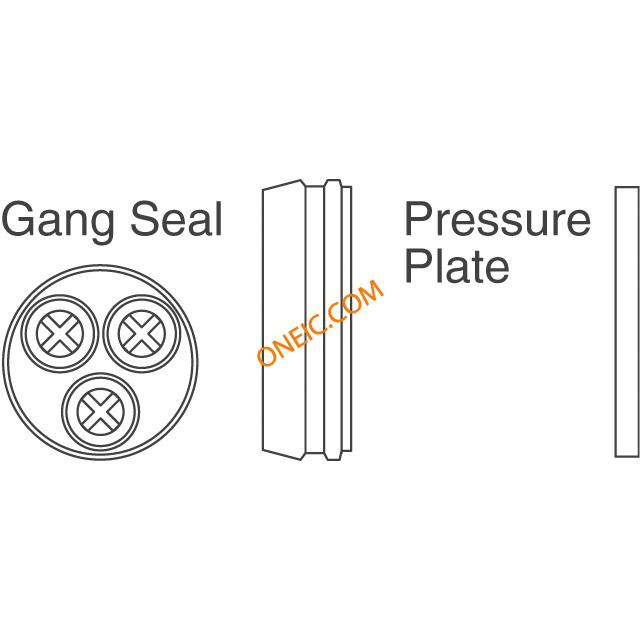

| 备注 | Kit includes (1) Silicon Wire Entry Seal and (1) Pressure Plate.; Requires Cabl | 类型 | Seal |
| 系列 | CPC | 产品特性 | Pressure Plate Included |
| 制造商全称 | Series5 | 产品子类型 | Accessories |
| 附件类型 | Wire Entry Seal Kit | 射频系列/标准 | 213899 |
| 适用产品/相关产品 | CPC Plug and Receptacle Housing | ||
环境参数
| 工作温度 | :125°C | ||
