点击放大查看

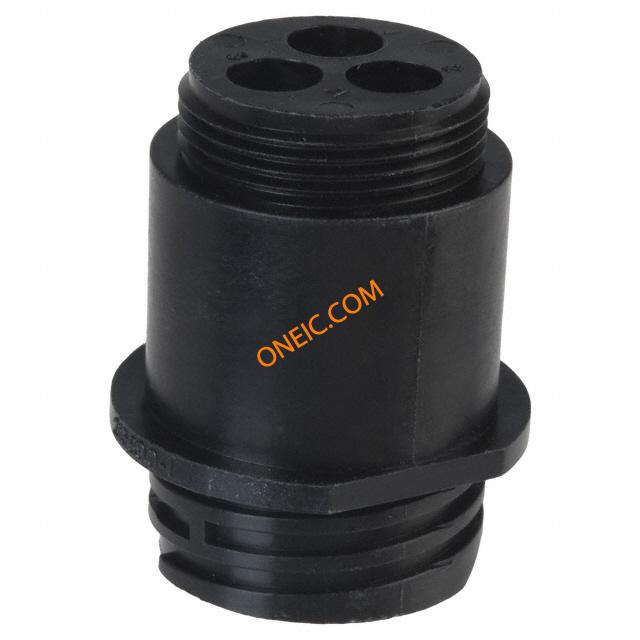

213890-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Sealed CPC SKT 3 POS ST Cable Mount 3 Terminal 1 Port CPC Connectors CONN RECEPT CPC 3POS REV SER 5 Standard Circular Connector RECPT REV F.H. 17-3 Conn Sealed CPC SKT 3 POS ST Cable Mount 3Terminal 1Port Conn Sealed CPC SKT 3 POS ST Cable Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;3Pos.;Sz.17;Series5;FreeHang;RevSex CPC RECPT SEALED SIZE 17-3 |
| 分类 |
商业参数
| 商标名 | CPC Series 5 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | UL/CSA/VDE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600VAC/VDC | 防溅等级 | 浸入 |
| 通道数量 | 0 | 连接器类型 - 电压输入 | 反向 |
机械参数
| 颜色 | Black | 密封型 | Yes |
| 外形尺寸(长x宽) | 17 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 外壳尺寸 | 17 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 螺纹尺寸 | 15/16-20 UNEF-2A | 触点尺寸 | 3 Power |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 外壳镀层 | Elastomer |
| 行程角度 | Straight | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 引脚数 | 3 | 外壳材料（壳体） | 母端, 母端 |
| 连接器样式 | Receptacle | 壳体材料 | Thermoplastic |
| 包装数量 | 100 | 主要材料 | CircularPlasticConnector |
| 端接样式 | Wire | 第一触头极性 | Socket |
| 配接方向 | Keyed | 触点数 | 3 |
| 端接表面处理 | 带有 | 绝缘直径 | 3.81 â 6.73 [0.150 â 0.265] |
| 位数 | 3 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 带有 | 外壳材料及表面处理 | Nylon |
| 第二连接器安装特性 | Reverse | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Sealed CPC |
| 连接器性别 | RCP | 系列 | Series 5 |
| 产品特性 | ReverseGender | 预加载 | No |
| 外设 | Gray | 制造商全称 | Series5 |
| 产品子类型 | Connector | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Socket Contacts |
环境参数
| 密封等级 | Peripheral | 工作范围 | 密封 |
| 防护等级 | IP67 - Dust Tight, Waterproof | ||
文档与媒体
相关型号
213843-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Standard Circular Contacts SOCKET CONTACT 8-10 Multimate CONN SOCKET 8-10AWG GOLD CRIMP AuPt power socket contact,8-10awg Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) Contact Mating Area PlatingWire Range = 5.00-8.00² [10-8] mm [AWG]Copper Contact MaterialGold Flash Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts PWRBANDSKTCNTASSY,8-10-L.P. TE Connectivity Multimate 系列 1 路 母座 电源插座触点 , 适用于AMP 圆形塑料连接器系列 5 和 6 PWRBAND SKT CNT ASSY,8-10,L.P.

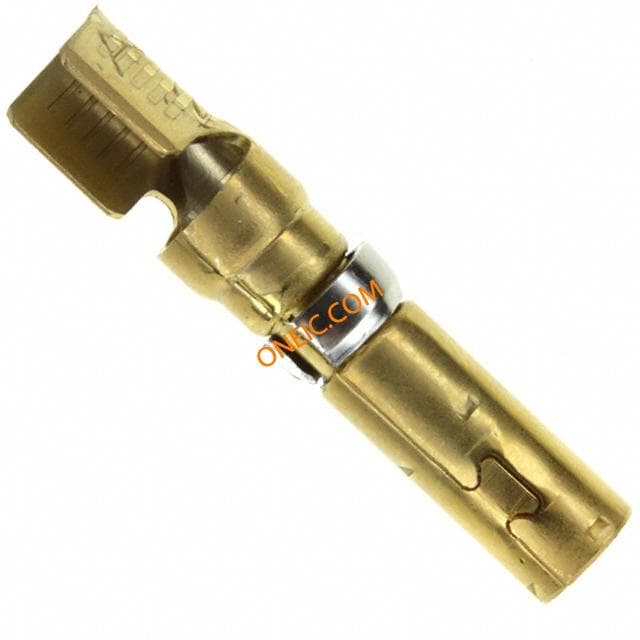

213847-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 12-14AWG GOLD CRIMP AuPt power socket contact,12-14awg Standard Circular Contacts SOCKET CONTACT 12-14 gold Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) Contact Mating Area PlatingWire Range = 2.00-3.00² [14-12] mm [AWG]Copper Contact MaterialGold Flash Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP SOCKET, 12-14AWG PWRBNDSOCASY,14-12,L.P. TE Connectivity 1 路 母座 电源插座触点 PWRBND SOC ASY,14-12,L.P.
213905-1
te connectivity / amp
Conn Sealed CPC PIN 3 POS ST Cable Mount 3 Terminal 1 Port CPC Connectors CONN PLUG CPC 3POS REV SER 5 3 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector PLUG REVERSE 17-3 Conn Sealed CPC PIN 3 POS ST Cable Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, REV, CPC5, 3WAY CIR CONNECTOR PLUG SIZE 17, 3POS FREE HANGING ConnectorHousing;CPCPlugAssy;3Pos.;Sz.17;Series5;FreeHang;RevSex Plug CPC5 Poles=3, accepts male contacts / Free hanging/cable mount, 213905-1, TE Connectivity TE Connectivity 3路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSY,SERIES 5,SZ 17-3

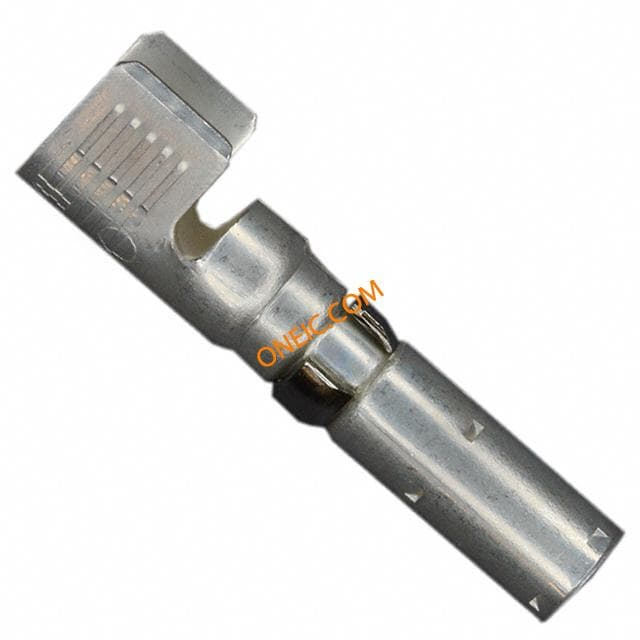

213843-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 8-10AWG CRIMP SILVER AgPt power socket contact,8-10awg Standard Circular Contacts SOCKET CONTACT 8-10 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketSilver Contact Mating Area PlatingWire Range = 5.00-8.00² [10-8] mm [AWG]Copper Contact MaterialSilver Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP SOCKET, 8-10AWG POWERBANDCONTASSY,SILVERPLT Crimp Contact 50 A, 213843-3, TE Connectivity TE Connectivity 125 Powerband Contact 系列 1 路 母座 电源插座触点 , 适用于AMP 圆形塑料连接器系列 5 和 6 POWERBAND CONT ASSY,SILVER PLT
213889-2
te connectivity / amp
Conn Sealed CPC SKT 3 POS ST Panel Mount 3 Terminal 1 Port CPC Connectors CONN RECEPT CPC 3POS REV SER 5 3 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 17 with Female Contacts Standard Circular Connector RECP SQUARE REV 17-3 Conn Sealed CPC SKT 3 POS ST Panel Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, REV CPC5, 3WAY ConnectorHousing;CPCReceptacle;3Pos;Sz.17;Series5;PanelMount;RevSex Receptacle CPC5 Poles=3, accepts female contacts / with flange / sealed, 213889-2, TE Connectivity TE Connectivity 3路 面板安装 直向 连接器 插座 , 母触点 CPC RECPT SEALED,SIZE 17-3
213843-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors SKT 10-8 AWG CU/AG POWERBAND Multimate CONTACT SKT 8-10AWG CRIMP SILVER Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketSilver Contact Mating Area Plating MaterialWire Range = 5.00-8.00² [10-8] mm [AWG]Copper Contact MaterialSilver Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts POWERBAND CONT ASSY,SILVER PLT
213843-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors POWERBAND SCKT 8-10 Multimate CONN SOCKET 8-10AWG CRIMP GOLD POWERBAND SKT ASY,8-10,STRIP
81665-2
te connectivity / amp
Connector Accessories Flange Seal Neoprene Black Individual CPC Accessories CONN GASKET FLNG SEAL SZ 17 BLK Circular Connector Seal Standard Circular Connector CPC GASKET Connector Accessories Flange Seal Neoprene Black Individual Product Highlights:Flange SealShell Size = 17IndividualSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, FLANGE SEAL, CPC, SIZE 17 Connector;CPC;Neoprene(Flange);17;Black;AMPBrand Seal CPC, size 17, 81665-2, TE Connectivity 连接器封套, 外壳尺寸17, 使用于CPC 插座，带方形法兰 FLANGE GASKET CPC

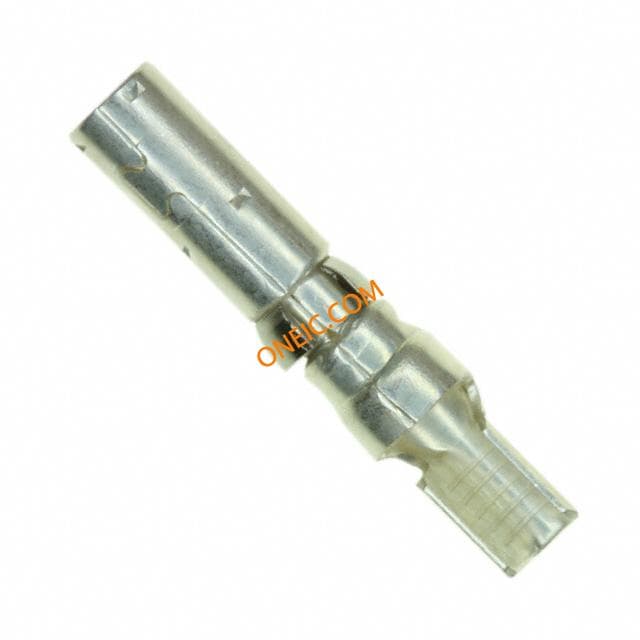

213847-3
