点击放大查看

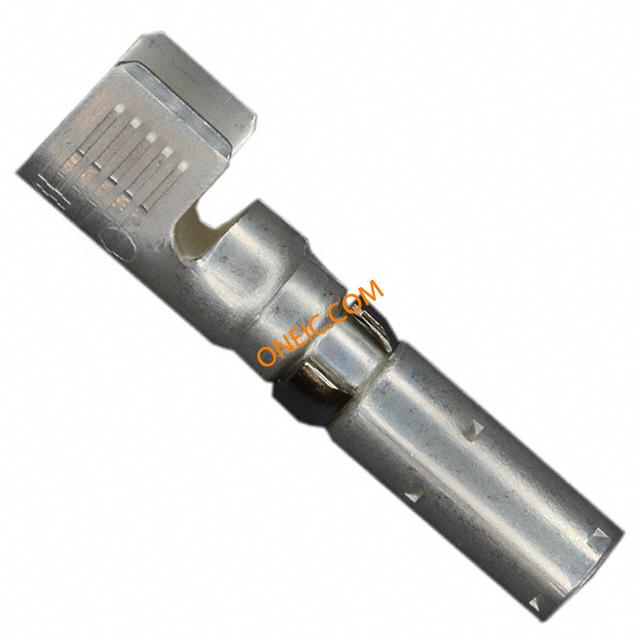

213843-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors SKT 10-8 AWG CU/AG POWERBAND Multimate CONTACT SKT 8-10AWG CRIMP SILVER Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketSilver Contact Mating Area Plating MaterialWire Range = 5.00-8.00² [10-8] mm [AWG]Copper Contact MaterialSilver Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts POWERBAND CONT ASSY,SILVER PLT |
| 分类 |
商业参数
| 商标名 | Multimate | 其他名称 | A105449CT |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 输出电流 | 50 | ||
机械参数
| 镀层 | Silver | 材料（通用） | Copper |
| 包装方式 | Reel | 导线线规 | 8-10 AWG |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 端子尺寸 | 8 | 连接器类型 | 电线和电缆 |
| 接触镀层 | Silver over Nickel | 安装样式 | Wire |
| 插入件材料 | 铜 | 触头材料 | Copper Alloy |
| 包装数量 | 1500 | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 镀层厚度（通用） | 50µin (1.27µm) | 接触件表面处理 - 配合 | 银 |
| 线规或范围 - AWG | 10-8 | ||
产品信息
| 类型 | Power | 系列 | Metrimate |
| 产品子类型 | Contacts | 应用细节 | Power |
相关型号
796330-1
te connectivity / amp
Conn CPC SKT 16 POS Crimp ST Cable Mount 16 Terminal 1 Port Standard Circular Connector SLD CPC RCPT ASSY,23-16,REV SX CPC Connectors CONN RCPT CPC 16POS FREE HANGING Conn CPC SKT 16 POS Crimp ST Cable Mount 16 Terminal 1 Port Product Highlights:HousingHousing Type = Receptacle16 Positions12 Signal Positions4 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC SLD CPC RCPT ASSY,23-16,REV SX

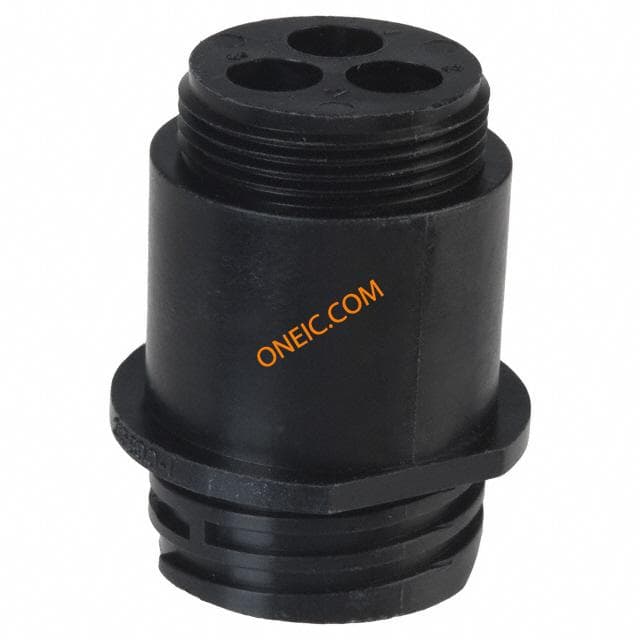

213890-2
te connectivity / amp
Conn Sealed CPC SKT 3 POS ST Cable Mount 3 Terminal 1 Port CPC Connectors CONN RECEPT CPC 3POS REV SER 5 Standard Circular Connector RECPT REV F.H. 17-3 Conn Sealed CPC SKT 3 POS ST Cable Mount 3Terminal 1Port Conn Sealed CPC SKT 3 POS ST Cable Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;3Pos.;Sz.17;Series5;FreeHang;RevSex CPC RECPT SEALED SIZE 17-3

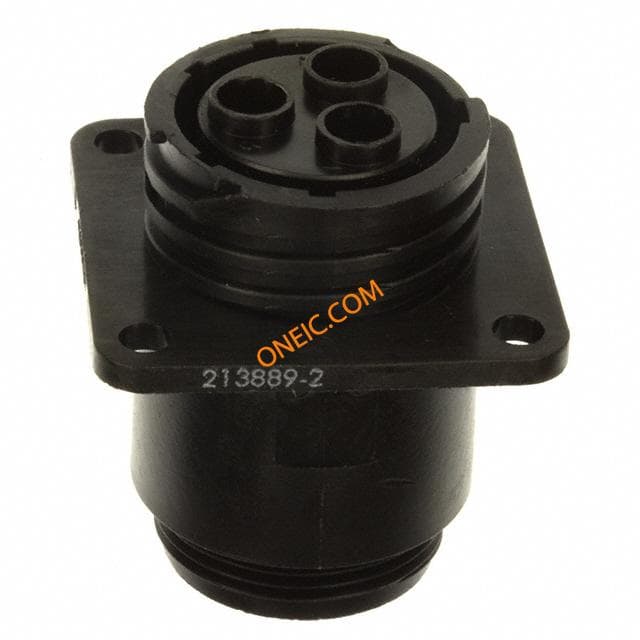

213889-2
te connectivity / amp
Conn Sealed CPC SKT 3 POS ST Panel Mount 3 Terminal 1 Port CPC Connectors CONN RECEPT CPC 3POS REV SER 5 3 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 17 with Female Contacts Standard Circular Connector RECP SQUARE REV 17-3 Conn Sealed CPC SKT 3 POS ST Panel Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, REV CPC5, 3WAY ConnectorHousing;CPCReceptacle;3Pos;Sz.17;Series5;PanelMount;RevSex Receptacle CPC5 Poles=3, accepts female contacts / with flange / sealed, 213889-2, TE Connectivity TE Connectivity 3路 面板安装 直向 连接器 插座 , 母触点 CPC RECPT SEALED,SIZE 17-3

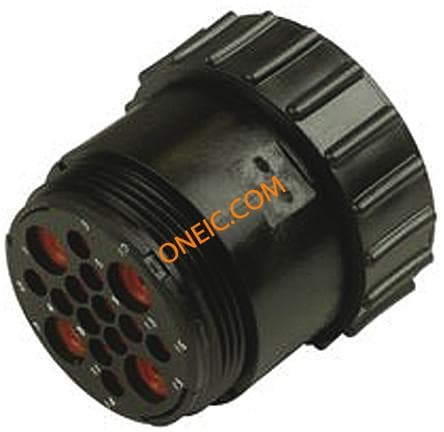

796203-1
te connectivity / amp
Conn CPC SKT 16 POS Crimp ST Cable Mount 16 Terminal 1 Port CPC Connectors CONN PLUG CPC HSING 23-16 STD ConnectorHousing,CPCPlugAssy,16Pos. Standard Circular Connector PLUG 23-16 STD SX Conn CPC SKT 16 POS Crimp ST Cable Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCPlugAssy;16Pos.;Sz.23;Series6;FreeHang;StdSex SLD CPC PLUG ASSY,23-16,STD SX
213893-2
te connectivity / amp
Conn Sealed CPC SKT 10 POS ST Panel Mount 10 Terminal 1 Port CPC Connectors CONN RECEPT CPC 10POS REV SER 6 10 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 17 with Female Contacts Standard Circular Connector RECP SQRE REV 17-10 Conn Sealed CPC SKT 10 POS ST Panel Mount 10 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 10ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, REV CPC6, 10WAY ConnectorHousing;CPCReceptacle;10Pos.;Sz.17;Series6;PanelMnt;RevSex Receptacle CPC6 Poles=10, accepts female contacts / with flange / sealed, 213893-2, TE Connectivity TE Connectivity 10路 面板安装 直向 连接器 插座 CPC RECPT SEALED SIZE 17-10

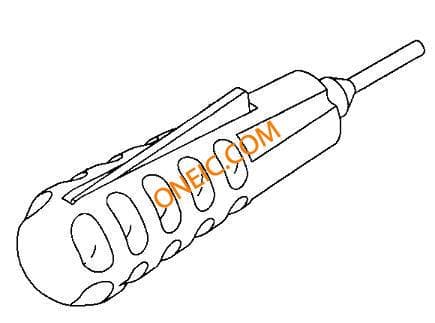

318813-1
