点击放大查看

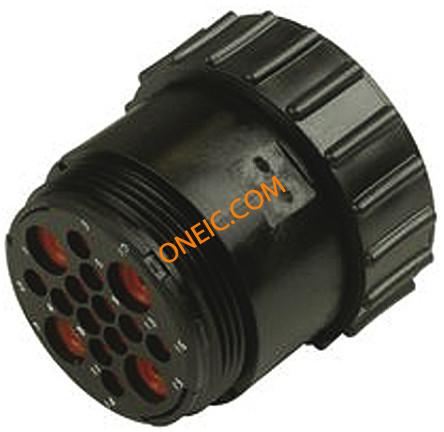

796203-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 16 POS Crimp ST Cable Mount 16 Terminal 1 Port CPC Connectors CONN PLUG CPC HSING 23-16 STD ConnectorHousing,CPCPlugAssy,16Pos. Standard Circular Connector PLUG 23-16 STD SX Conn CPC SKT 16 POS Crimp ST Cable Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCPlugAssy;16Pos.;Sz.23;Series6;FreeHang;StdSex SLD CPC PLUG ASSY,23-16,STD SX |
| 分类 |
商业参数
| 商标名 | CPC Series 6 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 否 | ||
电气参数
| 额定电压 | 250 V ac/dc | 防溅等级 | 浸入 |
| 通道数量 | 12 | 连接器类型 - 电压输入 | 标准 |
机械参数
| 颜色 | Red-Iron Oxide | 密封型 | Yes |
| 外形尺寸(长x宽) | 23 | 直径 | 45.29 mm |
| 材料（通用） | Elastomer | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 出线方向 | No |
| 外壳尺寸 | 23 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点形式 | 4Power/12Signal |
| 触点尺寸 | 16 (12), 4 Power | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 引脚数 | 4 |
| 外壳材料（壳体） | 插头 | 连接器样式 | Plug |
| 连接器用途 | Threaded | 磁芯材质 | Polyester |
| 壳体材料 | Nylon | 总长度 | 42.75 mm |
| 包装数量 | 20 | 端接样式 | Wire |
| 第一触头极性 | Male | 直径 - 环内径 | 45.29 [1.783] |
| 配接方向 | Keyed | 触点数 | 16 |
| 端接表面处理 | 带有 | 位数 | 16 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 带有 |
| 外壳材料及表面处理 | Nylon | 第二连接器安装特性 | Standard |
| 外壳尺寸-插入件（转换至） | 23-16 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | Series 6 |
| 预加载 | No | 产品子类型 | Connector |
| 射频系列/标准 | 796203 | 其他规格 | Without |
| 适用产品/相关产品 | Socket Contacts | ||
环境参数
| 密封等级 | Wire Entry | 工作范围 | 密封 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -50C to 125C |
