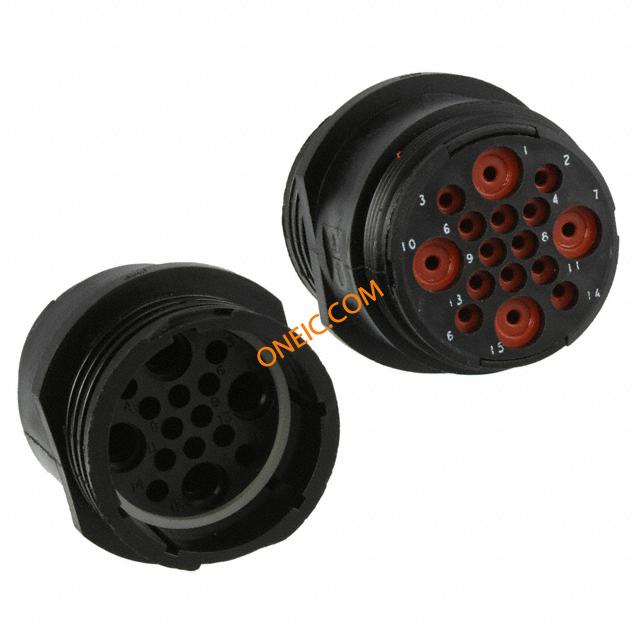

796207-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 16 POS ST Cable Mount 16 Terminal 1 Port CPC Connectors CONN RCPT CPC 16POS SIZE 23 BLK Standard Circular Connector RCPT 23-16 STD SX Conn CPC PIN 16 POS ST Cable Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC SLD CPC RCPT ASSY,23-16,STD SX |
| 分类 |
商业参数
| 商标名 | CPC Series 6 | 其他名称 | 7962071 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 否 |
电气参数
| 防溅等级 | 浸入 | 通道数量 | 12 |
| 连接器类型 - 电压输入 | 标准 | ||
机械参数
| 颜色 | Red-Iron Oxide | 密封型 | Yes |
| 外形尺寸(长x宽) | 23 | 材料（通用） | Elastomer |
| 包装方式 | Tray | 壳体颜色 | 黑色 |
| 外壳尺寸 | 23 | 方向 | Keyed |
| 外壳样式 | Receptacle | 螺纹尺寸 | 1-3/8 - 18 UNEF-2A |
| 触点尺寸 | 16 (12), 4 Power | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 外壳镀层 | Polyester | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 引脚数 | 4 | 外壳材料（壳体） | 母端, 母端 |
| 连接器样式 | Receptacle | 壳体材料 | Nylon |
| 包装数量 | 20 | 端接样式 | Wire |
| 第一触头极性 | Pin | 配接方向 | Keyed |
| 触点数 | 16 | 端接表面处理 | 带有 |
| 位数 | 16 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 带有 | 外壳材料及表面处理 | Nylon |
| 第二连接器安装特性 | Standard | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 6 |
| 预加载 | No | 外设 | Black |
| 产品子类型 | Connector | 其他规格 | Without |
| 适用产品/相关产品 | Pin Contacts | ||
环境参数
| 密封等级 | Peripheral, Wire Entry | 工作范围 | 密封 |
| 防护等级 | IP67 - Dust Tight, Waterproof | ||
