点击放大查看

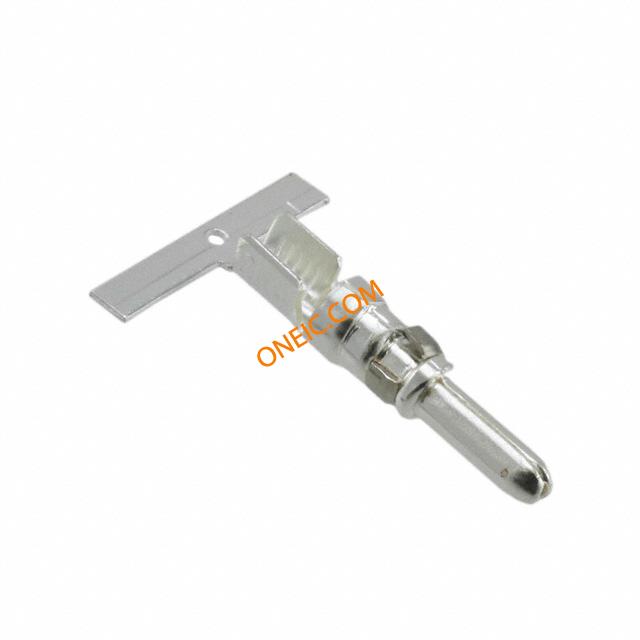

213845-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Multimate PIN POWERBAND 12-14AWG AG CRIMP Pin & Socket Connectors CONN PIN 14-12 AWG Multimate Product Highlights:Contact Type = PinContact Classification = Power.125 POWERBAND Contact SeriesSilver Contact Plating, Mating Area, MaterialWire Range = 2.00-3.00² [14-12] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts POWERBAND CONT ASSY,SILVER PLT |
| 分类 |
商业参数
| 商标名 | Multimate | 标准包装规格 | 1,500 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 输出电流 | 50 | 最大额定电流 | 50 A |
机械参数
| 镀层 | Silver | 材料（通用） | Copper |
| 包装方式 | Tape & Reel (TR) | 导线线规 | 12-14 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 插针或插孔 | Pin | 端子尺寸 | 8 |
| 连接器类型 | Connector Power | 接触镀层 | Silver |
| 插入件材料 | 铜 | 触头材料 | Copper |
| 包装数量 | 1500 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 接触件端接 | Crimp |
| 镀层厚度（通用） | 200µin (5.08µm) | 兼容外壳尺寸（如TM-700等） | CPC 连接器 |
| 接触件表面处理 - 配合 | 银 | 线规或范围 - AWG | 14-12 |
产品信息
| 备注 | 仅适用于 Metrimate 抽屉连接器。 | 类型 | Power |
| 连接器性别 | PIN | 系列 | Multimate Powerband |
| 产品子类型 | Receptacle Housings | 应用细节 | Power |
