213905-1
| 制造商 | TE Connectivity Ltd. |

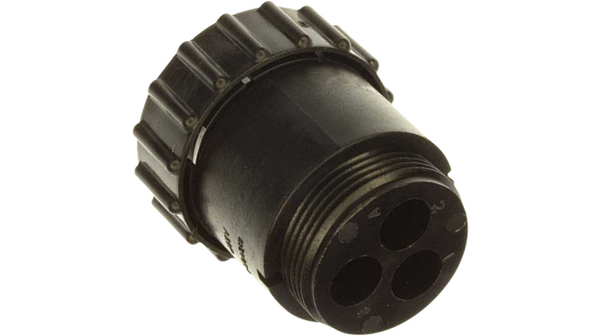

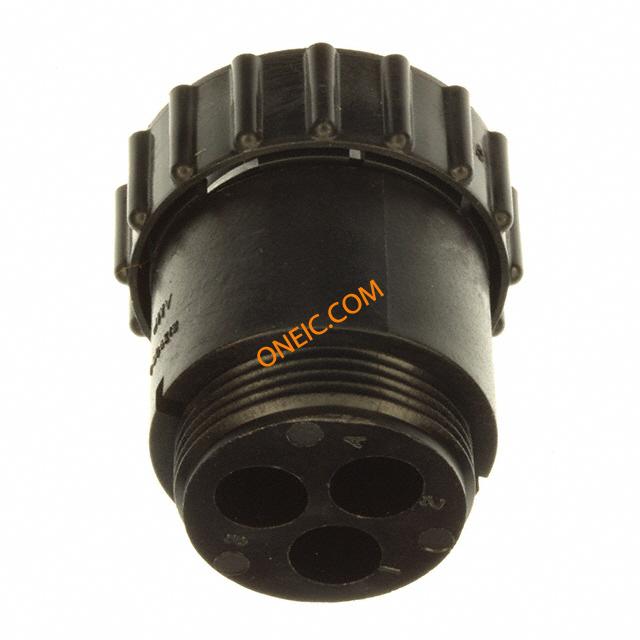

| 描述 | Conn Sealed CPC PIN 3 POS ST Cable Mount 3 Terminal 1 Port CPC Connectors CONN PLUG CPC 3POS REV SER 5 3 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector PLUG REVERSE 17-3 Conn Sealed CPC PIN 3 POS ST Cable Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, REV, CPC5, 3WAY CIR CONNECTOR PLUG SIZE 17, 3POS FREE HANGING ConnectorHousing;CPCPlugAssy;3Pos.;Sz.17;Series5;FreeHang;RevSex Plug CPC5 Poles=3, accepts male contacts / Free hanging/cable mount, 213905-1, TE Connectivity TE Connectivity 3路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSY,SERIES 5,SZ 17-3 |
| 分类 |
商业参数
| 商标名 | CPC Series 5 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | UL/CSA/VDE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | :600V | 串行接口 | Elastomer |
| 工作电压 | :250V | 通道数量 | 0 |
机械参数
| 颜色 | Black | 密封型 | Yes |
| 重量 | 0.02 | 直径 | 34.26 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 17 | 方向 | Keyed |
| 外壳样式 | Plug | 螺纹尺寸 | 15/16-20 UNEF-2A |
| 触点形式 | 3Signal | 触点尺寸 | 3 Power |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug for Male Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 连接器样式 | Plug |
| 插入角度 | :17-3 | 本体材料 | :Nylon (Polyamide) |
| 磁芯材质 | Polyester | 壳体材料 | Nylon 6/6 GF |
| 总长度 | 40.87 mm | 主要材料 | CircularPlasticConnector |
| 端接样式 | Wire | 第一触头极性 | Male |
| 连接器颜色 | :Black | 直径 - 环内径 | 34.26 [1.349] |
| 配接方向 | Keyed | 触点数 | 3 |
| 绝缘直径 | 3.81 â 6.73 [0.150 â 0.265] | 位数 | 3 |
| 外壳尺寸-插件 | All Plastic | 外壳材料及表面处理 | Nylon |
| 第一连接器安装类型 | :Cable | 第二连接器安装特性 | Reverse |
| 外壳尺寸-插入件（转换至） | 17-3 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Sealed CPC |
| 连接器性别 | PL | 系列 | Series 5 |
| 产品特性 | ReverseGender | 预加载 | No |
| CAD图纸 | 3D CAD Model | 制造商全称 | Series5 |
| 产品子类型 | Connector | 射频系列/标准 | 213905 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Pin Contacts | ||
环境参数
| 密封等级 | Interfacial | NEMA 机架尺寸 | :IP65 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | :125°C |
相关型号
213845-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate PIN POWERBAND 12-14AWG AG CRIMP TE Connectivity Silver over Nickel Plated Crimp Pin Connector Standard Circular Contacts PIN CONTACT 12-14AWG silver Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 2.00-3.00² [14-12] mm [AWG]Copper Contact MaterialSilver Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, SILVER, 12-14AWG POWERBANDCONTASSY,SILVERPLT Multimate 0.125 POWERBAND 14-12 AWG Insulation Support Crimp Pin Contact Crimp Contact 50 A, 213845-3, TE Connectivity TE Connectivity .125 POWERBAND Contact 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器, 14 12 AWG 线规格 POWERBAND CONT ASSY,SILVER PLT
213890-2
te connectivity / amp
Conn Sealed CPC SKT 3 POS ST Cable Mount 3 Terminal 1 Port CPC Connectors CONN RECEPT CPC 3POS REV SER 5 Standard Circular Connector RECPT REV F.H. 17-3 Conn Sealed CPC SKT 3 POS ST Cable Mount 3Terminal 1Port Conn Sealed CPC SKT 3 POS ST Cable Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;3Pos.;Sz.17;Series5;FreeHang;RevSex CPC RECPT SEALED SIZE 17-3
213841-1
te connectivity / amp

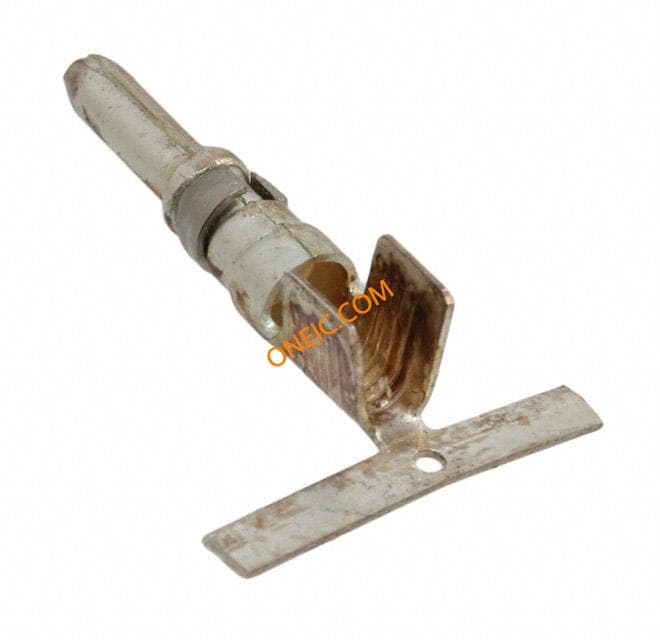

Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN PWRBND 8-10AWG AG CRIMP CONN PIN 8-10AWG CRIMP SILVER Standard Circular Contacts PIN 10-8 AWG CU/AG Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinSilver Contact Mating Area Plating MaterialWire Range = 5.00-8.00² [10-8] mm [AWG]Copper Contact Base MaterialSilver Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Multimate Power Pin POWERBAND CONT ASSY,SILVER PLT
213889-2
te connectivity / amp
Conn Sealed CPC SKT 3 POS ST Panel Mount 3 Terminal 1 Port CPC Connectors CONN RECEPT CPC 3POS REV SER 5 3 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 17 with Female Contacts Standard Circular Connector RECP SQUARE REV 17-3 Conn Sealed CPC SKT 3 POS ST Panel Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, REV CPC5, 3WAY ConnectorHousing;CPCReceptacle;3Pos;Sz.17;Series5;PanelMount;RevSex Receptacle CPC5 Poles=3, accepts female contacts / with flange / sealed, 213889-2, TE Connectivity TE Connectivity 3路 面板安装 直向 连接器 插座 , 母触点 CPC RECPT SEALED,SIZE 17-3
213841-4
te connectivity / amp

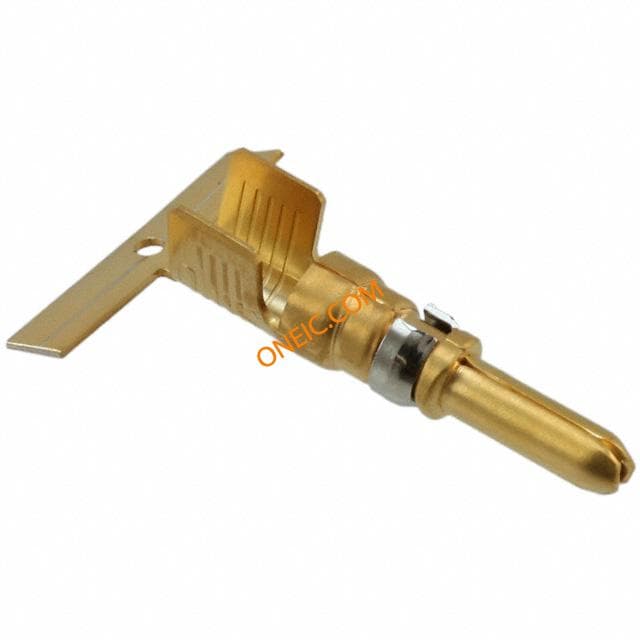

Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN PWRBND 8-10AWG AU CRIMP TE Connectivity Gold over Nickel Plated Crimp Pin Connector Standard Circular Connector PIN CONTACT 10-8AWG gold Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) Contact Mating Area PlatingWire Range = 5.00-8.00² [10-8] mm [AWG]Copper Contact MaterialGold Flash Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, GOLD, 8-10AWG PWRBANDPINCNTASSY,8-10,L.P. TE Connectivity 公 压接端接 圆形 连接器 触芯, 使用于.125 POWERBAND 触点系列连接器 PWRBAND PIN CNT ASSY,8-10,L.P.
213841-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Circular Contacts POWERBAND PIN 10-8 Multimate CONTACT PIN PWRBND 8-10AWG CRIMP Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) Contact Mating Area Plating MaterialWire Range = 5.00-8.00² [10-8] mm [AWG]Copper Contact MaterialGold Flash Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts POWERBAND PIN CNT
213845-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONTACT PIN PWRBND 12-14AWG CRMP Pin & Socket Connectors PIN 14-12 AWG CU/AG Multimate Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 2.00-3.00² [14-12] mm [AWG]Copper Contact MaterialSilver Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts POWERBAND CONT ASSY,SILVER PLT
81665-2
te connectivity / amp

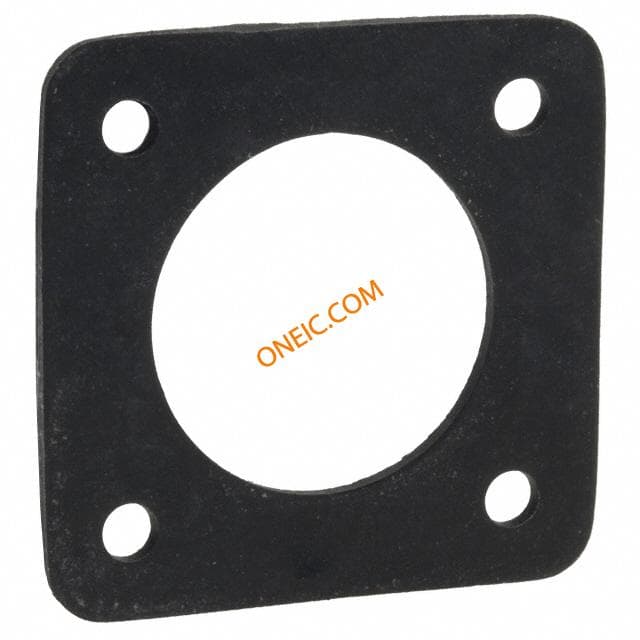

Connector Accessories Flange Seal Neoprene Black Individual CPC Accessories CONN GASKET FLNG SEAL SZ 17 BLK Circular Connector Seal Standard Circular Connector CPC GASKET Connector Accessories Flange Seal Neoprene Black Individual Product Highlights:Flange SealShell Size = 17IndividualSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, FLANGE SEAL, CPC, SIZE 17 Connector;CPC;Neoprene(Flange);17;Black;AMPBrand Seal CPC, size 17, 81665-2, TE Connectivity 连接器封套, 外壳尺寸17, 使用于CPC 插座，带方形法兰 FLANGE GASKET CPC
