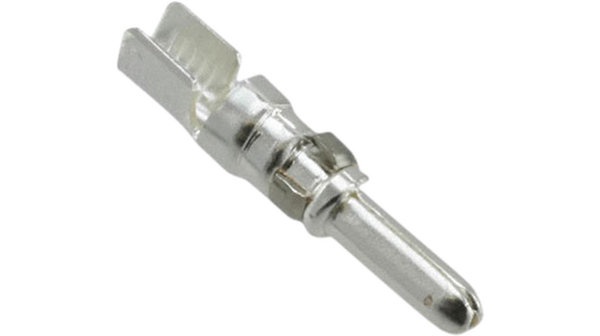

点击放大查看
213845-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Multimate PIN POWERBAND 12-14AWG AG CRIMP Pin & Socket Connectors CONN PIN 14-12 AWG Multimate Product Highlights:Contact Type = PinContact Classification = Power.125 POWERBAND Contact SeriesSilver Contact Plating, Mating Area, MaterialWire Range = 2.00-3.00² [14-12] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Crimp Contact 50 A, 213845-7, TE Connectivity |
| 分类 |
商业参数
| 商标名 | Multimate | 标准包装规格 | 100 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 50 A | ||
机械参数
| 镀层 | Silver | 材料（通用） | Copper |
| 包装方式 | Bulk | 导线线规 | 12-14 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 插针或插孔 | Pin | 连接器类型 | Connector Circular |
| 接触镀层 | Silver Over Nickel | 触头材料 | Copper |
| 接触件端接 | Crimp | 镀层厚度（通用） | 200µin (5.08µm) |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | Multimate Powerband | 产品子类型 | Receptacle Housings |
| 总线连接 | 2 | ||
