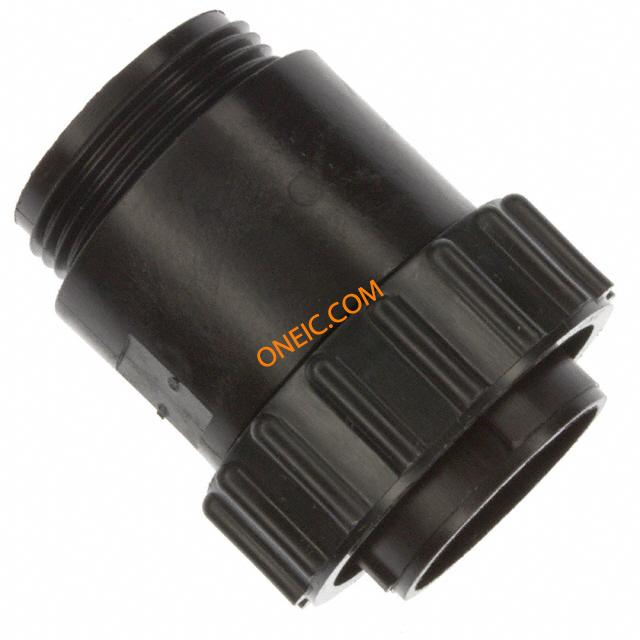

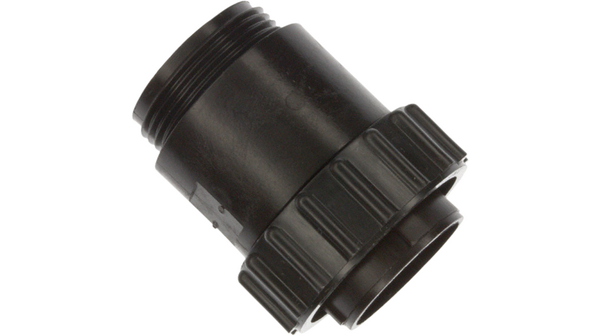

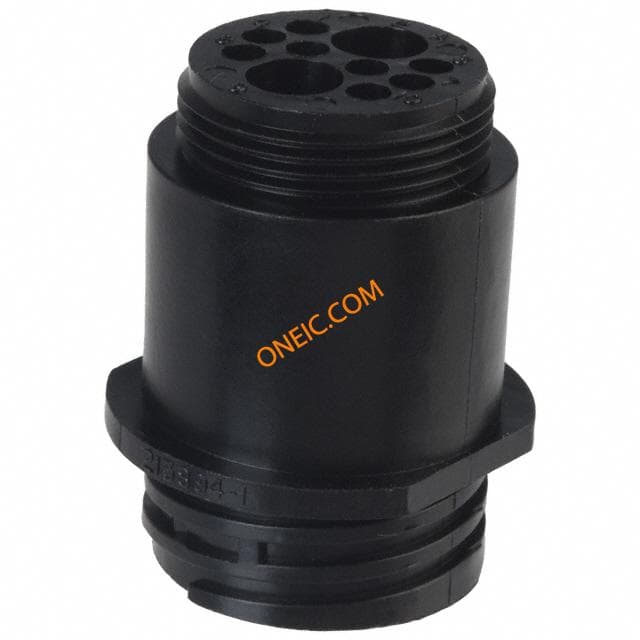

213906-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Sealed CPC PIN 10 POS ST Cable Mount 10 Terminal 1 Port CPC Connectors CONN PLUG CPC 10POS REV SER 6 10 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector PLUG REVERSE 17-10 Conn Sealed CPC PIN 10 POS ST Cable Mount 10 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 10PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, REV CPC6, 10WAY ConnectorHousing;CPCPlugAssy;10Pos.;Sz.17;Series6;FreeHang;RevSex Plug CPC6 Poles=10, accepts male contacts / Free hanging/cable mount, 213906-1, TE Connectivity TE Connectivity 10路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSY,SRS 6,SZ 17-10 |
| 分类 |
商业参数
| 商标名 | CPC Series 6 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :ASAE, NEMA, SAE, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | :250V | 串行接口 | Elastomer |
| 工作电压 | :250V | 通道数量 | 8 |
| 最大额定电流 | :45A | ||
机械参数
| 颜色 | Black | 密封型 | Yes |
| 重量 | 0.018 | 直径 | 34.26 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 17 | 方向 | Keyed |
| 外壳样式 | Plug | 螺纹尺寸 | 15/16-20 UNEF-2A |
| 触点形式 | 2Power/8Signal | 触点尺寸 | 16 (8), 2 Power |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug for Male Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 连接器样式 | Plug |
| 插入角度 | :17-10 | 本体材料 | :Thermoplastic |
| 磁芯材质 | Polyester | 壳体材料 | Nylon 6/6 GF |
| 总长度 | 40.87 mm | 主要材料 | CircularPlasticConnector |
| 端接样式 | Wire | 第一触头极性 | Male |
| 连接器颜色 | :Black | 直径 - 环内径 | 34.26 [1.349] |
| 配接方向 | Keyed | 触点数 | 10 |
| 绝缘直径 | 3.81 â 6.73 [0.150 â 0.265] | 位数 | 10 |
| 外壳尺寸-插件 | All Plastic | 外壳材料及表面处理 | Nylon, Glass Filled |
| 第一连接器安装类型 | :Cable | 第二连接器安装特性 | Reverse |
| 外壳尺寸-插入件（转换至） | 17-10 | ||
产品信息

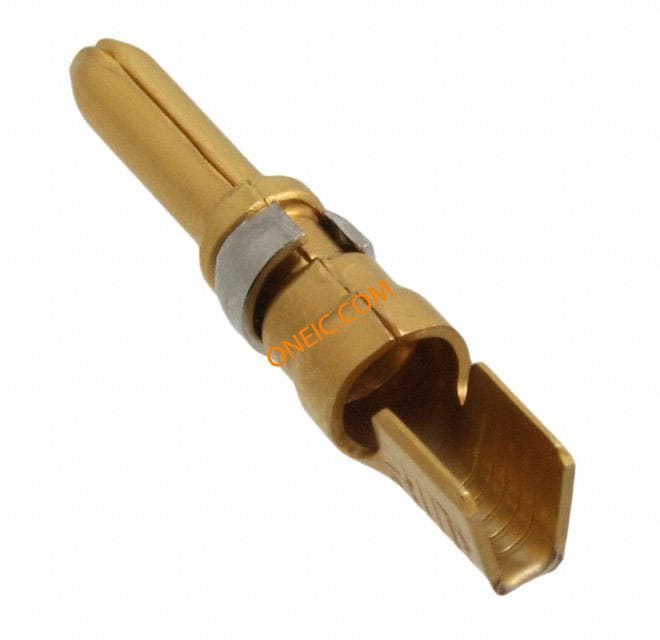

| 备注 | Contacts Not Provided | 类型 | Sealed CPC |
| 连接器性别 | PL | 系列 | Series 6 |
| 产品特性 | ReverseGender | 预加载 | No |
| CAD图纸 | 3D CAD Model | 制造商全称 | Series6 |
| 产品子类型 | Connector | 射频系列/标准 | 213906 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Pin Contacts | ||
环境参数
| 密封等级 | Interfacial | NEMA 机架尺寸 | :IP65 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | :125°C |
