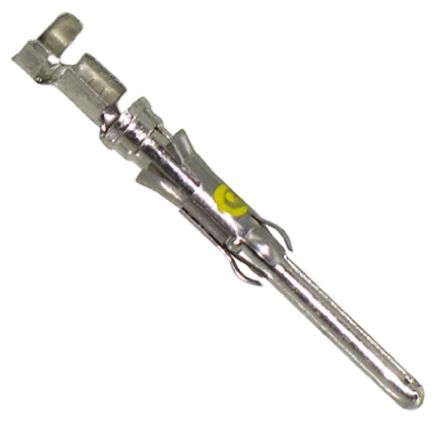

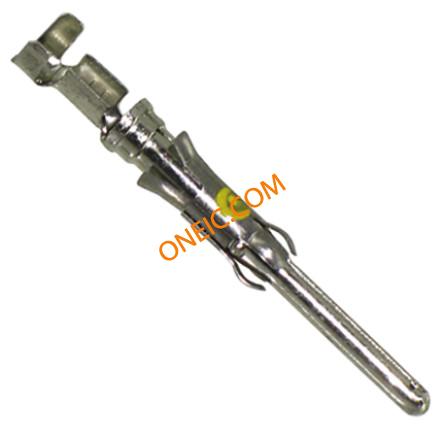

1-66400-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Multimate Contacts CONN PIN .062 20-24AWG TIN CRIMP Multimate III Pin Contact tin 24-20 AWG Pin & Socket Connectors TIN PIN 24-20 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinBright Tin Contact Mating Area Plating MaterialWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN CRIMP, D SUB III+PIN,24-20,TIN-LEAD,LP Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; tinned; crimped TE Connectivity Type III+ 系列 圆形 连接器 触芯, 使用于CPC 连接器, 24 → 20 AWG 线规格 III+ PIN,24-20,TIN,LP |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | ||
电气参数
| 输出电流 | 13.0 | 最大额定电流 | 13 A |
| 连接器类型 - 电压输入 | CPC Series 1, CPC Series 4 | 输出高/低电流 | No |
机械参数
| 深度 | 3.68 mm | 高度 | 3.05 mm |
| 重量 | 0.00227 | 镀层 | Tin |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 出线方向 | Not Required | 电缆类型 | Discrete Wire |
| 导线线规 | 20-24 AWG | 端接方式 | Crimp |
| 触点形式 | Signal | 触点尺寸 | 16 |
| 触头类型 | Signal | 引脚直径 | 1.57 |
| 安装类型 | Straight | 插针或插孔 | Pin |
| 外壳镀层 | Not Required | 电缆直径 | 2.03...2.54mm |
| 连接器类型 | Connector Circular | 接触镀层 | Lead, Tin |
| 安装样式 | Cable | 封装形式 | in bulk |
| 磁芯材质 | Stainless Steel | 触头材料 | Brass |
| 总长度 | 27.56 mm | 包装数量 | Loose Piece |
| 主要材料 | Brass | 连接器 - 电缆 | contact |
| 绝缘高度 | Yes | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 1 POS |
| 端接表面处理 | Bright Tin | 接触件端接 | Crimp |
| 绝缘直径 | 2.03 - 2.54 | 镀层厚度（通用） | 50µin (1.27µm) |
| 触点材料 - 配合 | Bright Tin | 线规或范围 - AWG | 0.20-0.60² [24-20] |
| 线规或范围 - mm² | 0.2...0.6mm2 | 触点材料 - 镀层 | tinned |
产品信息
| SPG | 1 | 备注 | Overall insulation crimp diameter, including crimp barrel, must not exceed 3.18 |
| 类型 | Stamped | 等级 | Commercial |
| 连接器性别 | PIN | 系列 | Type III+ |
| 制造商全称 | AMP | 产品子类型 | Contacts |
| 适配器系列 | Type III+ | 单元数量 | 1 |
| 射频系列/标准 | 66400 | 其他规格 | Wire/Cable |
| 适用产品/相关产品 | :G Series Connectors, CPC Connectors, M Series Connectors | 适用/相关制造商 | M Series Connectors / G Series Connectors / CPC Connectors |
