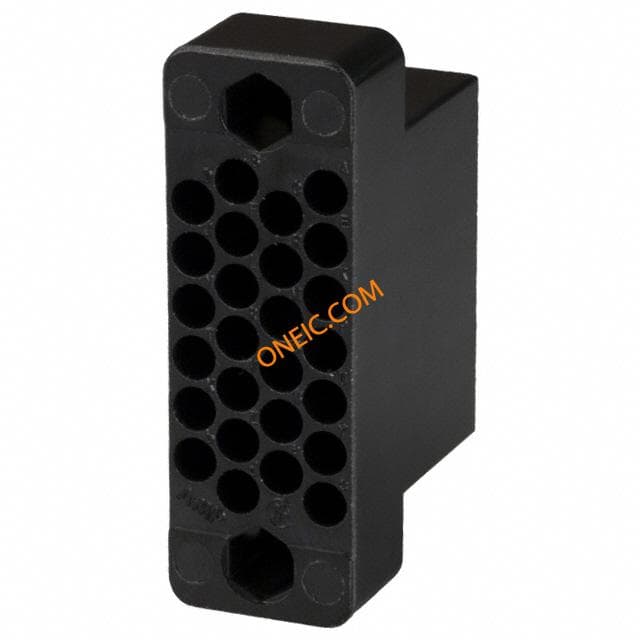

201359-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 26 POS 3.81mm ST Loose Piece M Series Connectors CONN PLUG HOUSING 26POS Pin & Socket Connectors MALE BLOCK 26 PL. M Series Connectors Product Highlights:HousingNumber of Positions = 26Diallyl Phthalate Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, MALE BLOCK 26 PL. |
| 分类 |
商业参数
| 标准包装规格 | 152 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 152 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
机械参数
| 颜色 | Blue | 间距 | 3.81 mm |
| 宽度 | 14.22 mm [ .5598 in ] | 高度 | 41.4 mm [ 1.63 in ] |
| 长度 | 23.24 mm [ .915 in ] | 包装方式 | Bulk |
| 壳体颜色 | 蓝色 | 外壳颜色 | Blue |
| 安装类型 | Straight | 连接器类型 | Standard |
| 排数 | 4 | 外壳材料（壳体） | 插头 |
| 连接器用途 | Plug | 壳体材料 | Diallyl Phthalate |
| 安装特性 | None | 包装数量 | Loose Piece |
| 面板安装类型 | 带有 | 连接器间距 | 3.3 |
| 端接样式 | 插针 | 触点数 | 26 |
| 位数 | 26 | 兼容外壳尺寸（如TM-700等） | 母端排 200512 |
| 中心触点材料 | No | 第一连接器安装类型 | Panel |
产品信息
| 备注 | Housing accepts type II, type III+ and Subminiature Coaxicon contacts.; Pins an | 类型 | Housing |
| 连接器性别 | PL | 产品子类型 | Housing |
环境参数
| 工作范围 | 不密封 | 工作温度 | -65 – 125 °C [ -85 – 257 °F ] |
