点击放大查看

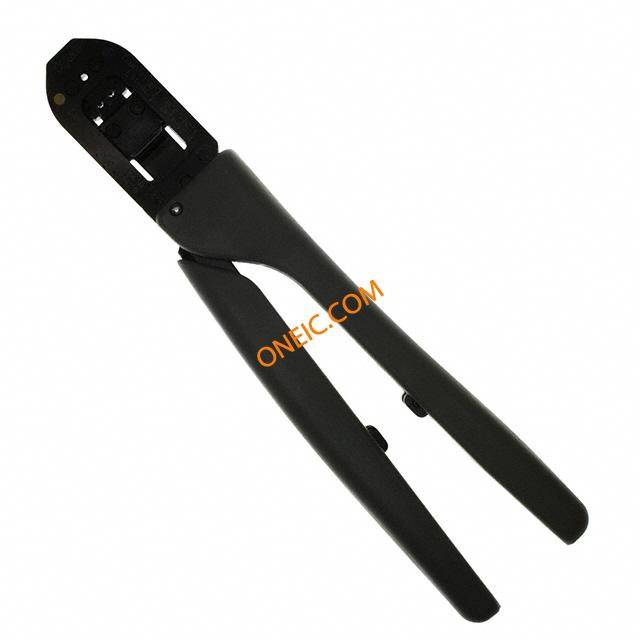

91523-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Straight Action Hand Tool Crimpers CERTICRIMP 2 SAHT TYPE III+ TOOL CRIMPER CPC CERTI 16-24 AWG Crimper,SAHTRatchet,24-16AWG,Circular Connector Accessories CPC Connector Hand Tool Crimper;SAHTRatchet;24-16AWG;Circular;TypeIII,TypeVIContacts;CERTI-CRIMPII CERTICRIMP 2,SAHT III+ |
| 分类 |
商业参数
| 产品 | Crimpers | 产品类别 | Crimpers |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not Applicable | 零件状态 | TE Product Specification (114-) |
电气参数
| 输入功率 | 手动, 电气, 电池 | ||
机械参数
| 包装方式 | Bulk | 连接器类型 | CPC, Type III Contacts, Type VI Contacts |
| 连接器 - 电缆 | 开式压线筒 - F 压接 | 适用端子尺寸 | 18-16 AWG |
| 线规或范围 - AWG | 16 AWG | 线规或范围 - mm² | 24AWG |
产品信息
| 类型 | Hand Tool | 系列 | Certi-Crimp II, Multimate III & VI, AMP |
| 产品特性 | Side Entry, Ratchet | 工具类型 | Hand Crimper |
| 主要用途 | Side Entry, Ratchet | 适配器系列 | 固定工具 |
| 工具类型/特性 | Premium Crimp Tooling | 其他规格 | 是 |
| 适用产品/相关产品 | Backplane and Circular Contacts, 16-24 AWG | ||
