点击放大查看

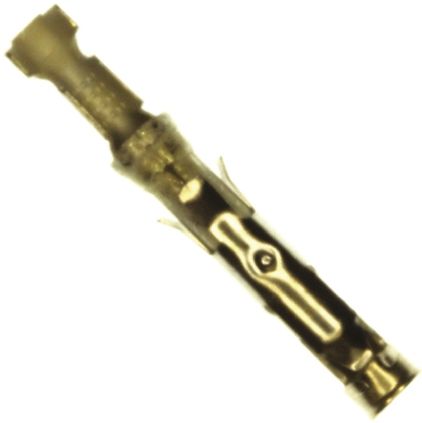

66101-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 16-18AWG 30AU CRIMP Contact, Socket, Multimate, 18-16 AWG Pin & Socket Connectors 16-18 AWG CONTACT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (30) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 18-16AWG, CRIMP ConnectorSocket,GoldoverNickel,18-16AWG,TypeIII+,Crimp,Snap-In TE Connectivity Type III+ 系列 母 压接接线端子, 压接, 镀金镀镍触点 III+ SKT,18-16,30AU>10,LP |
| 分类 |
商业参数
| 商标名 | Multimate | 其他名称 | 661011 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
机械参数
| 深度 | 3.68 mm | 高度 | 3.05 mm |
| 重量 | 0.002 | 镀层 | Gold |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 出线方向 | No | 导线线规 | 16-18 AWG |
| 端接方式 | Crimp | 触点形式 | 1Signal |
| 触头类型 | Signal | 安装类型 | Straight |
| 插针或插孔 | Socket | 外壳镀层 | Not Required |
| 连接器类型 | Connector Circular | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 触头材料 | Brass |
| 主要材料 | Contact | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 1 POS |
| 接触件尾部长度 | 16 | 接触件端接 | Crimp |
| 镀层厚度（通用） | 30µin (0.76µm) | 线规或范围 - AWG | 18-16 |
| 触点材料 - 镀层 | Gold(30)μ | ||
产品信息
| 类型 | Stamped | 连接器性别 | SKT |
| 系列 | Type III | 制造商全称 | TypeIII+Crimp |
| 产品子类型 | Contacts | 射频系列/标准 | 66101 |
| 适用产品/相关产品 | :G Series, M Series, CPC Connectors | ||
