点击放大查看

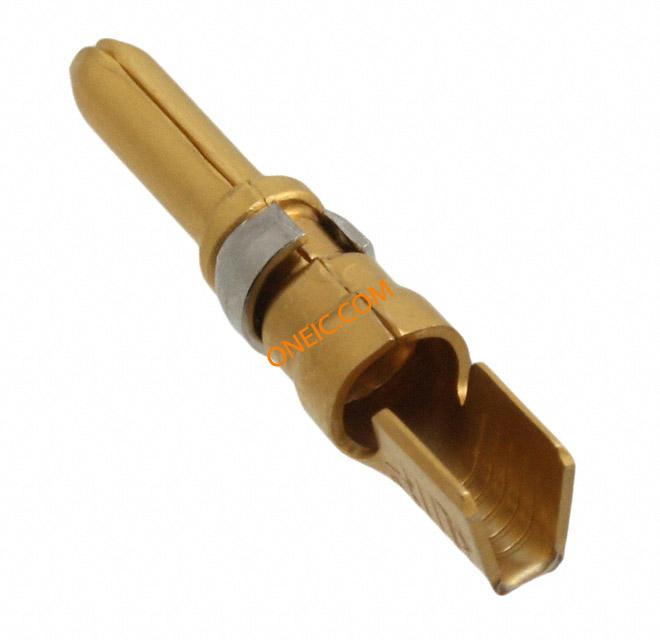

213845-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Multimate PIN POWERBAND 12-14AWG AU CRIMP TE Connectivity Gold over Nickel Plated Crimp Pin Connector Standard Circular Contacts PIN CONTACT 12-14AWG gold Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) Contact Mating Area PlatingWire Range = 2.00-3.00² [14-12] mm [AWG]Copper Contact MaterialGold Flash Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, GOLD, 12-14AWG PWRBANDPINASY14-12L.P. TE Connectivity .125 POWERBAND Contact 系列 50A 公 压接端接 圆形 连接器 触芯, 使用于.125 POWERBAND 触点系列连接器, 14 12 AWG 线规格 PWRBAND PIN ASY 14-12 L.P. |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Standard Circular Contacts |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :ASAE, NEMA, SAE, UL | ||
电气参数
| 最大额定电流 | 50 A | ||
机械参数
| 重量 | 0.002 | 镀层 | Gold |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 导线线规 | 12-14 AWG | 端接方式 | Crimp |
| 触点尺寸 | :8 | 触头类型 | Power |
| 插针或插孔 | Pin | 连接器类型 | Connector Power |
| 接触镀层 | Gold Over Nickel | 触头材料 | Copper |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Gold |
| 接触件端接 | Crimp | 镀层厚度（通用） | 30µin (0.76µm) |
| 线规或范围 - AWG | :12AWG | 线规或范围 - mm² | :3mm² |
| 外径-未扩张 | :1.63mm | ||
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | Multimate Powerband | CAD图纸 | 3D CAD Model |
| 适用产品/相关产品 | :0.125 POWERBAND Contact Series Connectors | ||
环境参数
| 工作温度 | :125°C | ||
相关型号

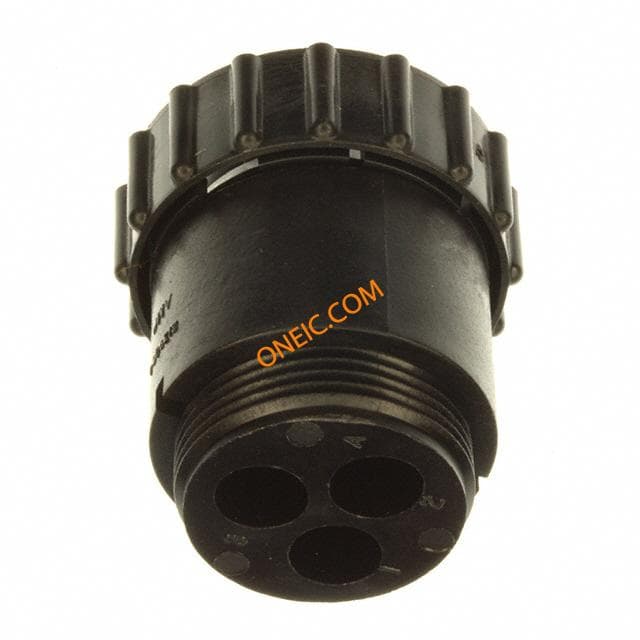

213905-1
te connectivity / amp
Conn Sealed CPC PIN 3 POS ST Cable Mount 3 Terminal 1 Port CPC Connectors CONN PLUG CPC 3POS REV SER 5 3 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector PLUG REVERSE 17-3 Conn Sealed CPC PIN 3 POS ST Cable Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, REV, CPC5, 3WAY CIR CONNECTOR PLUG SIZE 17, 3POS FREE HANGING ConnectorHousing;CPCPlugAssy;3Pos.;Sz.17;Series5;FreeHang;RevSex Plug CPC5 Poles=3, accepts male contacts / Free hanging/cable mount, 213905-1, TE Connectivity TE Connectivity 3路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSY,SERIES 5,SZ 17-3
213845-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate PIN POWERBAND 12-14AWG AG CRIMP TE Connectivity Silver over Nickel Plated Crimp Pin Connector Standard Circular Contacts PIN CONTACT 12-14AWG silver Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 2.00-3.00² [14-12] mm [AWG]Copper Contact MaterialSilver Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, SILVER, 12-14AWG POWERBANDCONTASSY,SILVERPLT Multimate 0.125 POWERBAND 14-12 AWG Insulation Support Crimp Pin Contact Crimp Contact 50 A, 213845-3, TE Connectivity TE Connectivity .125 POWERBAND Contact 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器, 14 12 AWG 线规格 POWERBAND CONT ASSY,SILVER PLT
213906-1
te connectivity / amp
Conn Sealed CPC PIN 10 POS ST Cable Mount 10 Terminal 1 Port CPC Connectors CONN PLUG CPC 10POS REV SER 6 10 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector PLUG REVERSE 17-10 Conn Sealed CPC PIN 10 POS ST Cable Mount 10 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 10PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, REV CPC6, 10WAY ConnectorHousing;CPCPlugAssy;10Pos.;Sz.17;Series6;FreeHang;RevSex Plug CPC6 Poles=10, accepts male contacts / Free hanging/cable mount, 213906-1, TE Connectivity TE Connectivity 10路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSY,SRS 6,SZ 17-10
356612-1
te connectivity / amp
Connector Accessories Crimping Die Set Punches & Dies POWERBAND 14-12 DIE 12-14AWG DIE SET FOR 69710-1
58495-2
te connectivity / amp
Connector Accessories Die Set Punches & Dies PROCRIMPER DIE ASSY MULTIMATE TOOL DIE SET CPC CONN TYPE III Die set for procrimper tool DIE, CPC SERIES 1 ProcrimperDieAssymblyMultimate;Diefor527-0108Handtool Crimp insert for type III+, 58495-2, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接模具 , 28 → 16 AWG 线规格 PROCRIMPER DIE ASSY MULTIMATE
354940-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMPER W/O DIES Hand Tools PROCRIMPER W/O DIES PRO CRIMPER HAND TOOL W/O DIES PRO-CRIMPER III Hand Crimping Tool CRIMP TOOL, PRO-CRIMPER III SMBCONNECTORS,PROCRIMPERIII(FRAMEONLY) Crimp tool, "Pro Crimper III", 354940-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具框架 PRO-CRIMPER III FRAME W/O DIES
318813-1
te connectivity / amp
Screw Machine Contacts Hand Tools EXTRACTION TOOL CONN EXTRACTION TOOL EXTRACTIONTOOLASSY EXTRACTION TOOL, POWER BAND Extraction tool, 318813-1, TE Connectivity TE Connectivity AMPLIMITE 系列 压接拔取工具 EXTRACTION TOOL ASSY
69710-1
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Hand Tools HAND TOOL W/O DIE TOOL HAND FRAME W/O DIE ASSY Straight action hand crimping tool SAHTW/OUTDIES Crimping tool, 69710-1, TE Connectivity TE Connectivity CERTI-CRIMP 系列 压接工具框架 SAHT W/OUT DIES

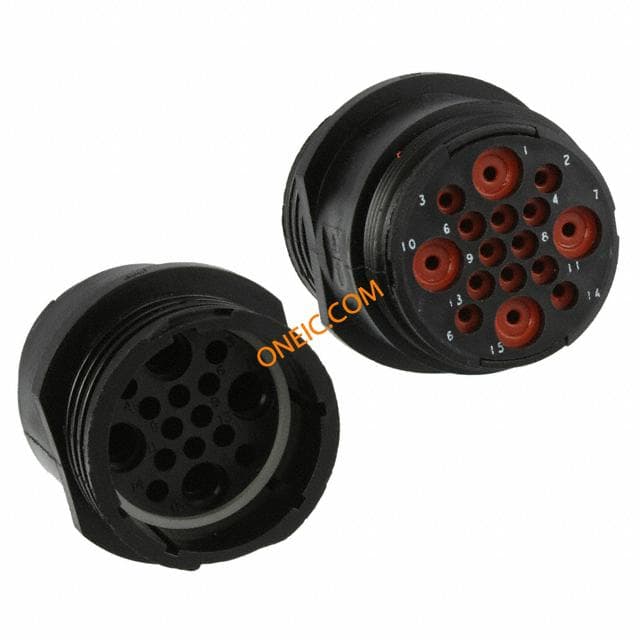

796207-1
