点击放大查看

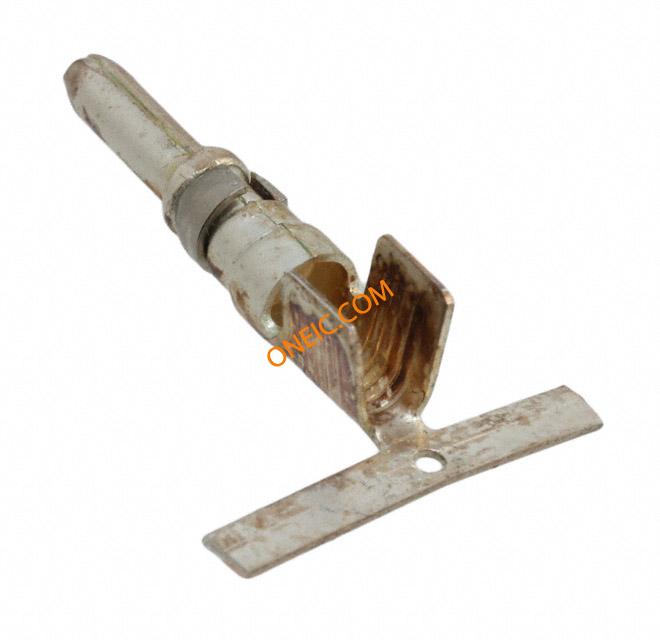

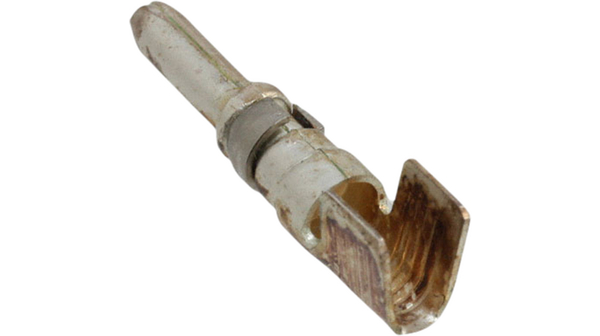

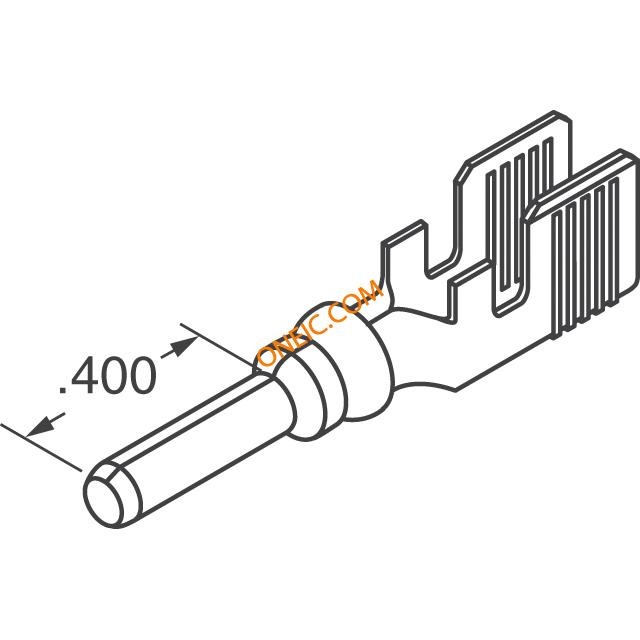

213841-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN PWRBND 8-10AWG AG CRIMP TE Connectivity Silver over Nickel Plated Crimp Pin Connector Standard Circular Connector PIN CONTACT 10-8AWG silver Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 5.00-8.00² [10-8] mm [AWG]Copper Contact MaterialSilver Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, SILVER, 8-10AWG POWERBANDCONTASSY,SILVERPLT Multimate Power Pin Crimp Contact 50 A, 213841-3, TE Connectivity TE Connectivity 公 压接端接 圆形 连接器 触芯 POWERBAND CONT ASSY,SILVER PLT |
| 分类 |
商业参数
| 商标名 | Multimate | 其他名称 | A25072 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :ASAE, NEMA, SAE, UL | ||
电气参数
| 最大额定电流 | 50 A | ||
机械参数
| 重量 | 0.002 | 镀层 | Silver |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 导线线规 | 8-10 AWG | 端接方式 | Crimp |
| 触点尺寸 | :8 | 插针或插孔 | Pin |
| 外壳镀层 | Silver | 接触镀层 | Silver over Nickel |
| 安装样式 | Wire | 触头材料 | Copper |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Silver | 接触件端接 | Crimp |
| 镀层厚度（通用） | 200µin (5.08µm) | 线规或范围 - AWG | :8AWG |
| 线规或范围 - mm² | :8mm² | 外径-未扩张 | :6.6mm |
产品信息
| 类型 | Power | 连接器性别 | Male |
| 系列 | Multimate Powerband | CAD图纸 | 3D CAD Model |
| 产品子类型 | Connectors | 适用产品/相关产品 | :0.125 POWERBAND Contact Series Connectors |
环境参数
| 工作温度 | :125°C | ||
相关型号

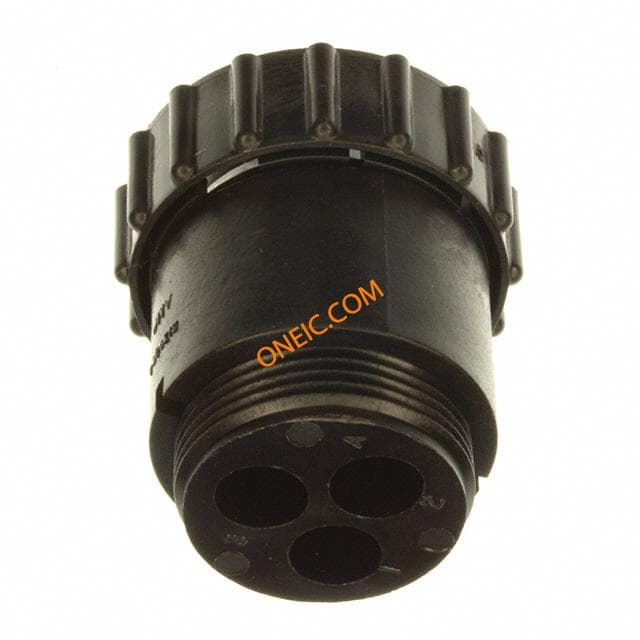

213905-1
te connectivity / amp
Conn Sealed CPC PIN 3 POS ST Cable Mount 3 Terminal 1 Port CPC Connectors CONN PLUG CPC 3POS REV SER 5 3 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector PLUG REVERSE 17-3 Conn Sealed CPC PIN 3 POS ST Cable Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, REV, CPC5, 3WAY CIR CONNECTOR PLUG SIZE 17, 3POS FREE HANGING ConnectorHousing;CPCPlugAssy;3Pos.;Sz.17;Series5;FreeHang;RevSex Plug CPC5 Poles=3, accepts male contacts / Free hanging/cable mount, 213905-1, TE Connectivity TE Connectivity 3路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSY,SERIES 5,SZ 17-3

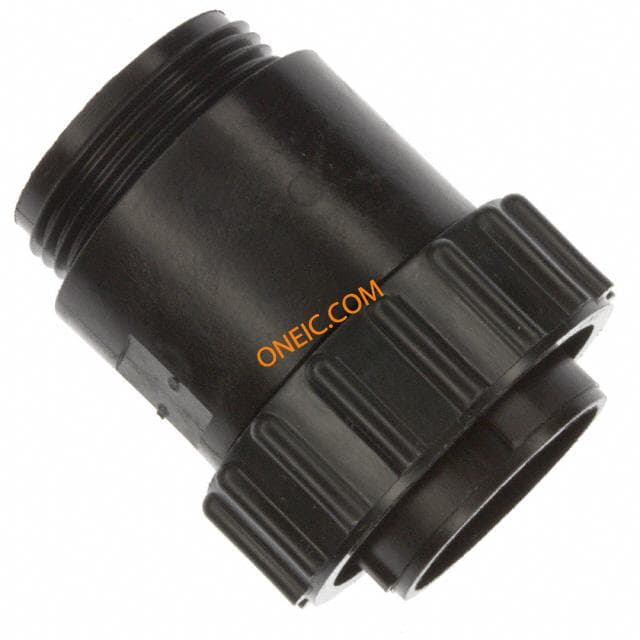

213906-1
te connectivity / amp
Conn Sealed CPC PIN 10 POS ST Cable Mount 10 Terminal 1 Port CPC Connectors CONN PLUG CPC 10POS REV SER 6 10 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector PLUG REVERSE 17-10 Conn Sealed CPC PIN 10 POS ST Cable Mount 10 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 10PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, REV CPC6, 10WAY ConnectorHousing;CPCPlugAssy;10Pos.;Sz.17;Series6;FreeHang;RevSex Plug CPC6 Poles=10, accepts male contacts / Free hanging/cable mount, 213906-1, TE Connectivity TE Connectivity 10路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSY,SRS 6,SZ 17-10

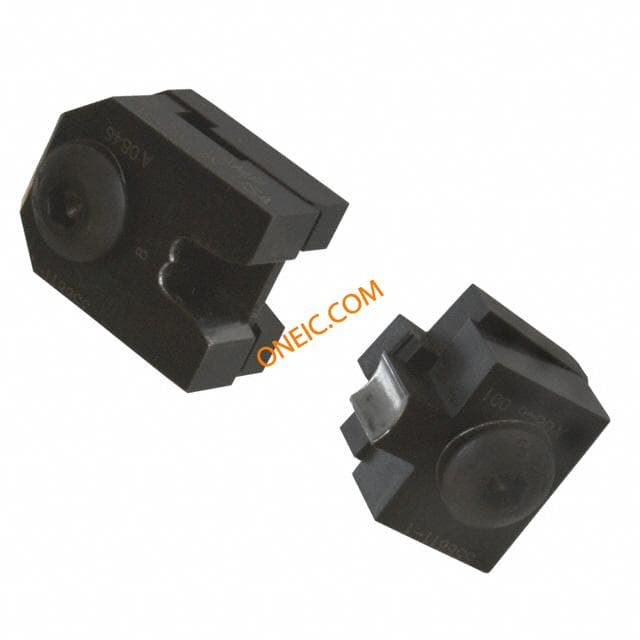

356611-1
te connectivity / amp
Connector Accessories Crimping Die Set Punches & Dies POWERBAND DIE ASSY 8 AWG 8AWG DIE SET FOR 69710-1 POWERBAND DIE ASSY 8 AWG POWERBANDDIEASSY8AWG
58495-2
te connectivity / amp
Connector Accessories Die Set Punches & Dies PROCRIMPER DIE ASSY MULTIMATE TOOL DIE SET CPC CONN TYPE III Die set for procrimper tool DIE, CPC SERIES 1 ProcrimperDieAssymblyMultimate;Diefor527-0108Handtool Crimp insert for type III+, 58495-2, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接模具 , 28 → 16 AWG 线规格 PROCRIMPER DIE ASSY MULTIMATE
354940-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMPER W/O DIES Hand Tools PROCRIMPER W/O DIES PRO CRIMPER HAND TOOL W/O DIES PRO-CRIMPER III Hand Crimping Tool CRIMP TOOL, PRO-CRIMPER III SMBCONNECTORS,PROCRIMPERIII(FRAMEONLY) Crimp tool, "Pro Crimper III", 354940-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具框架 PRO-CRIMPER III FRAME W/O DIES
318813-1
te connectivity / amp
Screw Machine Contacts Hand Tools EXTRACTION TOOL CONN EXTRACTION TOOL EXTRACTIONTOOLASSY EXTRACTION TOOL, POWER BAND Extraction tool, 318813-1, TE Connectivity TE Connectivity AMPLIMITE 系列 压接拔取工具 EXTRACTION TOOL ASSY
69710-1
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Hand Tools HAND TOOL W/O DIE TOOL HAND FRAME W/O DIE ASSY Straight action hand crimping tool SAHTW/OUTDIES Crimping tool, 69710-1, TE Connectivity TE Connectivity CERTI-CRIMP 系列 压接工具框架 SAHT W/OUT DIES

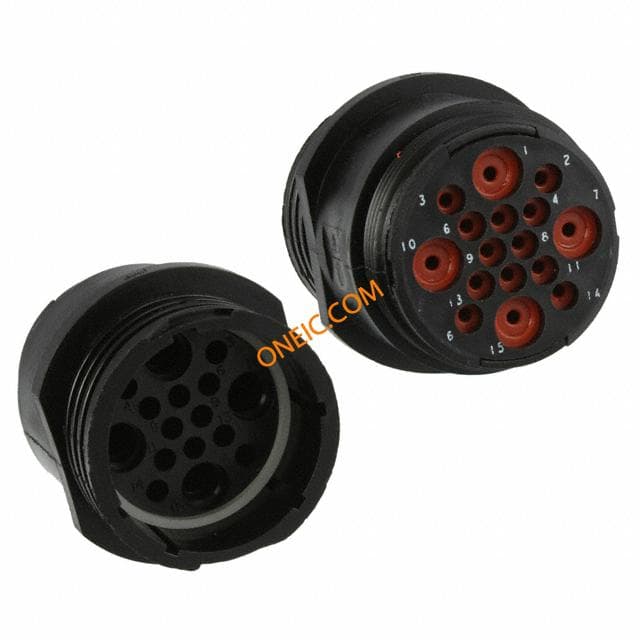

796207-1
