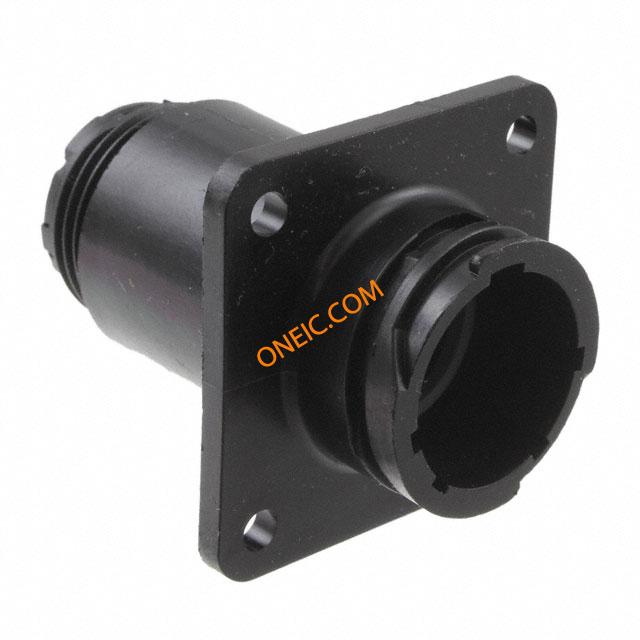

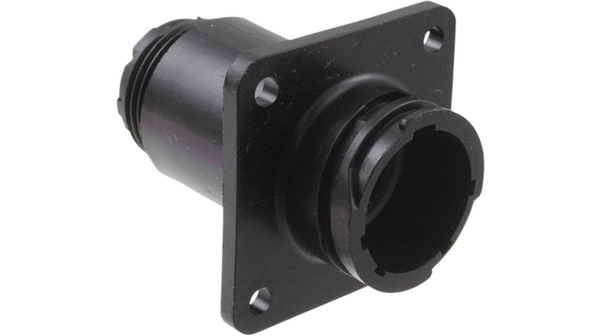

788158-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port CPC Connectors CONN RCPT HSNG 9POS FLANGE MNT 9 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 13 with Male Contacts Standard Circular Connector 13-9 CPC RCPT SLD Conn CPC PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CONNECTOR, CIRCULAR, SIZE 13-9 ConnectorHousing;CPCRecept.Assy;9Pos.;Sz13;Series1;PanelMnt;StdSex Receptacle CPC1 Poles=9, accepts male contacts / with flange / sealed, 788158-2, TE Connectivity TE Connectivity 9路 面板安装 直向 连接器 插座 , 公触点 SLD CPC RCPT ASSY,13-9,STD SEX |
| 分类 |
商业参数
| 交货时间 | 63 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 零件号别名 | 512-8031 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | UL/CSA/VDE/SAE/ASAE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 600 V ac | 通道数量 | 9 |
机械参数
| 颜色 | Red-Iron Oxide | 深度 | 32.54 mm |
| 高度 | 32.54 mm | 密封型 | Yes |
| 重量 | 0.002 | 材料（通用） | Elastomer |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 13 | 方向 | Keyed |
| 外壳样式 | Plastic | 端接方式 | Crimp |
| 螺纹尺寸 | 3/4 - 20 UNEF-2A | 触点形式 | 9Signal |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 外壳镀层 | Elastomer | 行程角度 | Straight |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Threaded |
| 安装样式 | Panel | 连接器样式 | Receptacle |
| 插入角度 | :13-9 | 本体材料 | :Nylon (Polyamide) |
| 壳体材料 | Nylon | 总长度 | 43.31 mm |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Male | 配接方向 | Keyed |
| 触点数 | 9 | 绝缘直径 | 1.65 â 3.05 [0.065 â 0.120] |
| 位数 | 9 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 3.81 [.150] | 外壳材料及表面处理 | Nylon |
| 第一连接器安装类型 | :Panel | 第二连接器安装特性 | Standard |
| 外壳尺寸-插入件（转换至） | 13-9 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 预加载 | No | 排列方式 | 13-9 |
| 外设 | Gray | 制造商全称 | Series1 |
| 产品子类型 | Connector | 射频系列/标准 | 788158 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Pin Contacts | ||
环境参数
| 密封等级 | Peripheral, Wire Entry | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | +125°C | ||
