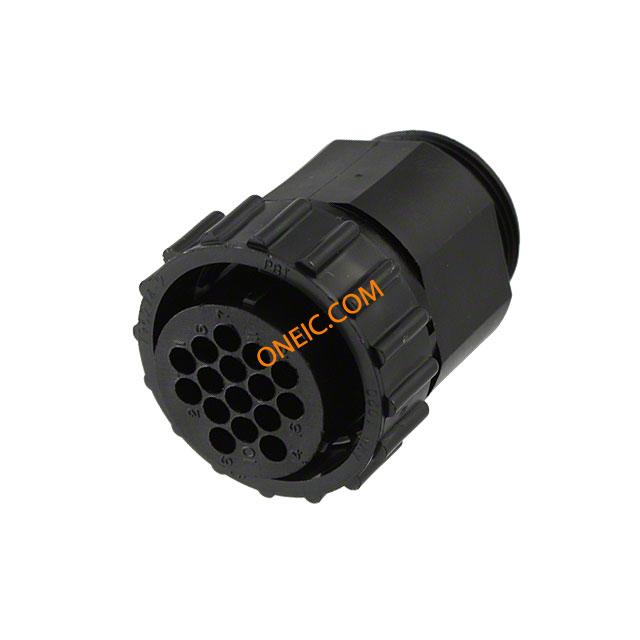

796274-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 16 POS Crimp ST Cable Mount 16 Terminal 1 Port Standard Circular Connector SLD CPC PLUG ASSY 17 CPC Connectors CONN PLUG CPC 16POS SIZE 17 BLK CPC Connectors Product Highlights:ConnectorNumber of Positions = 16PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIR CONNECTOR PLUG SIZE 17 16POS FREE HANGING ConnectorHousing;CPCPlugAssy;16Pos.;Sz.17;Series1;FreeHang;StdSex SLD CPC PLUG ASSY,17-16,STD SX |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 其他名称 | 7962742 |
| 标准包装规格 | 100 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 无铅定义 | Not relevant for lead free process |
| 认证机构 | UL/CSA/VDE/SAE/ASAE | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 600VAC/VDC | 通道数量 | 16 |
机械参数
| 颜色 | Yellow | 密封型 | Yes |
| 重量 | 0.023 | 材料（通用） | Elastomer |
| 包装方式 | Bulk | 外壳尺寸 | 17 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Crimp | 螺纹尺寸 | 15/16-20 UNEF-2A |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug for Female Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 连接器样式 | Plug | 本体材料 | :Nylon (Polyamide) |
| 磁芯材质 | Polyphenylene | 壳体材料 | Nylon |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Socket (Female) | 直径 - 环内径 | 51.02 [2.009] |
| 配接方向 | Threaded | 触点数 | 16 |
| 绝缘直径 | 1.02 â 2.03 [0.040 â 0.080] | 位数 | 16 |
| 外壳尺寸-插件 | All Plastic | 外壳材料及表面处理 | Nylon |
| 第一连接器安装类型 | :Free Hanging | 第二连接器安装特性 | Standard |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | CPC |
| 预加载 | No | 排列方式 | 17-16 |
| 制造商全称 | Series1 | 产品子类型 | Connectors |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Socket Contacts | ||
环境参数
| 密封等级 | Wire Entry | 防护等级 | IP67 - Dust Tight, Waterproof |
文档与媒体
相关型号

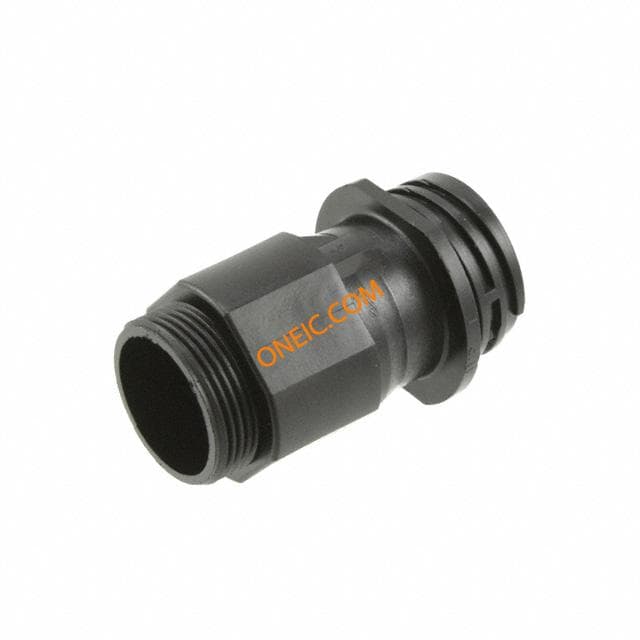

796276-1
