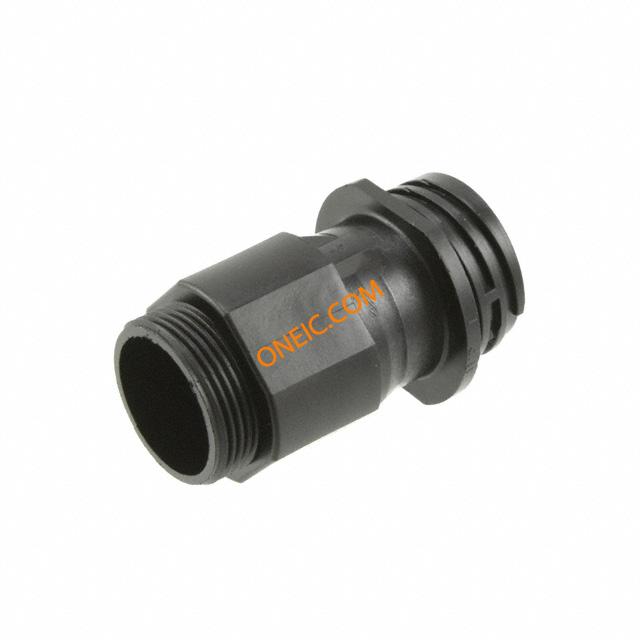

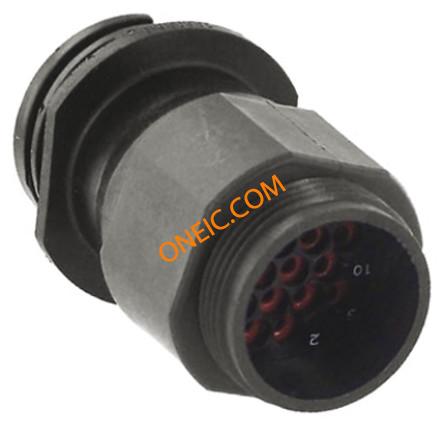

796276-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 16 POS Crimp ST Cable Mount 16 Terminal 1 Port CPC Connectors CONN RCPT CPC 16POS SIZE 17 BLK ConnectorHousing,CPCRecept.Assy,16Pos Standard Circular Connector REC PIN 17-16 F/H SEALED Conn CPC PIN 16 POS Crimp ST Cable Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIR CONNECTOR RCPT SIZE 17 16POS FREE HANGING ConnectorHousing;CPCRecept.Assy;16Pos;Sz17;Series1;FreeHang;StdSex SLD CPC RCPT ASSY,17-16,STD SX |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 其他名称 | 7962761 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 无铅定义 | Not relevant for lead free process |
| 认证机构 | UL/CSA/VDE/SAE/ASAE | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 600 V ac/dc | 通道数量 | 16 |
机械参数
| 颜色 | Red-Iron Oxide | 密封型 | Yes |
| 重量 | 0.018 | 材料（通用） | Elastomer |
| 包装方式 | Bulk | 外壳尺寸 | 17 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Crimp | 螺纹尺寸 | 15/16-20 UNEF-2A |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 外壳镀层 | Elastomer | 行程角度 | Straight |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 连接器样式 | Receptacle |
| 连接器用途 | Threaded | 本体材料 | :Nylon (Polyamide) |
| 壳体材料 | Nylon | 主要材料 | CircularPlasticConnector |
| 端接样式 | Wire | 第一触头极性 | Pin |
| 配接方向 | Keyed | 触点数 | 16 |
| 绝缘直径 | 1.65 â 3.05 [0.065 â 0.120] | 位数 | 16 |
| 外壳尺寸-插件 | All Plastic | 外壳材料及表面处理 | Nylon |
| 第一连接器安装类型 | :Free Hanging | 第二连接器安装特性 | Standard |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 预加载 | No | 排列方式 | 17-16 |
| 外设 | Gray | 制造商全称 | Series1 |
| 产品子类型 | Connector | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
