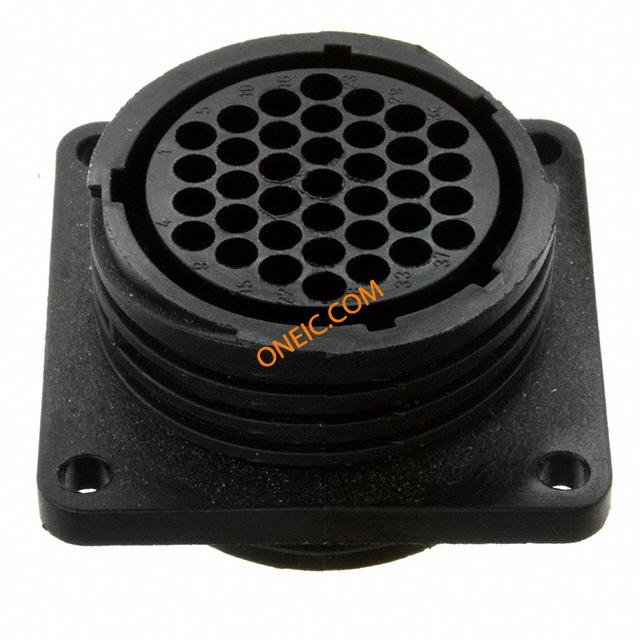

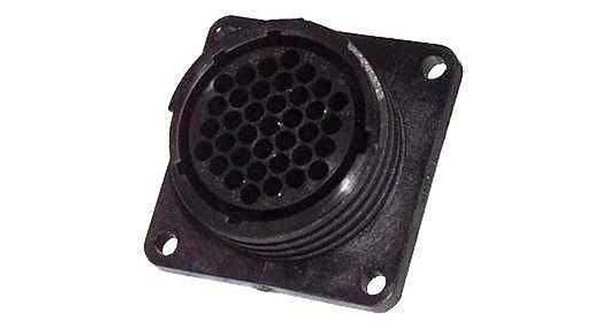

182920-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 37 POS Crimp ST CPC Connectors CONN RCPT CPC 37POS PANEL MT REV Panel mnt rcpt, size 23, 37 way, socket Standard Circular Connector 37-23 RCPT REV SEX Conn Housing RCP 37 POS Crimp ST Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC HOUSING, 37WAY, STRAIGHT Panelmntrcpt,size23,37way,socket Connector: circular; Series: CPC Series 1; socket; female; PIN:37 Female receptacle series CPC 37-pin CPC 1 37P Female 23, 182920-1, TE Connectivity TE Connectivity 37 路 直 母 PCB 壳体 CPC SQ FL. RCPT REV SEX |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | UL列名 | Recognized |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | 材料阻燃等级 | UL 94V-0 |
电气参数
| 通道数量 | 37 | 最小供电电压 | 600VAC |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 深度 | 44.4mm | 宽度 | 44.4mm |
| 高度 | 44.4 mm | 长度 | 27.2mm |
| 密封型 | No | 重量 | 0.004 |
| 包装方式 | Bulk | 外壳尺寸 | 23 |
| 方向 | A | 外壳样式 | Receptacle |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点尺寸 | 16 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 封装形式 | size 23 | 连接器样式 | Receptacle |
| 插入角度 | :23-37 | 锁定特性 | threaded joint, external thread |
| 本体材料 | :Thermoplastic | 壳体材料 | Thermoplastic |
| 总长度 | 27.2 mm | 包装数量 | 25 |
| 面板安装类型 | Square Flange | 连接器 - 电缆 | socket |
| 端接样式 | Wire | 第一触头极性 | Socket |
| 配接方向 | Keyed | 触点数 | 37 |
| 绝缘直径 | 2.54 [0.100] | 位数 | 37 |
| 外壳尺寸-插件 | All Plastic | 外壳材料及表面处理 | Thermoplastic |
| 外壳与棱镜材料 | thermoplastic | 第一连接器安装类型 | :Panel |
| 第二连接器安装特性 | Reverse | ||
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | Series 1 | 预加载 | No |
| CAD图纸 | 3D CAD Model | 产品子类型 | Connector |
| 适配器系列 | CPC Series 1 | 单元数量 | 1 |
| 其他规格 | With | 适用产品/相关产品 | Socket Contacts |
