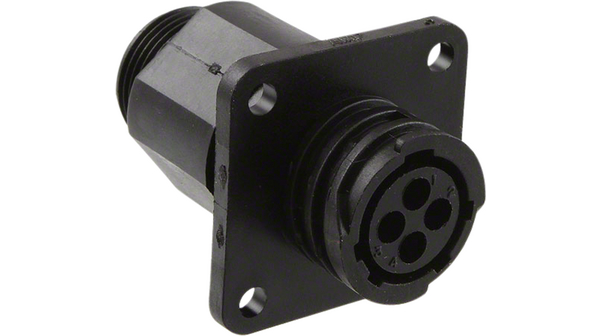

788154-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CPC Connectors CONN RCPT CPC 4POS SIZE 11 BLK 4 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 11 with Female Contacts Standard Circular Connector REC SKT 11-4 PNL SEALED Conn CPC SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR RCPT, SIZE 11, 4POS, PANEL ConnectorHousing;CPCRecept.Assy;4Pos;Sz11;Series1;PanelMnt;RevSex Receptacle CPC1 Poles=4, accepts female contacts / with flange, 788154-2, TE Connectivity TE Connectivity 4路 面板安装 直向 连接器 插座 , 母触点 SLD CPC RCPT ASSY,11-4,REV SEX |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 其他名称 | 7881542 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | UL/CSA/VDE/SAE/ASAE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 600 V ac | 通道数量 | 4 |
机械参数
| 颜色 | Red | 深度 | 28.58 mm |
| 高度 | 28.58 mm | 密封型 | Yes |
| 重量 | 0.009 | 材料（通用） | Elastomer |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 11 | 方向 | A |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 螺纹尺寸 | 5/8 - 24 UNEF-2A | 触点形式 | 4Signal |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 连接器样式 | Receptacle | 本体材料 | :Nylon (Polyamide) |
| 壳体材料 | Nylon 66 | 总长度 | 49.78 mm |
| 面板安装类型 | Square Flange | 主要材料 | CircularPlasticConnector |
| 端接样式 | Wire | 第一触头极性 | Female |
| 配接方向 | Keyed | 触点数 | 4 |
| 绝缘直径 | 0.065to0.1" | 位数 | 4 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 3.18 [.125] |
| 外壳材料及表面处理 | Nylon | 第一连接器安装类型 | :Panel |
| 第二连接器安装特性 | Reverse | 外壳尺寸-插入件（转换至） | 11-4 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 产品特性 | ReverseGender | 预加载 | No |
| 排列方式 | 11-4 | 制造商全称 | Series1 |
| 产品子类型 | Connector | 射频系列/标准 | 788154 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Socket Contacts | ||
环境参数
| 密封等级 | Wire Entry | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | +125°C | ||
文档与媒体
相关型号

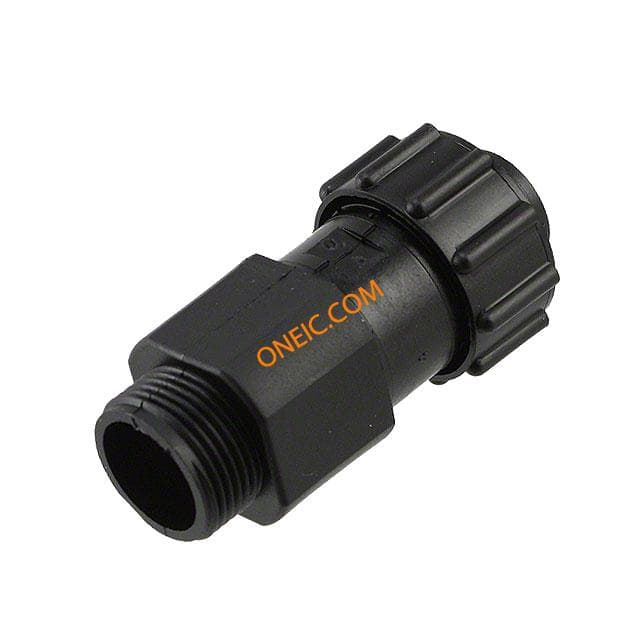

788153-2
