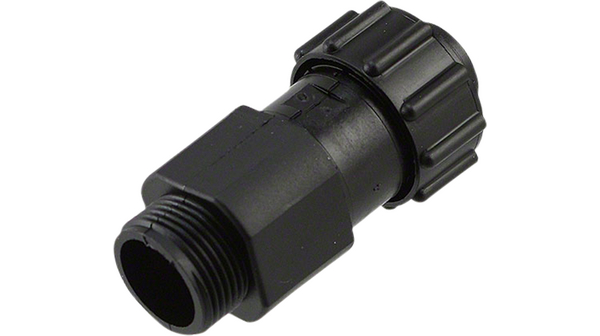

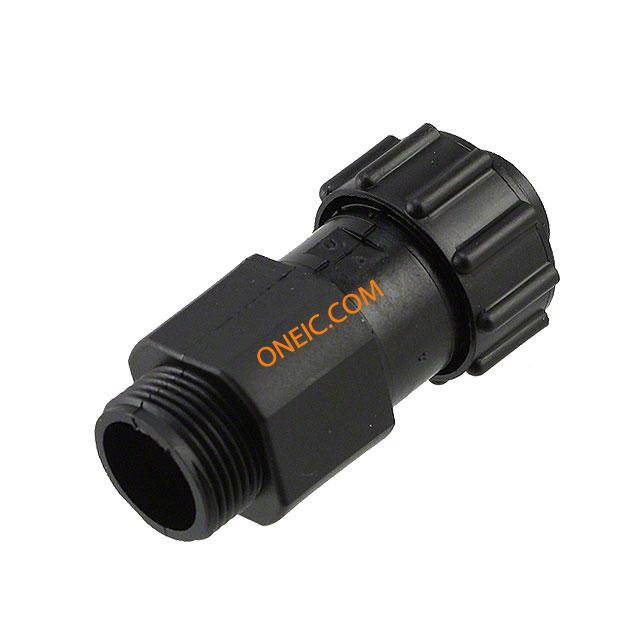

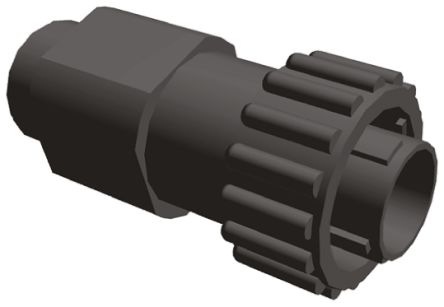

788153-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CPC Connectors CONN PLUG CPC 4POS SIZE 11 BLK Housing 4 way pin size 11 CPC Standard Circular Connector PLUG 11-4 REV SEX Conn CPC PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR ConnectorHousing;CPCPlugAssy;4Pos.;Sz.11;Series1;FreeHang;RevSex Plug CPC1 Poles=4, accepts male contacts / Free hanging/cable mount / sealed, 788153-2, TE Connectivity TE Connectivity Series 1 系列 4路 面板安装 直向 连接器 插头 , 公触点 SLD CPC PLUG ASSY,11-4,REV SEX |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 其他名称 | 7881532 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 合规性 | No | 无铅定义 | Not relevant for lead free process |
| 认证机构 | UL/CSA/VDE/SAE/ASAE | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 600 V ac/dc | 通道数量 | 4 |
| 最大额定电流 | 17A | ||
机械参数
| 颜色 | Red | 密封型 | Yes |
| 重量 | 0.014 | 材料（通用） | Elastomer |
| 包装方式 | Bulk | 外壳尺寸 | 11 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Crimp | 螺纹尺寸 | 5/8 - 24 UNEF-2A |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug for Male Contacts |
| 接触镀层 | Nickel | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 连接器样式 | Plug |
| 插入角度 | :11-4 | 本体材料 | :Nylon (Polyamide) |
| 磁芯材质 | Nylon 6/6 | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon 66 | 主要材料 | CircularPlasticConnector |
| 端接样式 | Wire | 第一触头极性 | Male |
| 直径 - 环内径 | 46.00 [1.182] | 配接方向 | Keyed |
| 触点数 | 4 | 绝缘直径 | 0.065to0.1" |
| 位数 | 4 | 外壳尺寸-插件 | All Plastic |
| 外壳材料及表面处理 | Nylon | 第一连接器安装类型 | :Cable |
| 第二连接器安装特性 | Reverse | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | Series 1 |
| 产品特性 | ReverseGender | 预加载 | No |
| 排列方式 | 11-4 | 制造商全称 | Series1 |
| 产品子类型 | Connector | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
环境参数
| 密封等级 | Wire Entry | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | +105°C | ||
相关型号

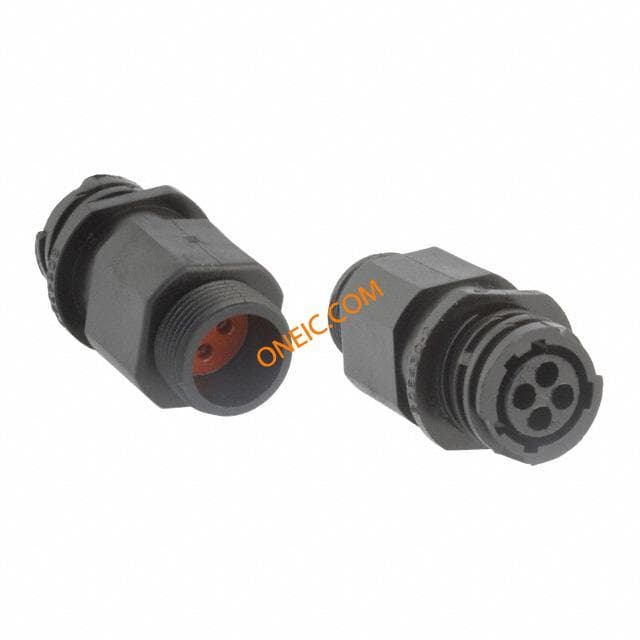

788155-2
