点击放大查看

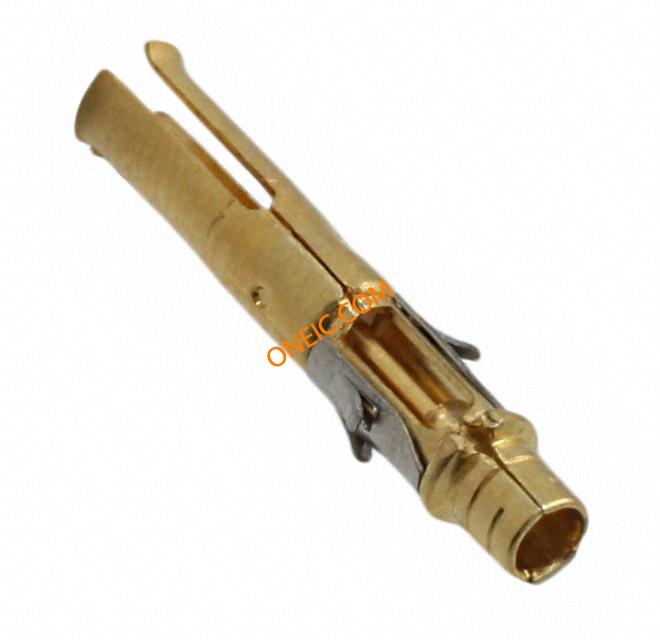

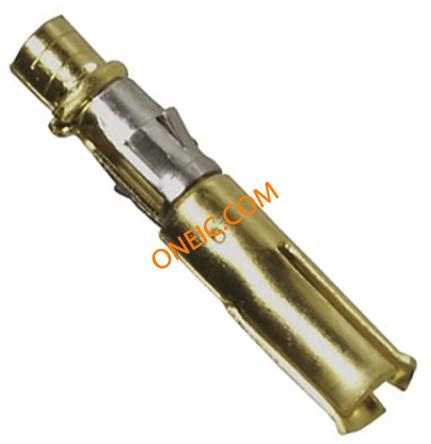

51565-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount CONN SOCKET COAX AWG 26 GOLD Contact,Socket,16,Coax,Gold,Commercial Pin & Socket Connectors COAXICON CONTACT Contact SKT Crimp ST Cable Mount Product Highlights:ContactSocketTerminate To Coaxial Cable, Terminate To Shielded WireCable Type = 161, 174, 174DB, 179, 179A, 179B, 187, 187A, 187DB, 188, 188A, 316, Belden 9221, RD-316Wire/Cable Type = ShieldedSearch Keywords:RF, multi position, SOCKET, COAX, AWG 26 GOLD Contact;Socket;16;Coax;Gold;Commercial;Crimp;26AWG;Shielded;AMP Contact; female; Cable: RG174,RG188(A), RG316 Straight Subminiature Socket Coaxial Cable Contact SUB MIN SOCKET |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHS,ELVCompliants |
| 海关税号 | 85366990 | 抗辐射加固 | No |
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 重量 | 0.005 | 镀层 | Gold |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 导线类型 | Shielded | 出线方向 | No |
| 电缆类型 | RG174, RG188(A), RG316 | 导线线规 | 26 AWG |
| 端接方式 | Crimp | 触点形式 | 1Signal |
| 触点尺寸 | 16 | 触头类型 | Coaxial |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 外壳镀层 | Not Required | 连接器类型 | Connector Circular |
| 接触镀层 | Gold | 安装样式 | Cable |
| 触头材料 | Brass | 总长度 | 16.51 mm |
| 包装数量 | 1 | 连接器 - 电缆 | contact |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 1 POS | 接触件尾部长度 | 16 |
| 接触件端接 | Crimp | 镀层厚度（通用） | 30µin (0.76µm) |
| 线规或范围 - AWG | 26 | ||
产品信息
| SPG | 1 | 类型 | Coaxial |
| 等级 | Commercial | 连接器性别 | SKT |
| 系列 | COAXICON | 制造商全称 | AMP |
| 产品子类型 | Contacts | 单元数量 | 1 |
| 适用产品/相关产品 | :CPC, G Series, M Series, Metrimate Connectors | ||
