点击放大查看
225088-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Cable Accessories Ferrule Barrier Terminal Blocks FERRULE Multiple Coaxial Contacts (COAXICON) CONN FERRULE CABLE 196DB TIN FERRULE FERRULE Search Keywords:RF, multi position, |
| 分类 |
商业参数
| 产品 | Barrier Terminal Blocks | 标准包装规格 | 1,000 |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
机械参数
| 颜色 | Silver | 材料（通用） | Copper, Tin Plated |
| 包装方式 | 包装 | 电缆类型 | RG 196DB |
| 导线线规 | 2.71 [0.107] | 连接器类型 | 同轴接触件 |
| 接触镀层 | 锡 | 内径（孔径） | 3.05 [0.120] |
| 壳体镀层 | 锡 | 插入件材料 | 铜 |
| 套圈材料 | Tin | 兼容外壳尺寸（如TM-700等） | CPC 连接器 |
产品信息
| 备注 | Extraction Tool No. 305183 | 类型 | Ferrule |
| 产品子类型 | Ferrule | 附件类型 | Ferrule |
| 适用产品/相关产品 | CPC Connectors | 适用/相关制造商 | CPC Connectors |
相关型号
226537-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Barrier Terminal Blocks SUBMIN PIN MULTIMATE Multiple Coaxial Contacts (COAXICON) CONN PIN COAXIAL/SHIELDED 26AWG Multiple Coaxial Contacts (COAXICON) Product Highlights:ContactPinTerminate To Coaxial Cable, Terminate To Shielded WireCable Type = Belden 9221, RD 316, RG 161, RG 174, RG 174DB, RG 179, RG 187, RG 187DB, RG 188, RG 316Wire Range = 0.12-0.15; [26] mm [AWG]Search Keywords:RF, multi position, SUB MIN PIN MULTIMATE

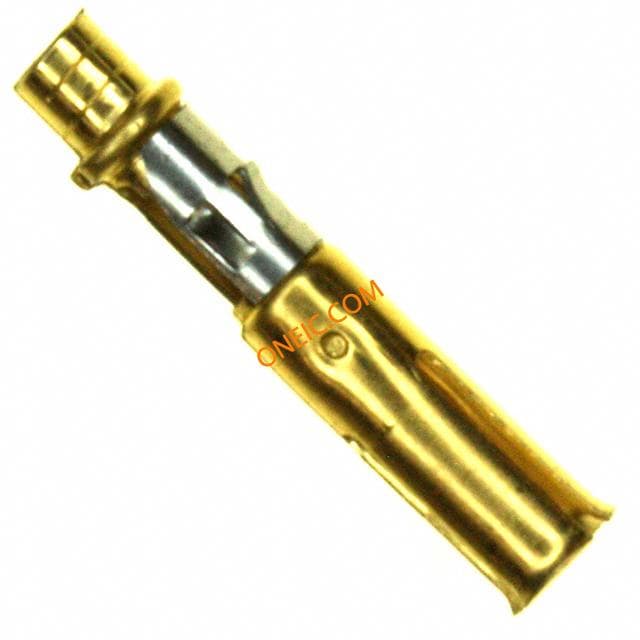

51565-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multiple Coaxial Contacts (COAXICON) CONTACT SKT COAX CRIMP GOLD RF Connectors / Coaxial Connectors SUB MIN SOCKET Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketTerminate To Coaxial CableCable Type = RG 178, RG 178A, RG 178B, RG 196, RG 196DB, RG 196AConnector Impedance = Non-Matched ?Search Keywords:RF, multi position, CONTACT, SOCKET, 30-26AWG, CRIMP Contact;Socket;16;Coax;Gold;Commercial;Crimp;AMP;RoHS,ELVCompliants SUB MIN SOCKET

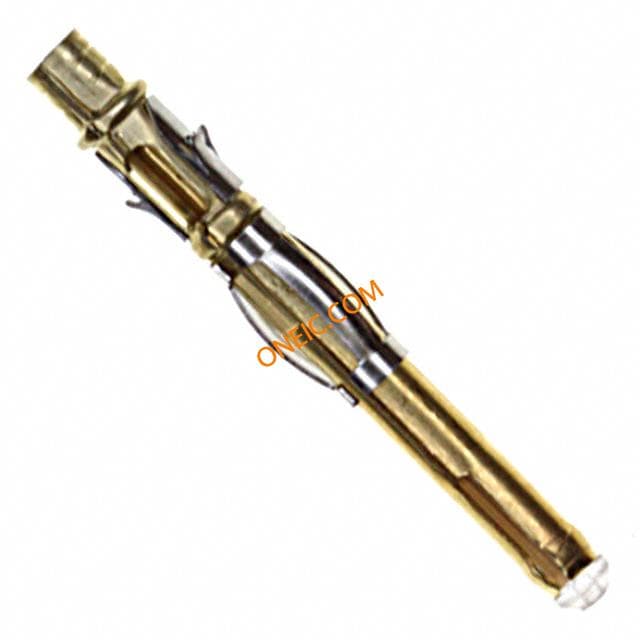

226537-2
