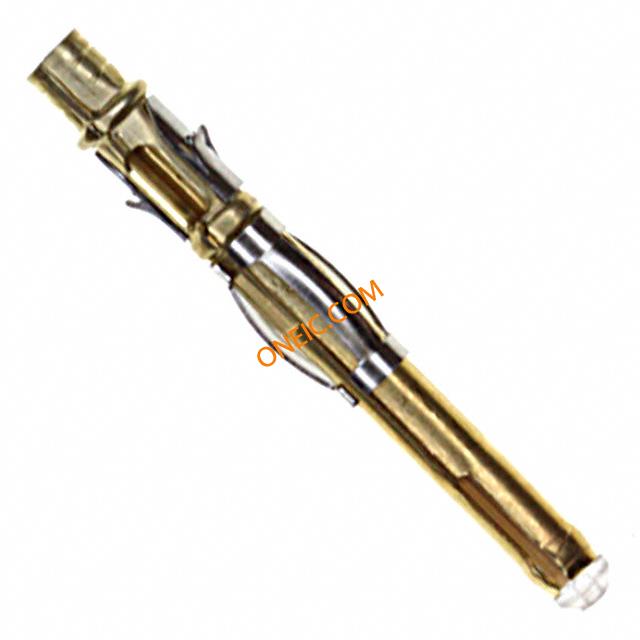

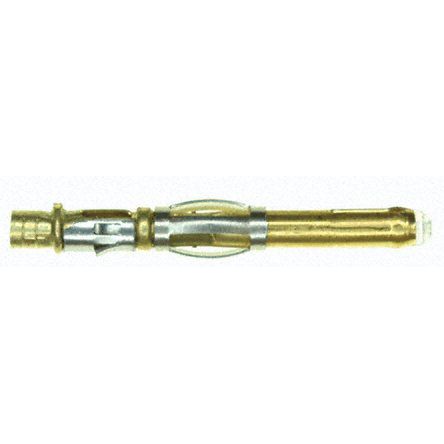

226537-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Multiple Coaxial Contacts (COAXICON) CONTACT PIN COAX CRIMP GOLD Size 16 Male Circular Connector Contact, Crimp Pin & Socket Connectors COAXICON PIN CONTACT Contact PIN Crimp ST Cable Mount Product Highlights:ContactPinTerminate To Coaxial CableCable Type = 178, 178A, 178B, 196, 196A, 196DBConnector Impedance = Non-Matched ?Search Keywords:RF, multi position, Contact;Pin;16;Coax;Gold;Commercial;Crimp;AMP;RoHS,ELVCompliants TE Connectivity 公 压接端接 圆形 连接器 触芯, 使用于CPC 和 G 系列以及 M 系列和 Metrimate 连接器 SUB MIN PIN MULTI MATE |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHS,ELVCompliants |
| 海关税号 | 85366910 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 阻抗 | Non-Matched | ||
机械参数
| 长度 | 25.78mm | 重量 | 0.002 |
| 镀层 | Gold | 材料（通用） | Brass |
| 包装方式 | Bulk | 电缆类型 | RG 178, RG 178A, RG 178B, RG 196, RG 196DB, RG 196A |
| 端接方式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | Coaxial | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 外壳镀层 | Gold (30) over Nickel (50) |
| 连接器类型 | Connector Circular | 接触镀层 | Gold Over Nickel |
| 外壳材料（壳体） | Brass per MIL-C-50 | 触头材料 | Beryllium Copper |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 导体材料 | Beryllium Copper per QQ-C-533 | 接触件尾部长度 | 16 |
| 接触件端接 | Crimp | 介电材料 | TPX |
| 镀层厚度（通用） | 30µin (0.76µm) | 中心触点镀层工艺 | Gold (30) over Copper (100) |
| 供应商器件封装 | CPC, G Series, M Series, Metrimate | 触点材料 - 配合 | Without |
产品信息
| 备注 | A ferrule is required for each pin and socket. | 类型 | Machined |
| 等级 | Commercial | 连接器性别 | PIN |
| 系列 | COAXICON | 制造商全称 | AMP |
| 产品子类型 | Contact | 连接类型 | Coaxial Cable |
