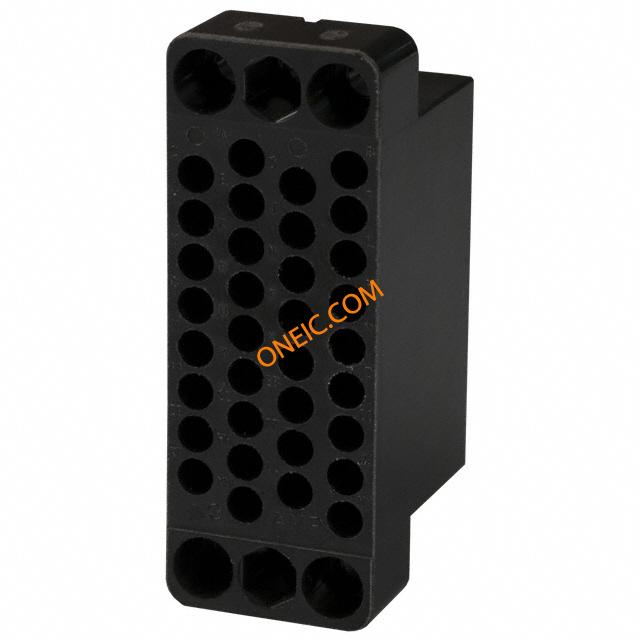

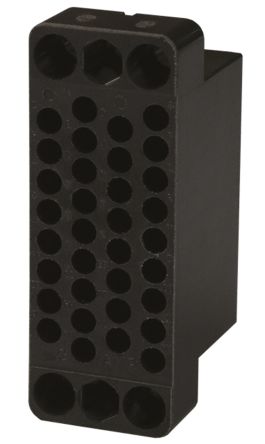

200838-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 34 POS 3.81mm ST Panel Mount Loose Piece M Series Connectors CONN HOUSING RECEPT 34POS BLACK Housing receptacle 34 way M series Pin & Socket Connectors 34P HOUSING SOCKET Conn Housing RCP 34 POS 3.81mm ST Panel Mount Loose Piece Product Highlights:HousingNumber of Positions = 34Phenolic Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, Connector;Phenolic;Black;Standard;34;FreeHanging,PanelMount TE Connectivity M 系列 4 行 3.81mm 节距 34 路 直 母 压接连接器外壳 BLOCK,34 POSN,M SERIES |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 85 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | ||
机械参数
| 颜色 | Black | 深度 | 23.24mm |
| 间距 | 3.81 mm | 宽度 | 19.05mm |
| 高度 | 50.8 mm [ 1.999 in ] | 长度 | 50.8mm |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 方向 | 直 | 外壳颜色 | Black |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Standard | 安装样式 | Panel |
| 排数 | 4 | 外壳材料（壳体） | 母端, 母端 |
| 连接器用途 | Receptacle | 壳体材料 | Phenolic |
| 总长度 | 2" | 安装特性 | None |
| 包装数量 | Loose Piece | 面板安装类型 | 带有 |
| 主要材料 | InterconnectSystem | 插针孔直径 | 0.15" |
| 连接器间距 | 5.94 | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 触点数 | 34 |
| 位数 | 34 | 兼容外壳尺寸（如TM-700等） | 插针外壳 |
| 安装孔直径 | 0.13" | 中心触点材料 | No |
| 第一连接器安装类型 | Panel | ||
产品信息
| 备注 | Housing accepts type II, type III+ and Subminiature Coaxicon contacts.; Pins an | 类型 | Housing |
| 连接器性别 | RCP | 系列 | M |
| 产品特性 | FreeHanging | 制造商全称 | MSeries |
| 产品子类型 | Housing | 适用产品/相关产品 | PCB Connector |
环境参数
| 工作范围 | 不密封 | 工作温度 | -55 – 150 °C [ -67 – 302 °F ] |
