1-201357-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 34 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING PLUG 34POS BLACK TE Connectivity 3.81mm 34 Way 4 Row Straight Multiway Connector Free Hanging, Panel Mount Pin & Socket Connectors MALE BLOCK 34 PL Conn Housing PL 34 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 34Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, InterconnectPlugHousing;Phenolic;Black;Standard;34;AmpBrand,MSeries TE Connectivity M 系列 4行 34路 直 3.81mm节距 自由悬挂，面板安装 外壳 MALE BLOCK 34 PL |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 85 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSandELVCompliant |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | ||
机械参数
| 颜色 | Black | 间距 | 3.81 mm |
| 宽度 | 19.05 mm [ .75 in ] | 高度 | 50.8 mm [ 2 in ] |
| 长度 | 23.24 mm [ .915 in ] | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 方向 | 直 |
| 端接方式 | Solder | 触头类型 | Pin |
| 外壳颜色 | Black | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Standard |
| 安装样式 | Panel | 排数 | 4 |
| 外壳材料（壳体） | 插头 | 连接器用途 | Plug |
| 壳体材料 | Phenolic | 总长度 | 2" |
| 安装特性 | None | 包装数量 | Loose Piece |
| 面板安装类型 | 带有 | 主要材料 | InterconnectSystem |
| 端接排数 | 焊接 | 插针孔直径 | 0.15" |
| 端接样式 | 插针 | 触点数 | 34 |
| 位数 | 34 | 兼容外壳尺寸（如TM-700等） | 配合 200838 使用 |
| 安装孔直径 | 0.13" | 中心触点材料 | No |
| 第一连接器安装类型 | Panel | ||
产品信息
| 备注 | Housing accepts type II, type III+ and Subminiature Coaxicon contacts.; Pins an | 类型 | Housing |
| 连接器性别 | PL | 系列 | M |
| 制造商全称 | MSeries | 产品子类型 | Housing |
| 适用产品/相关产品 | TypeII,typeIII+andsubminiaturecoaxiconcontacts | ||
环境参数
| 工作范围 | 不密封 | 工作温度 | -55 – 150 °C [ -67 – 302 °F ] |
相关型号
66103-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG 30 GOLD CRIMP Series1 gold plated pin contact,24-20awg Standard Circular Contacts PIN CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20 AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated; 13A MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact Crimp contact 13 A Male 20...24 AWG, 66103-4, TE Connectivity TE Connectivity Type III+ 系列 160A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
66460-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 32 AWG GOLD CRIMP Pin & Socket Connectors PIN .062 DIA .025 SQ POST LP PIN,.062 DIA,.025 SQ POST,LP PIN,.062 DIA,.025 SQ POST,LP Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
1-66106-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG TIN CRIMP CONN PIN 24-26AWG TIN CRIMP Pin & Socket Connectors PIN 26-24 BR/SN SIG Contact PIN Crimp ST Cable Mount Strip Product Highlights:Contact Type = PinContact Classification = SignalType III+ SeriesBright Tin Contact Plating, Mating Area, MaterialWire Range = 0.12-0.24² [26-24] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,26-24,TIN,STRIP
200838-3
te connectivity / amp
Conn Housing RCP 34 POS 3.81mm ST Loose Piece M Series Connectors CONN RCPT 34POS STD M SERIES Pin & Socket Connectors 34P HOUSING SOCKET Conn Housing RCP 34 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 34Diallyl Phthalate Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, FEMALE BLOCK,34 PL,M SERIES
201827-1
te connectivity / amp

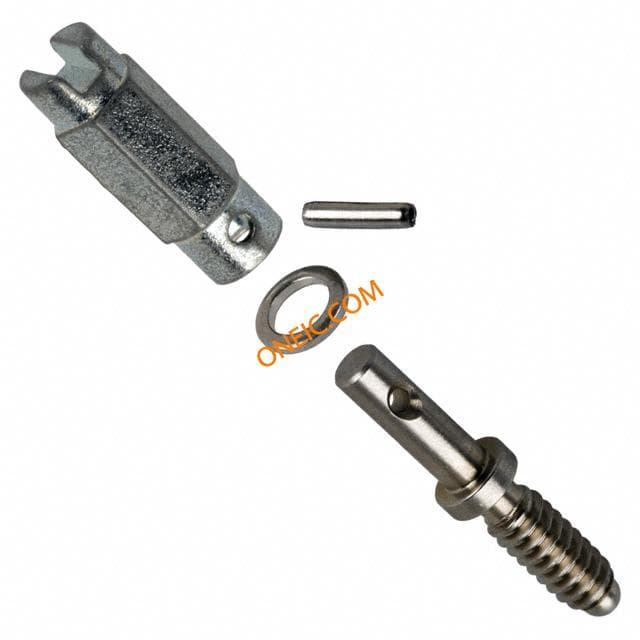

Connector Accessories Hardware Male Loose Piece Zinc Alloy M Series Connectors CONN JACKSCREW SHORT-SHORT MALE Jackscrew Male M-Series Pin & Socket Connectors M SERIES JKSCREW Connector Accessories Hardware Male Loose Piece Zinc Alloy Product Highlights:HardwareHardware Type = JackscrewMaleJackscrew Type = TurnableJackscrew Style = Short-ShortSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, JACK SCREW KIT, #6-32, M SER CONNECTOR SERIES"M"JACKSCREW-SPEC.M SERIES "M" JACKSCREW - SPEC. M
66332-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 20-24AWG 15 GOLD CRIMP Power to the Board PIN 24-20 GOLD 12000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,24-20,15AU/FL,STRIP
1-66098-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 18-16AWG #16 TIN Pin & Socket Connectors II+ PIN 18-16 TIN Conn Contact PIN 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinTin Contact Mating Area Plating MaterialWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts II+ PIN, 18-16,TIN STRIP
66106-8
te connectivity / amp
III+ PIN,26-24,30AU/FL,STRIP Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG AU CRIMP CONN PIN 24-26 AWG GOLD CRIMP Pin & Socket Connectors III+ PIN26-2430 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+PIN,26-24,30AU/FL,STRIP MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Assembly TE Connectivity Type III+ 系列 公 压接触点, 压接, 镀金触点
66099-3
te connectivity / amp
III+ PIN,18-16,15AU/FL,LP Multimate CONN PIN 16-18AWG GOLD CRIMP Contact Crimp Pin 18-16AWG Multimate Standard Circular Contacts 18-16 AWG CRIMP PIN Contact PIN Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 18-16AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(15)overNickel(50);18-16AWG;Crimp TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点
200517-2
te connectivity / amp

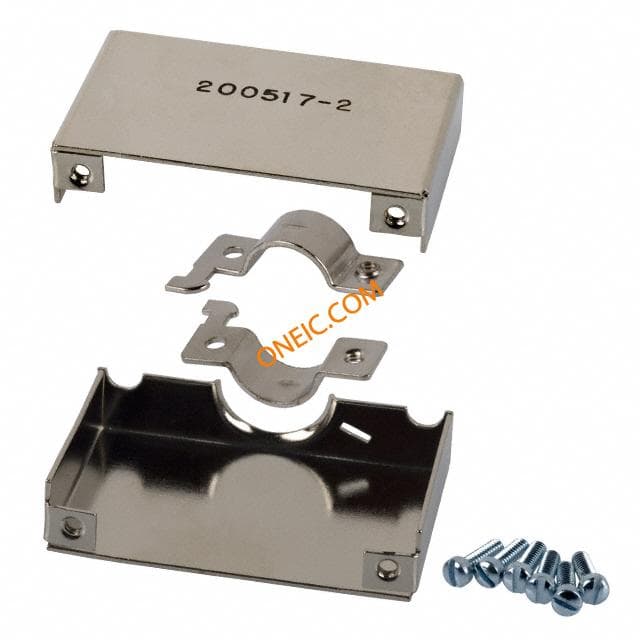

Connector Accessories Shield Steel Nickel Finish M Series Connectors CONN SHIELD 34POS 2PC SHRT STEEL Pin & Socket Connectors 34 POS. SHIELD ASSY. Connector Accessories Shield Steel Nickel Finish Product Highlights:HardwareHardware Type = ShieldShort Shield Size180° Cable Exit AngleNone Mounting HardwareSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace,
201330-6
te connectivity / amp
PIN CONT ASSY, SZ 16, TYPE II Multimate CONTACT PIN 20-24AWG CRIMP GOLD Modular Connectors / Ethernet Connectors PIN 24-20 30AU Multimate Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.40 - 2.24 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
66099-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 16-18AWG GOLD CRIMP Series1 gold plated pin contact,18-16awg Standard Circular Contacts GOLD PIN 18-16 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, GOLD, 18-16AWG Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);18-16AWG;Crimp Contact; male; 0.8÷1.4mm2; 16÷18AWG; Type III+; gold plated; 13A sale Crimp contact 13 A Male 16...18 AWG, 66099-4, TE Connectivity TE Connectivity Type III+ 系列 公 压接端接 圆形 连接器 触芯, 18 → 16 AWG 线规格 III+ PIN,1-16,30AU/FL,LP
201165-2
te connectivity / amp

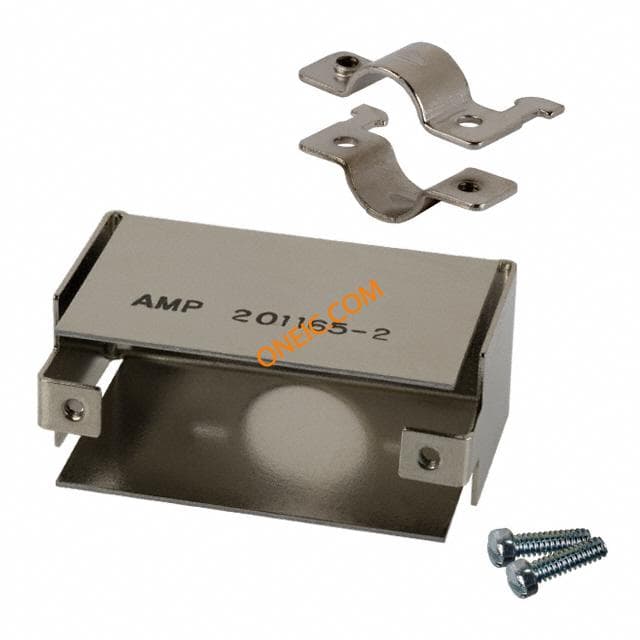

Connector Accessories 34 POS Shield Kit Steel Nickel Finish M Series Connectors CONN SHIELD 34POS 1PC SHORT
