1-332057-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Cable Accessories Ferrule Copper Tin Multiple Coaxial Contacts (COAXICON) CONN FERRULE CPC AWG26-30 SOLID RF Connector Accessories FERRULE COAXICON SUB Cable Accessories Ferrule Copper Tin Product Highlights:FerruleCable Type = 178, 178A, 178B, 196, 196AWire/Cable Type = Solid, StrandedWire Range = 0.05-0.15 [30-26] mm [AWG]Ferrule Diameter = 2.84 mmSearch Keywords:RF, multi position, Contact;MultipleCoaxial;26,28,30AWG;AMPBrand;CPCConnectors FERRULE COAXICON SUB-MIN |
| 分类 |
商业参数
| 产品 | Hardware | 产品类别 | RF Connector Accessories |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Silver | 直径 | 2.84 mm |
| 材料（通用） | Copper, Tin Plated | 包装方式 | 纸箱 |
| 电缆类型 | RG 178, RG 178A, RG 178B, RG 196, RG 196A | 导线线规 | 2.11 [0.083] |
| 本体表面处理 | Tin | 触头类型 | MultipleCoaxial |
| 基体材料 | Copper | 连接器类型 | Ferrule |
| 接触镀层 | 锡 | 内径（孔径） | 2.84 [0.112] |
| 壳体镀层 | Tin | 插入件材料 | 铜 |
| 套圈材料 | Copper | 总长度 | 5.96 mm |
| 兼容外壳尺寸（如TM-700等） | CPC 连接器 | 线规或范围 - mm² | 0.05-0.15 [30-26] |
产品信息
| 备注 | Extraction Tool No. 305183 | 类型 | Ferrule |
| 系列 | COAXICON | 制造商全称 | AMPBrand |
| 产品子类型 | Ferrule | 附件类型 | Ferrule |
| 适用产品/相关产品 | CPC Connectors | 适用/相关制造商 | CPC Connectors |
相关型号
51565-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multiple Coaxial Contacts (COAXICON) CONTACT SKT COAX CRIMP GOLD RF Connectors / Coaxial Connectors SUB MIN SOCKET Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketTerminate To Coaxial CableCable Type = RG 178, RG 178A, RG 178B, RG 196, RG 196DB, RG 196AConnector Impedance = Non-Matched ?Search Keywords:RF, multi position, CONTACT, SOCKET, 30-26AWG, CRIMP Contact;Socket;16;Coax;Gold;Commercial;Crimp;AMP;RoHS,ELVCompliants SUB MIN SOCKET

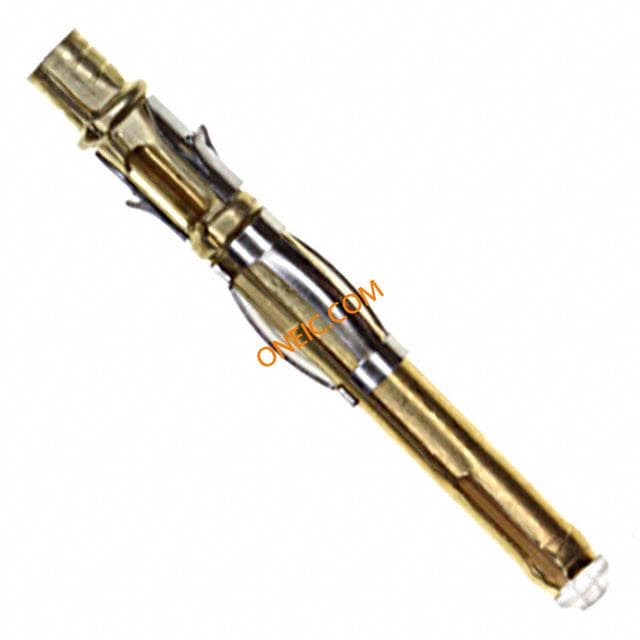

226537-2
