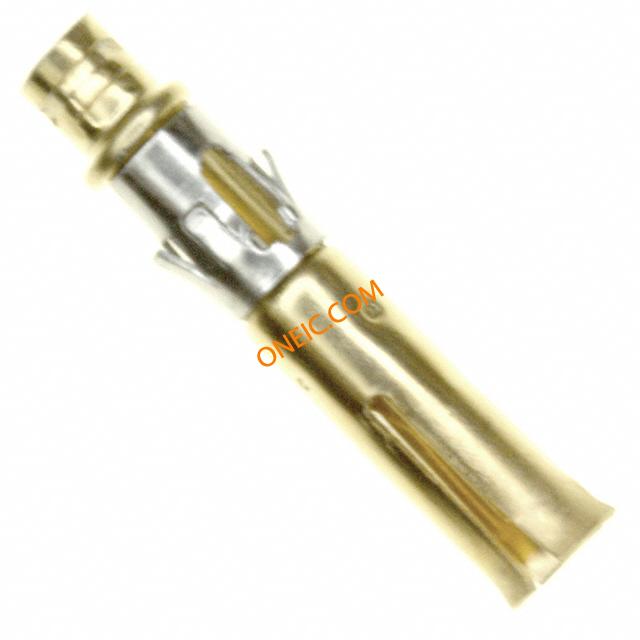

51565-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Multiple Coaxial Contacts (COAXICON) CONN SOCKET 26/28/30AWG GOLD Pin & Socket Connectors SUBMIN SOCKET 51565-3 Contact SKT Crimp ST Cable Mount Product Highlights:ContactSocketTerminate To Twisted PairWire/Cable Type = Solid, StrandedWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:RF, multi position, SUBMIN SOCKET |
| 分类 |
商业参数
| 其他名称 | A25149 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Not applicable / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 阻抗 | Non-Matched | 连接器阻抗 | 不匹配 |
机械参数
| 镀层 | Gold | 材料（通用） | Brass |
| 包装方式 | Bulk | 电缆类型 | Solid, Stranded |
| 导线线规 | 26-30 AWG | 端接方式 | Crimp |
| 触点尺寸 | 16 | 触头类型 | Power |
| 外壳表面处理 | 金 | 插针或插孔 | Socket |
| 外壳镀层 | Gold (30) over Nickel (50) | 连接器类型 | Connector Circular |
| 接触镀层 | Gold | 外壳材料（壳体） | Brass per MIL-C-50 |
| 触头材料 | Brass | 壳体材料 | 黄铜 |
| 面板安装类型 | 直式 | 主要材料 | 直式 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 导体材料 | Brass per QQ-B-626 | 接触件端接 | Crimp |
| 介电材料 | TPX | 镀层厚度（通用） | 30µin (0.76µm) |
| 中心触点表面处理 | 金 | 兼容外壳尺寸（如TM-700等） | 插针 |
| 中心触点镀层工艺 | Gold (30) over Nickel (50) | 供应商器件封装 | CPC, G Series, M Series, Metrimate |
| 接触镀层厚度 | 30 | 触点材料 - 配合 | Without |
| 线规或范围 - AWG | 30-26 | 线规或范围 - mm² | 0.05-0.15 [30-26] |
产品信息
| 备注 | A ferrule is required for each pin and socket.; Extraction Tool No. 305183 | 类型 | Coaxial |
| 连接器性别 | SKT | 系列 | COAXICON |
| 制造商全称 | AMP | 产品子类型 | Contact |
| 连接类型 | Twisted Pair | ||
