69690-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Punches & Dies DIE SUB MIN COAXICON TOOL DIE SUB MIN COAXICON |
| 分类 |
商业参数
| 产品 | Dies | 交货时间 | 98 Days |
| 子类别 | Assembly Tools | 标准包装规格 | 1 |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant By Exemption | ||
机械参数
| 电缆组 | RG-179, 187 | ||
产品信息
| 工具类型 | Die Set | 兼容工具 | 69365, 69710-1 |
| 行业别名 | 696901 | 适用产品/相关产品 | Contacts, 28 AWG |
相关型号
51563-3
te connectivity / amp
Conn Contact PIN ST Thru-Hole Gold Multiple Coaxial Contacts (COAXICON) CONN PIN SHORT STR 30-26AWG RF Connectors / Coaxial Connectors PIN SHORT SUBMIN. Multiple Coaxial Contacts (COAXICON) Product Highlights:ContactPinTerminate To Twisted PairWire/Cable Type = Solid, StrandedWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:RF, multi position, PIN, SHORT, SUBMIN.
226537-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Barrier Terminal Blocks SUBMIN PIN MULTIMATE Multiple Coaxial Contacts (COAXICON) CONN PIN COAXIAL/SHIELDED 26AWG Multiple Coaxial Contacts (COAXICON) Product Highlights:ContactPinTerminate To Coaxial Cable, Terminate To Shielded WireCable Type = Belden 9221, RD 316, RG 161, RG 174, RG 174DB, RG 179, RG 187, RG 187DB, RG 188, RG 316Wire Range = 0.12-0.15; [26] mm [AWG]Search Keywords:RF, multi position, SUB MIN PIN MULTIMATE
226537-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount RF Connectors Contact Pin 26 AWG 30 AU Multiple Coaxial Contacts (COAXICON) CONN PIN COAX AWG26 SHIELD GOLD Size 16 Male Circular Connector Contact, Crimp RF Connectors / Coaxial Connectors Contact Pin 26 AWG 30 AU Contact PIN Crimp ST Cable Mount Product Highlights:ContactPinTerminate To Coaxial Cable, Terminate To Shielded WireCable Type = 161, 174, 174DB, 179, 179A, 179B, 187, 187A, 187DB, 188, 188A, 316, Belden 9221, RD-316Wire/Cable Type = ShieldedSearch Keywords:RF, multi position, Contact;Pin;16;Coax;Gold;Commercial;Crimp;26AWG;Shielded;AMP 26 AWG Pin Shielded Wire Straight Body Style Multiple Coaxial Contact TE Connectivity 公 压接端接 圆形 连接器 触芯, 使用于CPC 和 G 系列以及 M 系列和 Metrimate 连接器 SUB MIN PIN MULTIMATE

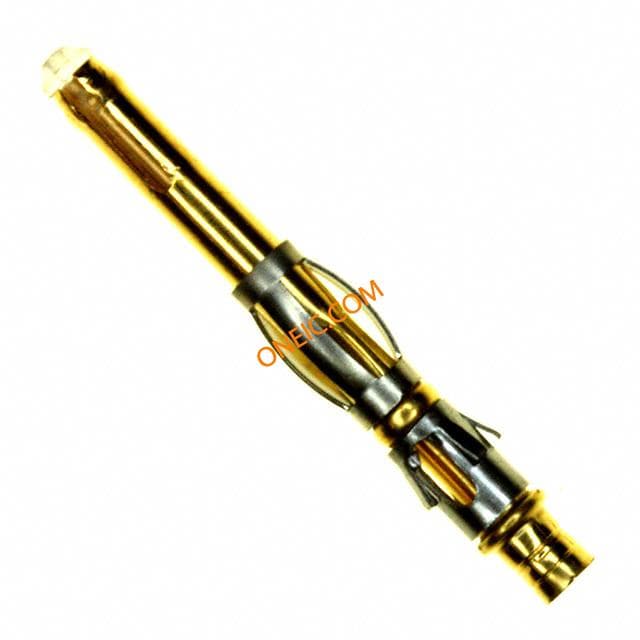

226537-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Multiple Coaxial Contacts (COAXICON) CONN PIN 26/28/30AWG SOLID GOLD RF Connectors / Coaxial Connectors SUB MIN PIN MULTI MATE SUB MIN PIN MULTI MATE

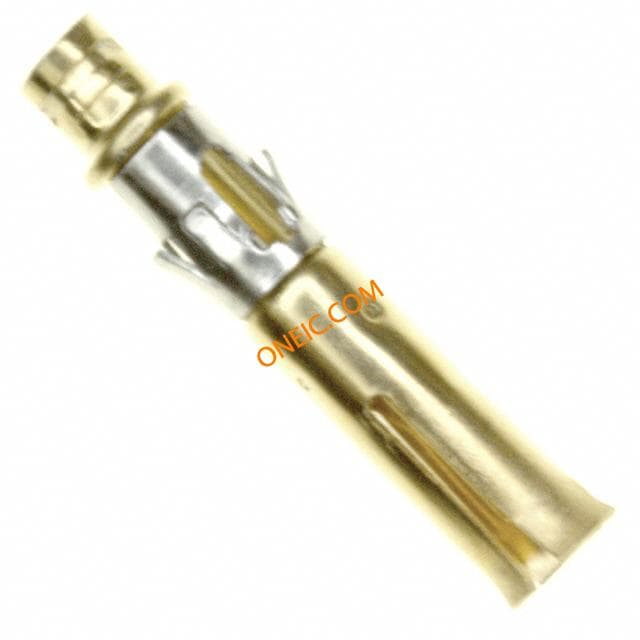

51565-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Multiple Coaxial Contacts (COAXICON) CONN SOCKET 26/28/30AWG GOLD Pin & Socket Connectors SUBMIN SOCKET 51565-3 Contact SKT Crimp ST Cable Mount Product Highlights:ContactSocketTerminate To Twisted PairWire/Cable Type = Solid, StrandedWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:RF, multi position, SUBMIN SOCKET

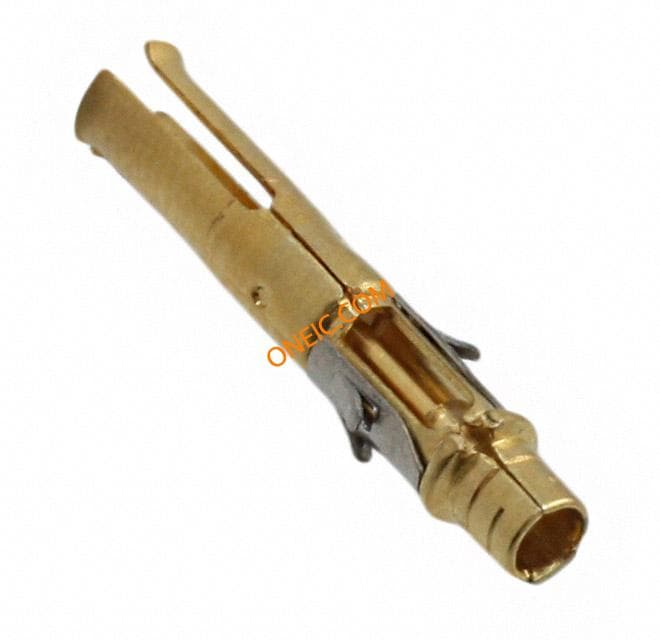

51565-1
