226537-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Barrier Terminal Blocks SUBMIN PIN MULTIMATE Multiple Coaxial Contacts (COAXICON) CONN PIN COAXIAL/SHIELDED 26AWG Multiple Coaxial Contacts (COAXICON) Product Highlights:ContactPinTerminate To Coaxial Cable, Terminate To Shielded WireCable Type = Belden 9221, RD 316, RG 161, RG 174, RG 174DB, RG 179, RG 187, RG 187DB, RG 188, RG 316Wire Range = 0.12-0.15; [26] mm [AWG]Search Keywords:RF, multi position, SUB MIN PIN MULTIMATE |
| 分类 |
商业参数
| 产品 | Barrier Terminal Blocks | 标准包装规格 | 100 |
| 产品类别 | Barrier Terminal Blocks | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 阻抗 | Non-Matched | 连接器阻抗 | 不匹配 |
机械参数
| 包装方式 | Bulk | 电缆类型 | Belden 9221, RD 316, RG 161, RG 174, RG 174DB, RG 179, RG 187, RG 187DB, RG 188 |
| 导线线规 | 26 AWG | 端接方式 | Crimp |
| 触点尺寸 | 16 | 触头类型 | Power |
| 插针或插孔 | Pin | 外壳镀层 | Gold (50) over Nickel (50) |
| 连接器类型 | Connector Circular | 接触镀层 | Gold Over Nickel |
| 外壳材料（壳体） | Brass per MIL-C-50 | 触头材料 | Beryllium Copper |
| 壳体材料 | 黄铜 | 主要材料 | 直式 |
| 端接样式 | 插针 | 导体材料 | Beryllium Copper per QQ-C-533 |
| 接触件端接 | Crimp | 介电材料 | TPX |
| 中心触点表面处理 | 金 | 中心触点镀层工艺 | Gold (50) over Copper (100) |
| 中心触点材料 | 铍铜合金 | 供应商器件封装 | CPC, G Series, M Series, Metrimate |
| 接触镀层厚度 | 50µin (1.27µm) | 触点材料 - 配合 | Without |
| 线规或范围 - mm² | 0.12-0.15; [26] | ||
产品信息
| 备注 | A ferrule is required for each pin and socket.; Extraction Tool No. 305183 | 类型 | Machined |
| 连接器性别 | PIN | 系列 | COAXICON |
| 制造商全称 | AMP | 产品子类型 | Contact |
| 连接类型 | Coaxial Cable, Shielded Wire | 适用/相关制造商 | CPC Connectors |
相关型号
69656-7
te connectivity / amp
Connector/Terminal-To-Tool Reference Hand Tools STR ACT DBL ACT HT COAXICON TOOL HAND STR DBL COAXICON STR ACT DBL ACT HT
202648-4
te connectivity / amp
Connector Accessories Rectangular Module Phenolic Black G Series Modular Connectors (A Multimate Product) CONN PIN MODULE 11POS G-SERIES Pin & Socket Connectors PIN MODULE 11P G-SERIES Connector Accessories Rectangular Module Phenolic Black Product Highlights:ModuleNumber of Positions = 11Phenolic Module MaterialPinPlugSearch Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate, PIN MODULE, 11 POSN, G-SERIES
213800-2
te connectivity / amp
Conn Housing PL 34 POS ST Loose Piece M Series Connectors M-SERIES PLUG HOUSING,34 POS Pin & Socket Connectors PLUG HOUSING 34 POS Conn Housing PL 34 POS ST Loose Piece Product Highlights:HousingNumber of Positions = 34Polyester Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace,
225088-3
te connectivity / amp
Cable Accessories Ferrule Barrier Terminal Blocks FERRULE CONN FERRULE CABLE 174DB TIN
202515-1
te connectivity / amp
Conn Housing PL 42 POS ST M Series Connectors CONN PLUG 42 POS MIXED PANEL MT TE Connectivity 42 Way Straight Male Multiway Connector Pin & Socket Connectors 42 POS BLOCK M Series Connectors Product Highlights:ConnectorNumber of Positions = 42Phenolic Housing MaterialPlugConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 42WAY Mseries,plug,42waymixedcontact TE Connectivity M 系列 5 行 42 路 直 公 面板安装 压接连接器外壳 42 POS BLOCK
205042-1
te connectivity / amp

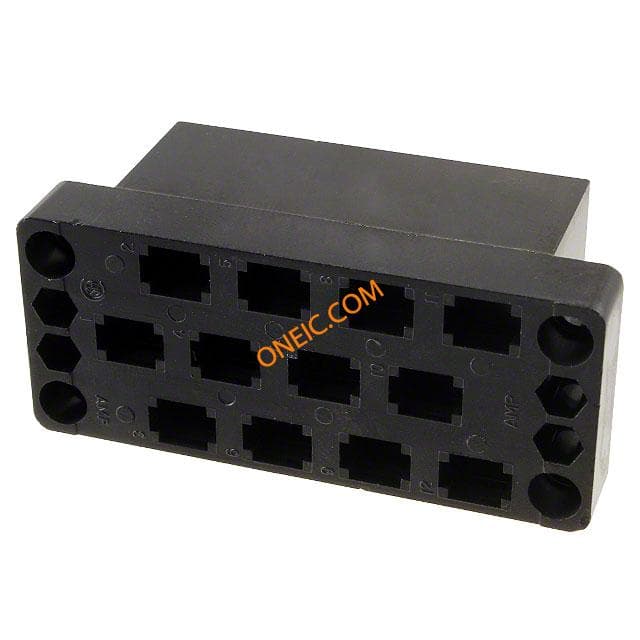

Conn Power M 12 POS ST Panel Mount 12 Terminal 1 Port M Series Connectors CONN PLUG 12POS PANEL MT M SERES Pin & Socket Connectors 12 PC. BLOCK M Series Connectors Product Highlights:ConnectorNumber of Positions = 12Phenolic Housing MaterialPlugConnector Type = High VoltageSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 12 PC. BLOCK
202515-3
te connectivity / amp

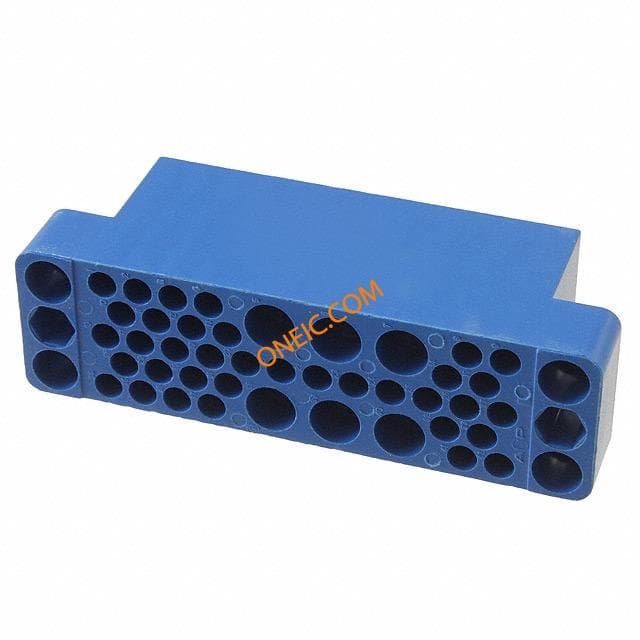

Conn Housing PL 42 POS Crimp ST Panel Mount M Series Connectors CONN PLUG BLOCK 42POS BLUE Pin & Socket Connectors 42-POS-BLOCK PLUG M Series Connectors Product Highlights:ConnectorNumber of Positions = 42Diallyl Phthalate Housing MaterialPlugConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 42 POS BLOCK
205689-2
te connectivity / amp

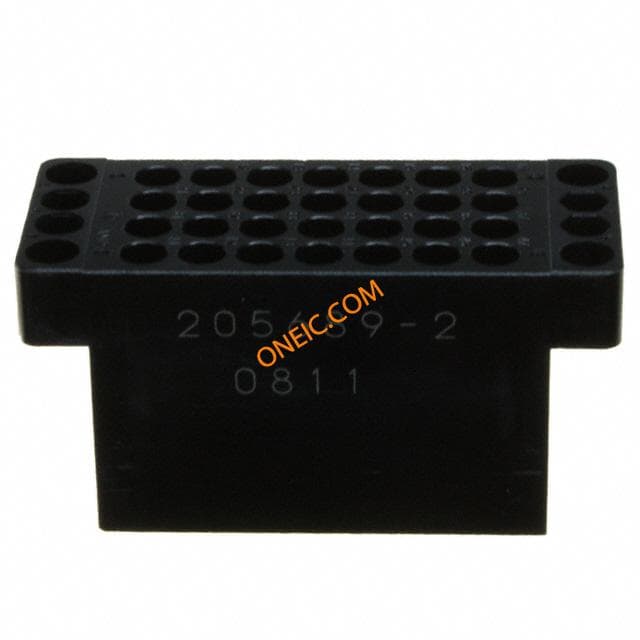

Conn Housing PL 28 POS 6.35mm ST M Series Connectors CONN PLUG 28 POS PANEL MT BLACK Pin & Socket Connectors PIN BLOCK 28 POS SPL PLUG 28P PNL MNT BLK Conn Housing PL 28 POS 6.35mm ST Product Highlights:ConnectorNumber of Positions = 28Phenolic Housing MaterialPlugConnector Type = High VoltageSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, PINBLOCK28POS.SPL. PIN BLOCK 28 POS. SPL.
225088-1
te connectivity / amp
Cable Accessories Ferrule Barrier Terminal Blocks FERRULE Multiple Coaxial Contacts (COAXICON) CONN FERRULE CABLE 196DB TIN FERRULE FERRULE Search Keywords:RF, multi position,
213427-1
te connectivity / amp

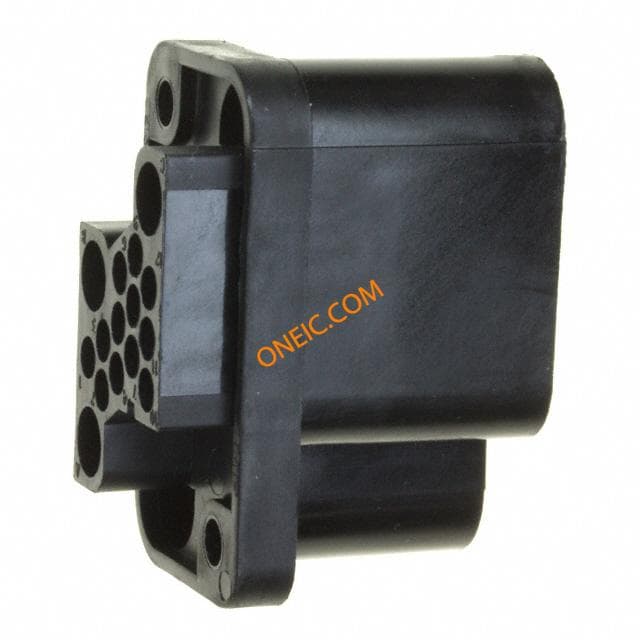

Conn Housing RCP 15 POS 5.08mm ST Metrimate Connectors CONN RECEPT 15 POS METRIMATE TE Connectivity 5.08mm 15 Way Straight Female Multiway Connector Pin & Socket Connectors RCPT HSG 3PWR 12 SGNL METRI Conn Housing RCP 15 POS 5.08mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = PowerNumber of Positions = 15ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, RECEPTACLE, 15WAY Housing15wayRecBlackMetrimate TE Connectivity 15路 5.08mm节距 直 母 RECPT HSG,3PWR,12 SGNL,METRI
202515-2
te connectivity / amp
M-SERIES PIN BLOCK,42 POS Pin & Socket Connectors PIN BLOCK 42 POS CONN PLUG M-SERIES 42POS
202515-5
te connectivity / amp
Conn Housing PL 42 POS Crimp ST Panel Mount Pin & Socket Connectors 42 POS. BLOCK CONN PLUG 42POS MINI M SERIES
91911-3
te connectivity / amp
Primuim Coax Dies Punches & Dies PREMIUM SDE DIE COAXICON TOOL DIE SET RG 174/188/316 CRIMP DIE, 354940-1 HAND CRIMP TOOL PREMIUM SDE DIE,COAXICON
202650-4
te connectivity / amp
Connector Accessories Rectangular Module Phenolic Black G Series Modular Connectors (A Multimate Product) PIN MODULE, 23 POSN, G-SERIES Pin & Socket Connectors 23POS PIN RCPTL Connector Accessories Rectangular Module Phenolic Black Product Highlights:ModuleNumber of Positions = 23Phenolic Module MaterialPinPlugSearch Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate,
69690
te connectivity / amp
Adapters; Crimping Heads And Die Sets Punches & Dies DIE SUB MIN COAXICON DIE SUB MIN COAXICON DIE SUB MIN
69710-1
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Hand Tools HAND TOOL W/O DIE TOOL HAND FRAME W/O DIE ASSY Straight action hand crimping tool SAHTW/OUTDIES Crimping tool, 69710-1, TE Connectivity TE Connectivity CERTI-CRIMP 系列 压接工具框架 SAHT W/OUT DIES
1-332056-0
te connectivity / amp
Cable Accessories CPC Ferrule Copper Multiple Coaxial Contacts (COAXICON) CONN FERRULE CPC COAXIAL Ferrule Sub Min Coaxicon RF Connector Accessories COAXICON FERRULE Cable Accessories CPC Ferrule Copper Product Highlights:FerruleCable Type = 161, 174, 179, 179A, 179B, 187, 187A, 188, 188A, 316, Belden 9221Ferrule Diameter = 2.84 mmWire Diameter = 2.84 mmSearch Keywords:RF, multi position, Ferrule;0.112in.;Copper;0.112in.Dia. Sleeve; 2.84mm TE Connectivity COAXICON 系列 13A 圆形 连接器 触芯, 使用于超微型印刷电路板插座 FERRULE, SUB MIN
69656-8
te connectivity / amp
Connector/Terminal-To-Tool Reference Hand Tools STR ACT DBL ACT HT COAXICON TOOL HAND STR DBL COAXICON STR ACT DBL ACT HT COAXICON
211149-1
te connectivity / amp

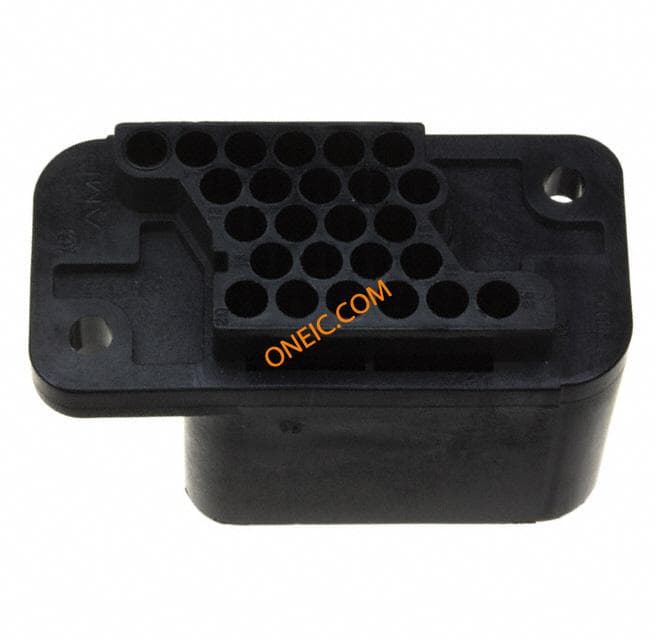

Conn Housing RCP 25 POS 5.08mm ST Metrimate Connectors CONN RECEPT 25 POS METRIMATE Housing Drawer 25 way Pin Metrimate Pin & Socket Connectors 25P PIN HOUSING Conn Housing RCP 25 POS 5.08mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = StandardNumber of Positions = 25ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, CONNECTOR, RECEPT 25 CONNECTOR,SOFTSHELL,METRIMATE,RECEPTACLE,25POSITION,STANDARDDRAWER TE Connectivity Metrimate 系列 5 行 5.08mm 节距 25 路 直 母 压接连接器外壳 PIN HSG,25 POSN,METRIMATE
