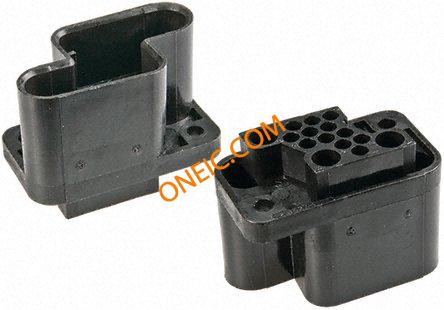

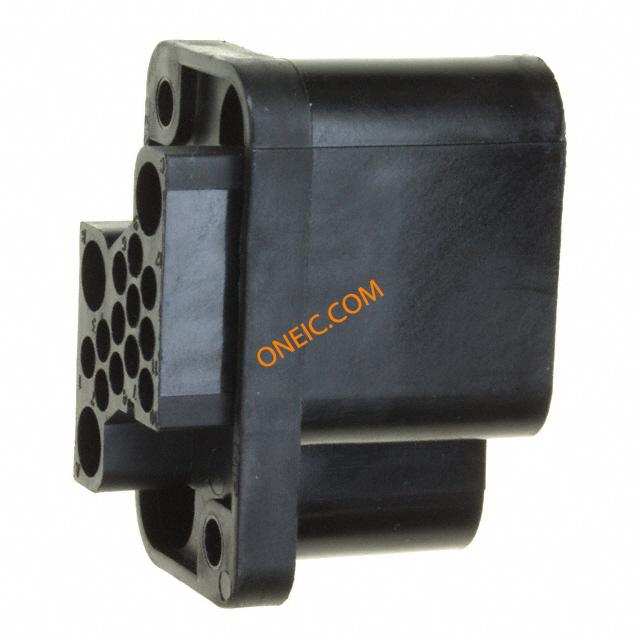

213427-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 15 POS 5.08mm ST Metrimate Connectors CONN RECEPT 15 POS METRIMATE TE Connectivity 5.08mm 15 Way Straight Female Multiway Connector Pin & Socket Connectors RCPT HSG 3PWR 12 SGNL METRI Conn Housing RCP 15 POS 5.08mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = PowerNumber of Positions = 15ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, RECEPTACLE, 15WAY Housing15wayRecBlackMetrimate TE Connectivity 15路 5.08mm节距 直 母 RECPT HSG,3PWR,12 SGNL,METRI |
| 分类 |
商业参数
| 其他名称 | 2134271 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电压 | 600.0 | 额定电压 | 600 V ac |
| 最大额定电流 | 14A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Black | 深度 | 40.77 mm |
| 间距 | 5.08 mm | 高度 | 30.68mm |
| 重量 | 0.02 | 包装方式 | Bulk |
| 触头类型 | Pin | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Housing |
| 安装样式 | Panel | 排数 | 5 |
| 连接器样式 | Drawer | 连接器用途 | Drawer |
| 本体材料 | :Glass Reinforced Polyester | 壳体材料 | Polyester GF |
| 总长度 | 54.61 mm | 安装特性 | Without |
| 传感器连接器 | Without | 触点数 | 15 |
| 位数 | 15 | 中心触点表面处理 | 5.08 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Metrimate |
| 产品特性 | Guide Pin | 编码、键控 | No |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 抽屉总数 | Power | 其他规格 | No |
| 适用产品/相关产品 | :Metrimate Series Power & Coaxial Size 8 Pin Contacts | ||
环境参数
| 工作温度 | -55C to 130C | ||
