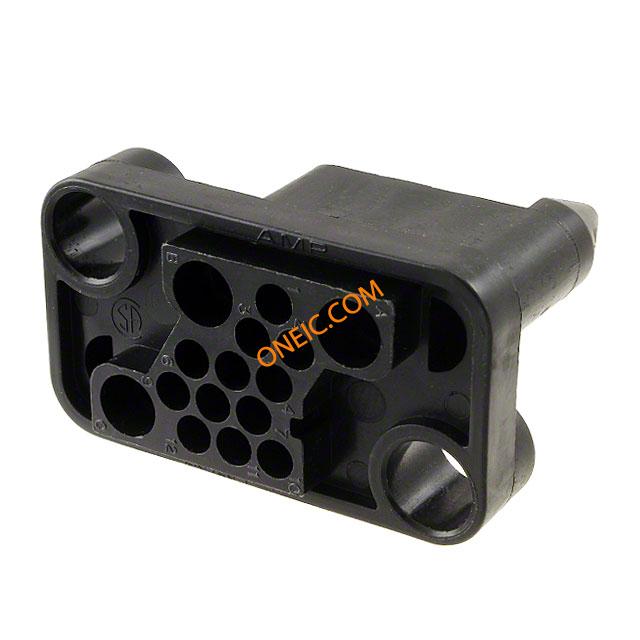

213426-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 15 POS 5.08mm ST Metrimate Connectors PLG HSG,3 POWR,12 SGNL,METRI Housing 15 way socket Metrimate Drawer Pin & Socket Connectors PLG 3 POWR12 SGNL Conn Housing PL 15 POS 5.08mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = PowerNumber of Positions = 15PlugSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, PLGHSG,3POWR,12SGNL,METRI TE Connectivity Metrimate 系列 5 行 5.08mm 节距 15 路 直 公 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 无铅定义 | Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl | UL档案号 | E28476 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 认证机构标志 | 是 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 电压 | 600.0 | 额定电压 | 600 V |
| 供电电压 | 600 | 最大额定电流 | 14/Contact A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Black | 深度 | 1.61in |
| 间距 | 5.08 mm | 宽度 | 2.162in |
| 高度 | 30.68 mm | 长度 | 1.208in |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 电缆类型 | 分离式导线 | 方向 | 直 |
| 本体尺寸 | .031 – .091 in, .8 – 2.3 mm | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Housing | 安装样式 | Panel |
| 排数 | 5 | 连接器样式 | Drawer |
| 连接器用途 | Drawer | 高度（英寸） | 1.208 |
| 总宽度 | 2.162 | 壳体材料 | Polyester GF |
| 总长度 | 54.91 mm | 安装特性 | Without |
| 包装数量 | 1 | 面板安装类型 | 带有 |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 传感器连接器 | Without | 触点数 | 15 |
| 位数 | 15 | 中心触点表面处理 | 5.08 |
| 兼容外壳尺寸（如TM-700等） | 母端护套 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Metrimate |
| 产品特性 | Guide Pin | 编码、键控 | No |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 抽屉总数 | Power | 其他规格 | No |
| 适用产品/相关产品 | PCB Connector | ||
环境参数
| 工作温度 | -55C to 130C | ||
文档与媒体
相关型号
66428-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors 30-26 III+ SKT 30AU Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = 1.02 - 1.52 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, 30-26AWG Contact;Socket;16;Brass;Signal;Gold(30)overNickel(50);30-26AWG III+ SKT,30-26,30AU/FL,LP
66360-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece CONN SOCKET AWG14-18 GOLD CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 14AWG Standard Circular Contacts GOLD SKT 18-14 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 18-14AWG, CRIMP Contact,Multimate;Socket;16;Brass;Signal;GoldoverNickel;18-14AWG MULTIMATE Type III+ Series 18-14 AWG Discrete Wire Crimp Signal Socket Assembly TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 18 → 14 AWG 线规格 SOCKET ASSEMBLY, LOOSE PIECE, TYPE III+
202508-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 16-18AWG GOLD CRIMP Contact Crimp Socket 18-16AWG Multimate Pin & Socket Connectors CONTACT SOCKET ASSY. Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.67 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 18-16AWG, CRIMP Socket,Signal,TypeII,Crimp,18-16AWG TE Connectivity Type II 系列 母 压接接线端子, 压接, 镀金镀镍触点 CONTACT SOCKET ASSY.
66360-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 14-18AWG GOLD CRIMP Multimate III Socket Contact 18-14 AWG Pin & Socket Connectors III+ SKT18-1415LP Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (15) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 18-14AWG, CRIMP Contact;Socket;16;Brass;Signal;Gold(15)overNickel(50);18-14AWG Contact; female; 0.8÷2mm2; 14÷18AWG; Type III+; gold plated; 13A AWG 18-14 Gold over Nickel Crimp Socket Contacts for CPC Series 1 Connectors III+ SKT,18-14,15AU/FL,LP
193846-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 14 AWG SILVER CRIMP Socket contact, Multimate II, 14 AWG Pin & Socket Connectors SCKT ASSY SZ 16 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketHigh CurrentSilver Contact Mating Area PlatingWire Range = 2.00-2.15² [14] mm [AWG]Copper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, CRIMP, SOCKET, 14AWG CONTACT,SOCKET,HIGHCURRENT,14AWG,TYPEII,TYPEIII+ SKT ASSY.
1-66358-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SKT .062 14-18AWG AU CRIMP CONN SOCKET AWG14-18 GOLD CRIMP Multimate III Socket Contact 18-14AWG III+ SKT;18-14;30AU/FL; REEL of 4000 Pin & Socket Connectors GOLD SKT 18-14 REEL Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+SKT,18-14,30AU/FL,REELof4000 III+ SKT,18-14,30AU/FL,STRIP
213427-1
te connectivity / amp
Conn Housing RCP 15 POS 5.08mm ST Metrimate Connectors CONN RECEPT 15 POS METRIMATE TE Connectivity 5.08mm 15 Way Straight Female Multiway Connector Pin & Socket Connectors RCPT HSG 3PWR 12 SGNL METRI Conn Housing RCP 15 POS 5.08mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = PowerNumber of Positions = 15ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, RECEPTACLE, 15WAY Housing15wayRecBlackMetrimate TE Connectivity 15路 5.08mm节距 直 母 RECPT HSG,3PWR,12 SGNL,METRI
1-66360-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate Contacts CONN SOCKET 14-18AWG TIN CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 14AWG Pin & Socket Connectors TIN SOCKET 18-14 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketBright Tin Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT SOCKET, TIN, 1.5-2.0MM MULTIMATETypeIII+Contact,Socket,18-14AWG,Crimp,Tin Contact; female; 0.8÷2mm2; 14÷18AWG; Type III+; tinned; crimped TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 18 → 14 AWG 线规格 III+ SKT,18-14,TIN ,LP
1-66331-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SKT .062 20-24AWG TIN CRIMP CONN SOCKET 20-24AWG TIN CRIMP Pin & Socket Connectors SKT 24-20 BR/SN SIG Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketBright Tin Contact Mating Area Plating MaterialWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Multimate Type III+ Series 24-20 AWG Wire to Cable Crimp Signal Socket Contact III+ SKT,24-20,TIN,STRIP
66399-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 20-24AWG GOLD CRIMP Contact female crimp 24-20AWG Multimate Pin & Socket Connectors III+ SKT24-2015LP Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;Socket;16;Brass;Signal;Gold(15)overNickel(50);24-20AWG TE Connectivity Type III+ 系列 母 压接接线端子, 压接, 镀金镀镍触点 III+ SKT,24-20,15AU/FL,LP
66100-8
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 16-18AWG GOLD CRIMP Pin & Socket Connectors SIZE 16 SOCKET Reel of 4000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSSTR,III+SKT,18-16,15AU/FL,STRIP MULTIMATE Type III+ Series 18-16 AWG Discrete Wire Crimp Signal Socket Contact III+ SKT,18-16,15AU/FL,STRIP
796966-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SKT HI CURRENT 16-18 CRIMP Socket contact, Multimate II, 18-16 AWG Pin & Socket Connectors SKT ASSY,18-16 AWG, HI CURRENT Multimate Product Highlights:SocketHigh CurrentSilver Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Copper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT,SOCKET,HIGHCURRENT,18-16AWG,TYPEII,TYPEIII+ SKT ASSY,18-16 AWG,HI CURRENT
66108-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 24-26AWG GOLD CRIMP Heavy Duty Power Connectors TYPE III + SKT 26-24 15AU/FL STRIP Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmCopper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,26-24,15AU/FL,STRIP
66331-8
TE Connectivity / AMP
Standard Circular Contacts SKT 24-20 30AWG REEL Multimate CONN SKT .062 20-24AWG AU CRIMP CONN SOCKET 20-24AWG GOLD CRIMP Contact SKT Crimp ST Cable Mount Strip Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSSTR,III+SKT,24-20,30AU/FL,STRIP 20-24 AWG Gold over Nickel Crimp Socket Contact for CPC Series 1 Connectors TE Connectivity Type III+ 系列 母 压接接线端子, 压接, 镀金触点 III+ SKT,24-20,30AU/FL,STRIP
1-66358-8
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reverse Reel Multimate CONN SKT .062 14-18AWG TIN CRIMP Pin & Socket Connectors III+ SKT,18-14,TIN Multimate Product Highlights:SocketBright Tin Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmPhosphor Bronze Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,18-14,TIN ,STRIP
3-66104-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET 20-24AWG TIN CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 24 to 20AWG Pin & Socket Connectors III+ SKT,24-20,TIN Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketBright Tin Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Connec III+SKT,24-20,TIN-LEAD Type III+ Series SKT24-20 Bright Tin Strip Pin & Socket Connectors TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ SKT,24-20,TIN ,STRIP
1-66563-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SKT .062 20-24AWG TIN CRIMP CONN SOCKET 20-24AWG TIN CRIMP Pin & Socket Connectors SKT 24-20 BR/SN SIG Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketTin over Nickel Contact Mating Area Plating MaterialWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.52 - 3.05 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,24-20,TIN,STRIP
193846-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Tape Mounted Multimate CONN SKT POWER 14AWG AG CRIMP Multimate Product Highlights:SocketHigh CurrentSilver Contact Mating Area PlatingWire Range = 2.00-2.15² [14] mm [AWG]Copper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts PIN ASSY.193846-1 TAPE MOUNT
193535-1
te connectivity / amp

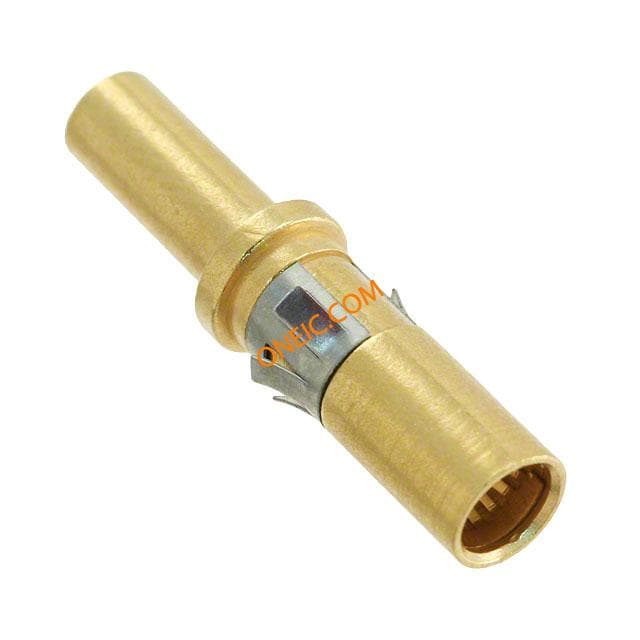

Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SKT PWR 12-14AWG CRIMP GOLD Pin & Socket Connectors SKT ASSY. ,POWER #12-14 AWG 193535-1 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketHigh CurrentGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 2.00-3.00² [14-12] mm [AWG]Copper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts SKT ASSY. ,POWER, #12-14 AWG
