点击放大查看

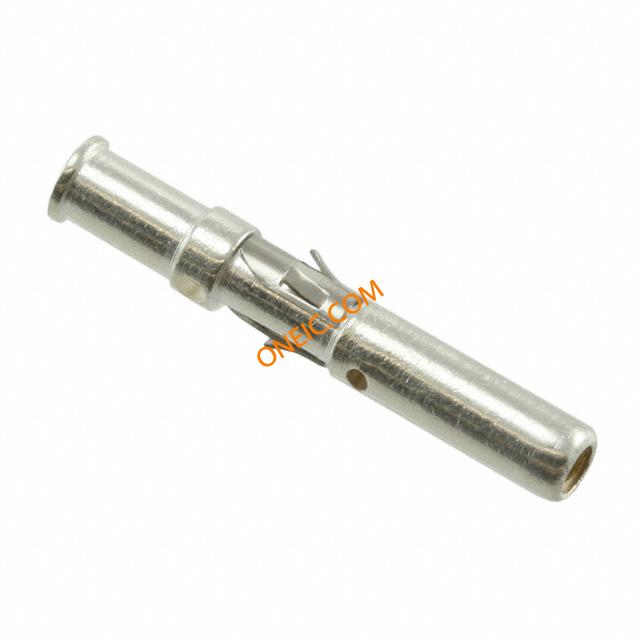

193846-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 14 AWG SILVER CRIMP Socket contact, Multimate II, 14 AWG Pin & Socket Connectors SCKT ASSY SZ 16 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketHigh CurrentSilver Contact Mating Area PlatingWire Range = 2.00-2.15² [14] mm [AWG]Copper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, CRIMP, SOCKET, 14AWG CONTACT,SOCKET,HIGHCURRENT,14AWG,TYPEII,TYPEIII+ SKT ASSY. |
| 分类 |
商业参数
| 商标名 | Multimate | 其他名称 | 1938461 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85411000 | ||
电气参数
| 输出电流 | Socket | 最大额定电流 | :23A |
机械参数
| 间距 | Not Required mm | 重量 | 0.00068 |
| 镀层 | Silver | 直径 | 3.25 mm |
| 材料（通用） | Copper Alloy | 包装方式 | Loose Piece |
| 导线类型 | Discrete | 导线线规 | 14 AWG |
| 端接方式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | Power | 引脚直径 | 0.062in. |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Silver Over Nickel |
| 安装样式 | Cable | 触头材料 | Copper Alloy |
| 壳体材料 | Not Required | 总长度 | 19.8 mm |
| 框架材料 | StainlessSteel | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 1 POS |
| 接触件尾部长度 | 16 | 接触件端接 | Crimp |
| 镀层厚度（通用） | 200µin (5.08µm) | 线规或范围 - AWG | 14 |
产品信息
| 类型 | Power | 等级 | Commercial |
| 连接器性别 | SKT | 系列 | Type II, Type III+ |
| 制造商全称 | Multimate | 产品子类型 | Contacts |
| 端口数 | 1 Port | 适用产品/相关产品 | Multimate Connector |
文档与媒体
相关型号
201692-2
te connectivity / amp
Conn Housing PL 104 POS 3.81mm Crimp ST Panel Mount Loose Piece M Series Connectors CONN PLUG 104POS STD M SERIES Pin & Socket Connectors CTR. FASTENER PLUG BLOCK-104 Conn Housing PL 104 POS 3.81mm Crimp ST Panel Mount Loose Piece Product Highlights:HousingNumber of Positions = 104Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, CTR. FASTENER PLUG BLOCK-104
194279-1
te connectivity / amp
Conn Housing RCP 11 POS ST Heavy Duty Power Connectors HOUSING RCPT 11 POS Drawer Connectors, High Current CONN HOUSING RCPT 11POS Drawer Connectors, High Current Product Highlights:HousingConnector Type = ReceptacleNumber of Positions = 11Without 6/32 InsertSearch Keywords:Special Application, Precision Pin and Socket, cabled power, Card Edge, Board-to-Board, Power, Wire-to-Board, AMPOWER HOUSING,RCPT,11 POS
601967-1
te connectivity / amp
Hand Tool For High Current Products, Circular Plastic Connectors Crimpers CRIMPING TOOL M22520/1-01 CRIMPING TOOL M22520/1-01 Crimper,Circular,4/8Indent,MIL-C Connector Accessories Crimp Hand Tool 4/8 INDENT HAND CRMP TOOL, WITHOUT TURRET, SCREW MACHINED CONTACTS Crimper;Circular;4/8Indent;MIL-C-22520/1-01;RequiresPositionerorTurretHead
208210-1
te connectivity / amp
SKT HSG,19 POSN,METRIMATE Pin & Socket Connectors SKT HSG 19 POSN METRIMATE CONN SOCKET HSNG 19POS PNL MNT SKT HSG,19 POSN,METRIMATE Search Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp,
202516-3
te connectivity / amp
Conn Power SKT 42 POS ST Panel Mount 42 Terminal 1 Port M Series Connectors CONN HOUSING COAXI SKT 42POS BLU Pin & Socket Connectors 42 POS F BLOCK RECP Conn Power SKT 42 POS ST Panel Mount 42 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 42Diallyl Phthalate Housing MaterialReceptacleConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 42 POS. FEMALE RECP. BLOCK
194280-1
te connectivity / amp
Conn Housing PL 28 POS ST Heavy Duty Power Connectors HOUSING PLUG 28 POS Drawer Connectors, High Current CONN PLUG HOUSING 28POS Drawer Connectors, High Current Product Highlights:HousingConnector Type = PlugNumber of Positions = 28Without 6/32 InsertSearch Keywords:Special Application, Precision Pin and Socket, cabled power, Card Edge, Board-to-Board, Power, Wire-to-Board, AMPOWER HOUSING,PLUG,28 POS
305183
te connectivity / amp
Straight Action Hand Tool Hand Tools EXTRACTION TOOL CONTACT EXTRACTION TOOL Type III + contacts extraction tool EXTRACTION TOOL, SERIES 1 EXTRACTIONTOOLFORCPCCONNECTORSWITHMULTIMATECONTACTS Tool: for demounting of terminals; terminals; 115mm Extraction tool, 305183, TE Connectivity TE Connectivity CPC, M 系列 压接拔取工具 , 适用于26 → 14AWG 压接 触点 EXTRACT TOOL TYPE 2 20-16
194281-1
te connectivity / amp
Conn Housing RCP 28 POS ST Heavy Duty Power Connectors HOUSING RCPT 28 POS Drawer Connectors, High Current CONN RCPT HOUSING 28POS Drawer Connectors, High Current Product Highlights:HousingConnector Type = ReceptacleNumber of Positions = 28Without 6/32 InsertSearch Keywords:Special Application, Precision Pin and Socket, cabled power, Card Edge, Board-to-Board, Power, Wire-to-Board, AMPOWER HOUSING,RCPT,28 POS
201692-3
te connectivity / amp
Conn Housing PL 104 POS 3.81mm Crimp ST Panel Mount Loose Piece M Series Connectors CTR FASTERNER PLUG BLOCK,104P IC & Component Sockets CTR FASTERNER PLUG BLOCK 104P Conn Housing PL 104 POS 3.81mm Crimp ST Panel Mount Loose Piece Product Highlights:HousingNumber of Positions = 104Diallyl Phthalate Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace,
212608-1
te connectivity / amp
Conn Housing RCP 4 POS 5.08mm ST Panel Mount Metrimate Connectors CONN PLUG 4 POS METRIMATE BLACK Housing 4 way socket Metrimate Drawer Pin & Socket Connectors 4P PLUG HOUSING Conn Housing RCP 4 POS 5.08mm ST Panel Mount Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = StandardNumber of Positions = 4PlugSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, PLUG, PANEL, 4WAY PLUGHSG,4POSN,METRIMATE TE Connectivity Metrimate 系列 5.08mm 节距 4 路 直 公 压接连接器外壳 PLUG HSG,4 POSN,METRIMATE

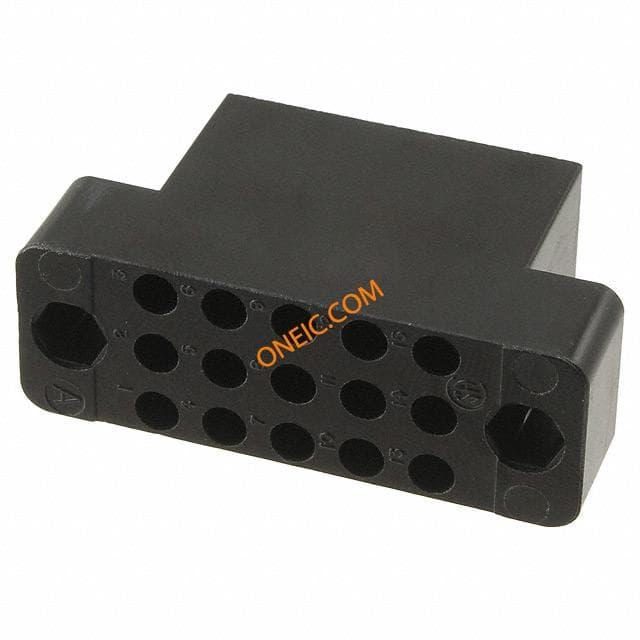

205606-3
te connectivity / amp
Conn Housing RCP 15 POS 5.08mm ST M Series Connectors 15 POS. SOC. BLOCK Pin & Socket Connectors 15P RECPT HSG
205690-2
te connectivity / amp
Conn Power F 28 POS 6.35mm ST Panel Mount 28 Terminal 1 Port M Series Connectors CONN RECEPT BLOCK 28POS M SERIES Pin & Socket Connectors SOC BLOCK 28 POS SPL RECEPT BLOCK 28 POS Conn Power F 28 POS 6.35mm ST Panel Mount 28 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 28Phenolic Housing MaterialReceptacleConnector Type = High VoltageSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, SOC.BLOCK28POS.SPL. null SOC. BLOCK 28 POS. SPL.
203956-2
te connectivity / amp
Conn Housing PL 36 POS ST Panel Mount Loose Piece M Series Connectors BLOCK, SOCKET, 36 POS. Housing plug 36 way M series Pin & Socket Connectors BLOCK SOCKET 36 POS. Conn Housing PL 36 POS ST Panel Mount Loose Piece Product Highlights:HousingNumber of Positions = 36Phenolic Housing MaterialPlugConnector Type = PostedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, HOUSINGPLUG36WAY TE Connectivity M 系列 4 行 36 路 直 公 压接连接器外壳
205076-2
te connectivity / amp
Conn Housing PL 36 POS Crimp ST Panel Mount Loose Piece M Series Connectors CONN PLUG HOUSING 36POS TE Connectivity 36 Way 4 Row Straight Panel Mount Male Multiway Connector Pin & Socket Connectors 36P BLOCK AUTO-WIRE M Series Connectors Product Highlights:HousingNumber of Positions = 36Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, Plug36wayPin/socketM-Series 36 POS. BLOCK AUTO-WIRE
201692-4
te connectivity / amp
Conn Housing PL 104 POS 3.81mm Crimp ST Panel Mount Loose Piece M Series Connectors CONN HOUSING PLUG 104POS BLACK TE Connectivity 3.81mm 104 Way Straight Male Multiway Connector Pin & Socket Connectors PLUG 104P Conn Housing PL 104 POS 3.81mm Crimp ST Panel Mount Loose Piece Product Highlights:HousingNumber of Positions = 104Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 104WAY InterconnectPlugHousing;Phenolic;Black;Standard;104;AmpBrand,MSeries TE Connectivity M 系列 3.81mm 节距 104 路 直 公 压接连接器外壳 CNTR FASTENER PLUG BLOCK,104P
202516-1
te connectivity / amp
Conn Power SKT 42 POS ST Panel Mount 42 Terminal 1 Port M Series Connectors CONN HOUSING COAXI SKT 42POS BLK Pin & Socket Connectors 42 POS FEM RECP BLOC Conn Power SKT 42 POS ST Panel Mount 42 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 42Phenolic Housing MaterialReceptacleConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 42 POS FEM RECP BLOCK
213426-1
te connectivity / amp
Conn Housing PL 15 POS 5.08mm ST Metrimate Connectors PLG HSG,3 POWR,12 SGNL,METRI Housing 15 way socket Metrimate Drawer Pin & Socket Connectors PLG 3 POWR12 SGNL Conn Housing PL 15 POS 5.08mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = PowerNumber of Positions = 15PlugSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, PLGHSG,3POWR,12SGNL,METRI TE Connectivity Metrimate 系列 5 行 5.08mm 节距 15 路 直 公 面板安装 压接连接器外壳

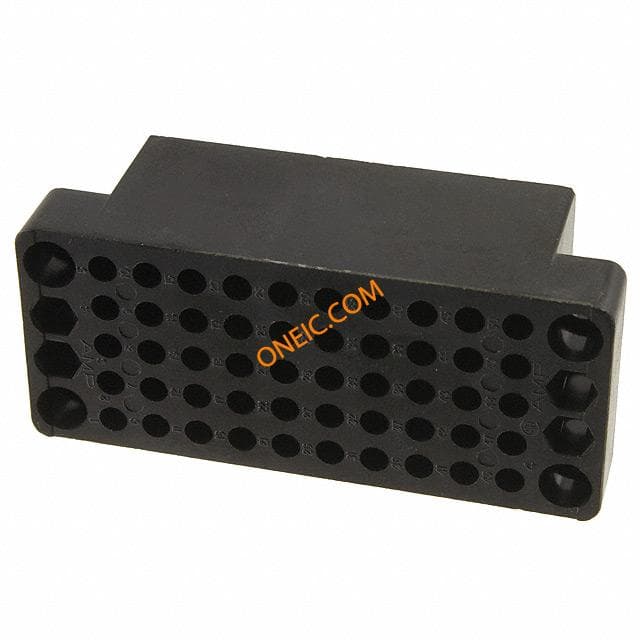

203622-2
