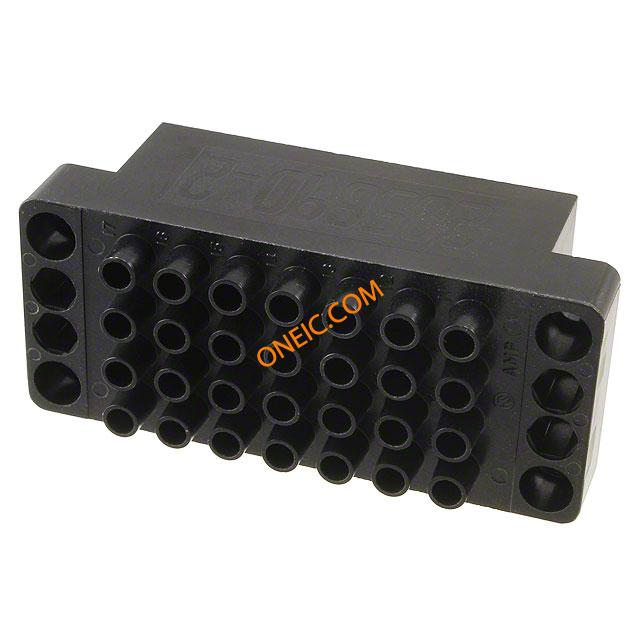

205690-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power F 28 POS 6.35mm ST Panel Mount 28 Terminal 1 Port M Series Connectors CONN RECEPT BLOCK 28POS M SERIES Pin & Socket Connectors SOC BLOCK 28 POS SPL RECEPT BLOCK 28 POS Conn Power F 28 POS 6.35mm ST Panel Mount 28 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 28Phenolic Housing MaterialReceptacleConnector Type = High VoltageSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, SOC.BLOCK28POS.SPL. null SOC. BLOCK 28 POS. SPL. |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 212 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 1.8 kVAC | I/O高电平电压 | Yes |
| 额定交流电压 | 1800 | ||
机械参数
| 颜色 | Black | 间距 | 6.35 mm |
| 宽度 | 28.19 mm [ 1.1098 in ] | 高度 | 65.91 mm [ 2.595 in ] |
| 长度 | 28.45 mm [ 1.12 in ] | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 触点形式 | No |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 连接器类型 | High Voltage | 安装样式 | Panel |
| 排数 | 4 | 外壳材料（壳体） | 母端, 母端 |
| 连接器用途 | Receptacle | 壳体材料 | Phenolic |
| 安装特性 | None | 包装数量 | 1 |
| 面板安装类型 | 带有 | 连接器间距 | 6.35 |
| 端接样式 | 插座 | 触点数 | 28 |
| 位数 | 28 | 兼容外壳尺寸（如TM-700等） | 标准 75 位硬件 |
| 中心触点材料 | Yes | 第一连接器安装类型 | Panel |
产品信息
| 备注 | Quantity may be any combination of either, Type II, Type III+, or Subminiature | 类型 | Power |
| 连接器性别 | F | 产品特性 | Jackscrew |
| 产品子类型 | Connector | 适用/相关制造商 | Type II, Type III+, Subminiature Coaxicon |
环境参数
| 工作范围 | 不密封 | 工作温度 | -55 – 150 °C [ -67 – 302 °F ] |
相关型号

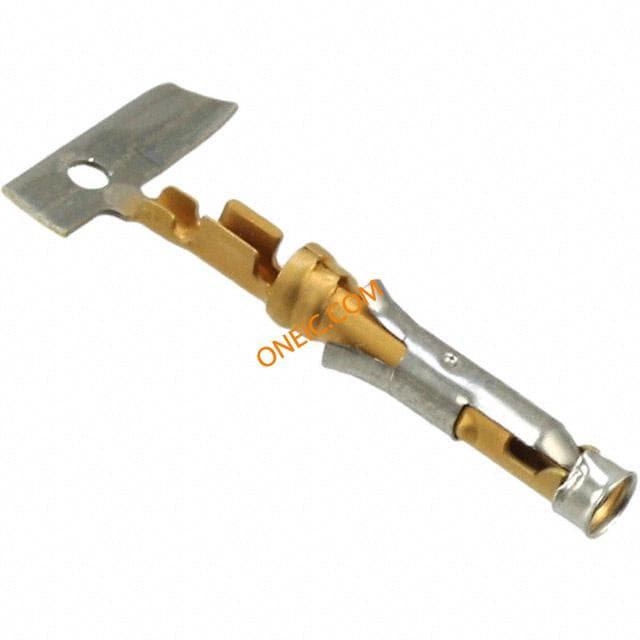

66428-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors 30-26 III+ SKT 30AU Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = 1.02 - 1.52 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, 30-26AWG Contact;Socket;16;Brass;Signal;Gold(30)overNickel(50);30-26AWG III+ SKT,30-26,30AU/FL,LP
66183-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 20-26AWG GOLD SOLDER Contact Solder Socket 26-20AWG Multimate Pin & Socket Connectors CONTACT PINS .062 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (30) Contact Mating Area PlatingWire Range = 0.12-0.50² [26-20] mm [AWG]Copper Alloy Contact MaterialGold Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 26-20AWG, SOLDER Contact,Multimate;Socket;16;CopperAlloy;Signal;GoldoverNickel;Solder;26-20AWG MULTIMATE Type III+ Series 26-20 AWG Discrete Wire Solder Signal Socket Assembly Solder contact female, 66183-1, TE Connectivity TE Connectivity Type III+ 系列 母 压接接线端子, 焊接, 镀金镀镍触点 III+ SKT,SOLDER,30AU,10AU FLAS
66360-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece CONN SOCKET AWG14-18 GOLD CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 14AWG Standard Circular Contacts GOLD SKT 18-14 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 18-14AWG, CRIMP Contact,Multimate;Socket;16;Brass;Signal;GoldoverNickel;18-14AWG MULTIMATE Type III+ Series 18-14 AWG Discrete Wire Crimp Signal Socket Assembly TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 18 → 14 AWG 线规格 SOCKET ASSEMBLY, LOOSE PIECE, TYPE III+

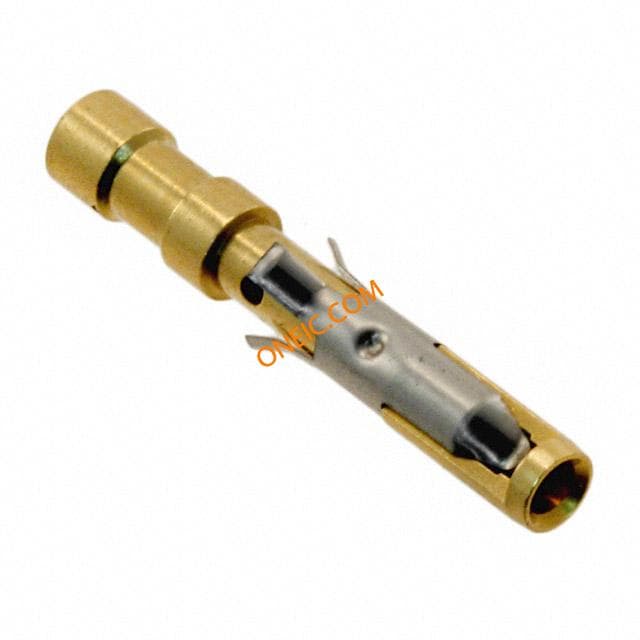

202508-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 16-18AWG GOLD CRIMP Contact Crimp Socket 18-16AWG Multimate Pin & Socket Connectors CONTACT SOCKET ASSY. Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.67 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 18-16AWG, CRIMP Socket,Signal,TypeII,Crimp,18-16AWG TE Connectivity Type II 系列 母 压接接线端子, 压接, 镀金镀镍触点 CONTACT SOCKET ASSY.
66360-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 14-18AWG GOLD CRIMP Multimate III Socket Contact 18-14 AWG Pin & Socket Connectors III+ SKT18-1415LP Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (15) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 18-14AWG, CRIMP Contact;Socket;16;Brass;Signal;Gold(15)overNickel(50);18-14AWG Contact; female; 0.8÷2mm2; 14÷18AWG; Type III+; gold plated; 13A AWG 18-14 Gold over Nickel Crimp Socket Contacts for CPC Series 1 Connectors III+ SKT,18-14,15AU/FL,LP

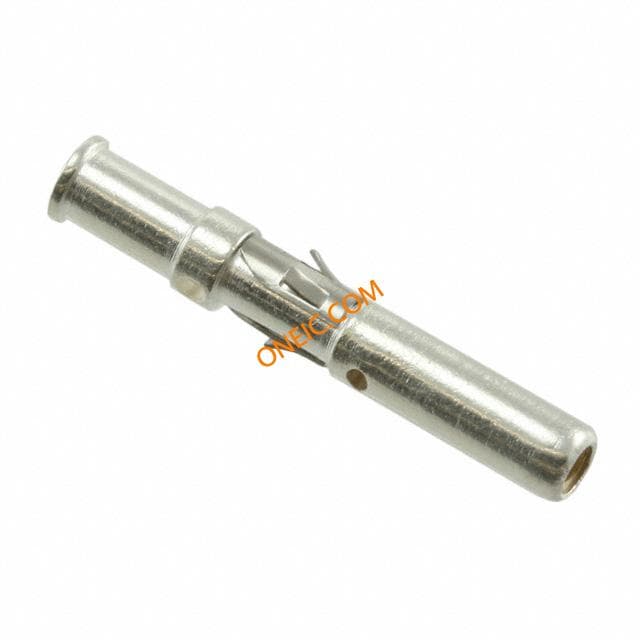

193846-1
