点击放大查看

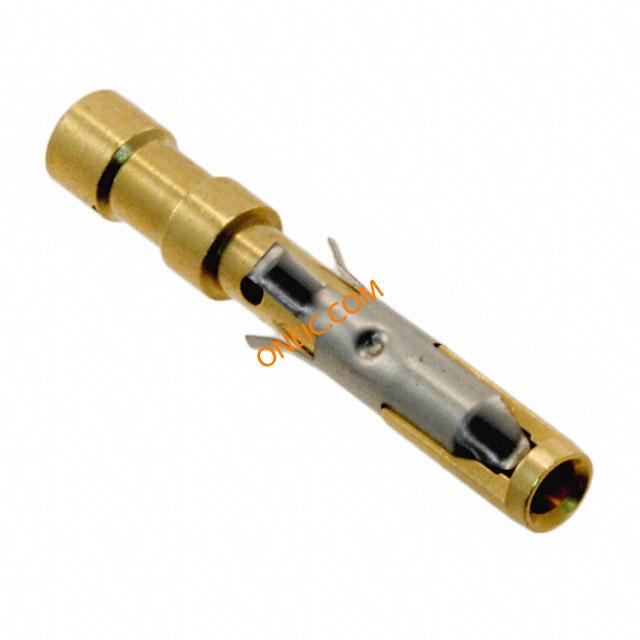

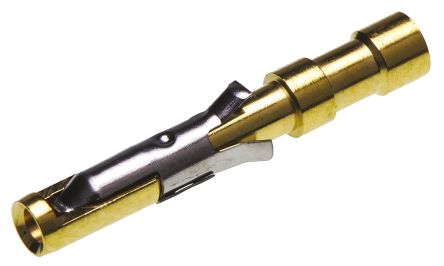

202508-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 16-18AWG GOLD CRIMP Contact Crimp Socket 18-16AWG Multimate Pin & Socket Connectors CONTACT SOCKET ASSY. Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.67 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 18-16AWG, CRIMP Socket,Signal,TypeII,Crimp,18-16AWG TE Connectivity Type II 系列 母 压接接线端子, 压接, 镀金镀镍触点 CONTACT SOCKET ASSY. |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 最大额定电流 | 13 A | ||
机械参数
| 重量 | 0.002 | 镀层 | Gold |
| 材料（通用） | Copper Alloy | 包装方式 | Bulk |
| 出线方向 | No | 导线线规 | 16-18 AWG |
| 端接方式 | Crimp | 触点形式 | 1Signal |
| 触头类型 | Signal | 安装类型 | Straight |
| 插针或插孔 | Socket | 外壳镀层 | Not Required |
| 连接器类型 | Connector Circular | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 触头材料 | Brass |
| 总长度 | 20.19 mm | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 1 POS |
| 接触件端接 | Crimp | 镀层厚度（通用） | 30µin (0.76µm) |
| 线规或范围 - AWG | 18-16 | ||
产品信息
| 类型 | Machined | 连接器性别 | SKT |
| 系列 | Multimate Type II | 产品子类型 | Contacts |
| 射频系列/标准 | 202508 | 适用产品/相关产品 | :G Series, M Series, CPC Connectors |
文档与媒体
相关型号

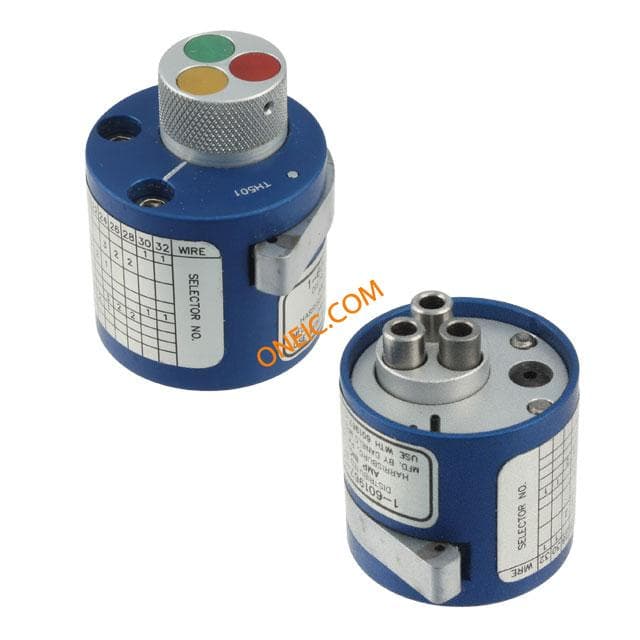

1-601967-5
