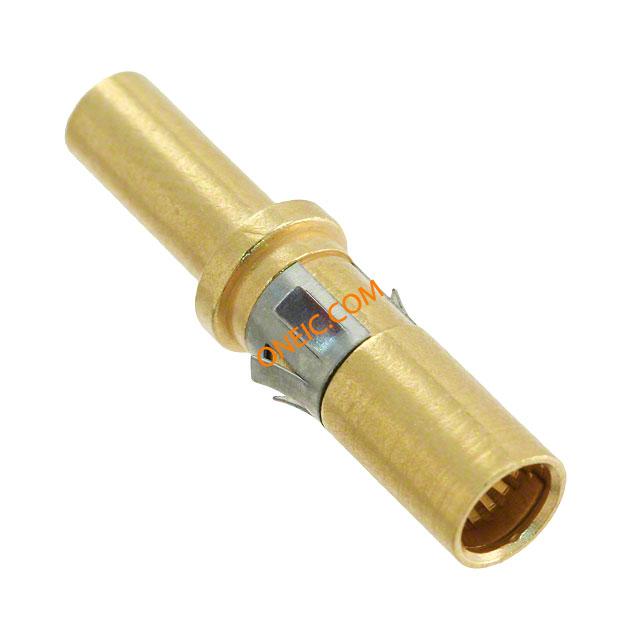

193535-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SKT PWR 12-14AWG CRIMP GOLD Pin & Socket Connectors SKT ASSY. ,POWER #12-14 AWG 193535-1 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketHigh CurrentGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 2.00-3.00² [14-12] mm [AWG]Copper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts SKT ASSY. ,POWER, #12-14 AWG |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL档案号 | E28476 |
| 标准编号 | CSA, UL | ||
电气参数
| 输出电流 | 56 | 最大额定电流 | 56 A |
机械参数
| 间距 | 2.54 mm | 镀层 | Gold |
| 材料（通用） | Copper Alloy | 包装方式 | Bulk |
| 绝缘类型 | Without | 导线线规 | 12-14 AWG |
| 端接方式 | Crimp | 触点形式 | Straight |
| 触头类型 | Power | 安装类型 | 压接 |
| 插针或插孔 | Socket | 端子尺寸 | 8 |
| 电缆直径 | 3831 – 6529 | 连接器类型 | Connector Circular |
| 接触镀层 | Gold Over Nickel | 安装样式 | PCB |
| 壳体镀层 | Nickel | 插入件材料 | 铜合金 |
| 触头材料 | Copper Alloy | 包装数量 | 1500 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 23 | 接触件端接 | Crimp |
| 镀层厚度（通用） | 30µin (0.76µm) | 兼容外壳尺寸（如TM-700等） | Metrimate 连接器 |
| 触点镀层 | 金 | 接触件表面处理 - 配合 | 金 |
| 法兰上方插针尺寸 | 3.4 mm [ .13 in ] | 接触镀层厚度 | .76 µm [ 30 µin ] |
| 后壳材料及镀层 | Gold | 护套（绝缘）厚度 | 1.25 µm [ 50 µin ] |
产品信息
| 备注 | 接合对象为料号 193534。 | 类型 | Power |
| 连接器性别 | SKT | 产品特性 | Standard Not Hot Pluggable |
| 产品子类型 | Receptacle Housings | 应用细节 | Power |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 125 °C [ -67 – 257 °F ] |
相关型号

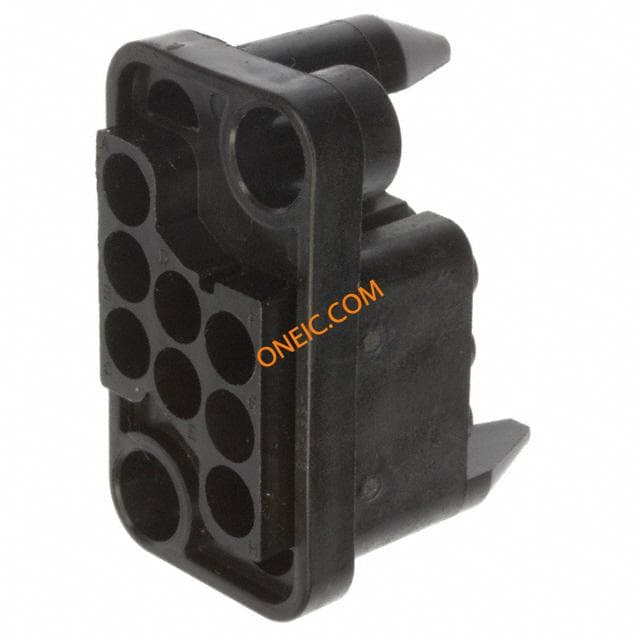

213499-1
