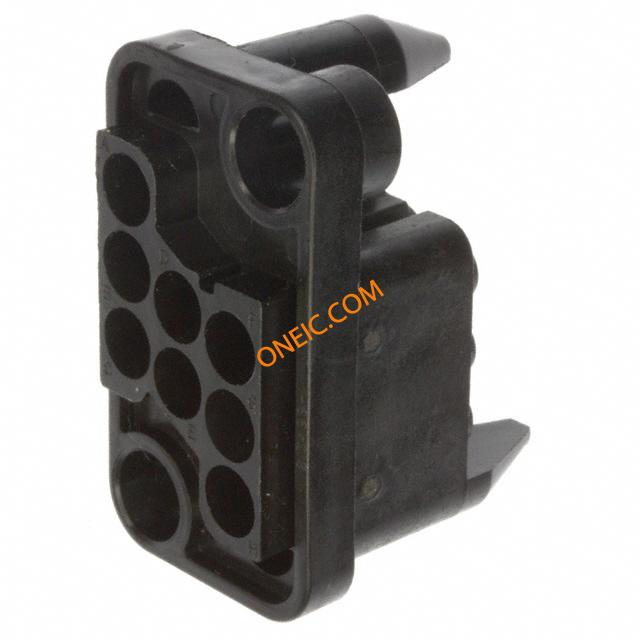

213499-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 8 POS 5.08mm ST Metrimate Connectors CONN PLUG 8 POS METRIMATE BLACK TE Connectivity 5.08mm 8 Way 3 Row Straight Male Multiway Connector Pin & Socket Connectors PLUG 8 POWER Conn Housing PL 8 POS 5.08mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = PowerNumber of Positions = 8PlugSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, PLUG, PANEL, 8WAY PLUG HSG,8 POWER METRIMATE |
| 分类 |
商业参数
| 其他名称 | 2134991 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电压 | 600.0 | 额定电压 | 600 V ac |
| 最大额定电流 | 14A | ||
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 高度 | 30.78mm | 重量 | 0.02 |
| 包装方式 | Bulk | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Housing | 安装样式 | Panel |
| 排数 | 3 | 连接器样式 | Drawer |
| 连接器用途 | Drawer | 锁定特性 | :Screw |
| 本体材料 | :Glass Filled Polyester | 壳体材料 | Polyester GF |
| 安装特性 | Without | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 传感器连接器 | Without |
| 触点数 | 8 | 位数 | 8 |
| 中心触点表面处理 | 5.08 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Metrimate |
| 产品特性 | Guide Pin | 编码、键控 | No |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 抽屉总数 | Power | 其他规格 | No |
| 适用产品/相关产品 | :Matrimate Pin Contacts | ||
文档与媒体
相关型号
213500-1
te connectivity / amp
Conn Housing RCP 8 POS 8mm ST Pin & Socket Connectors RECPT 8 POWER Metrimate Connectors CONN RECEPT 8 POS METRIMATE Conn Housing RCP 8 POS 8mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = PowerNumber of Positions = 8ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, RECPT HSG,8 POWER,METRIMATE
193643-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONTACT SKT 10AWG CRIMP GOLD Pin & Socket Connectors SOCKET HIGH CURRENT 10-12 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketHigh CurrentGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 5.00-6.00² [10] mm [AWG]Copper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts SKTASSY.,POWER,#10-12AWG SKT ASSY. ,POWER, #10-12 AWG
193535-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SKT PWR 12-14AWG CRIMP GOLD Pin & Socket Connectors SKT ASSY. ,POWER #12-14 AWG 193535-1 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketHigh CurrentGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 2.00-3.00² [14-12] mm [AWG]Copper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts SKT ASSY. ,POWER, #12-14 AWG

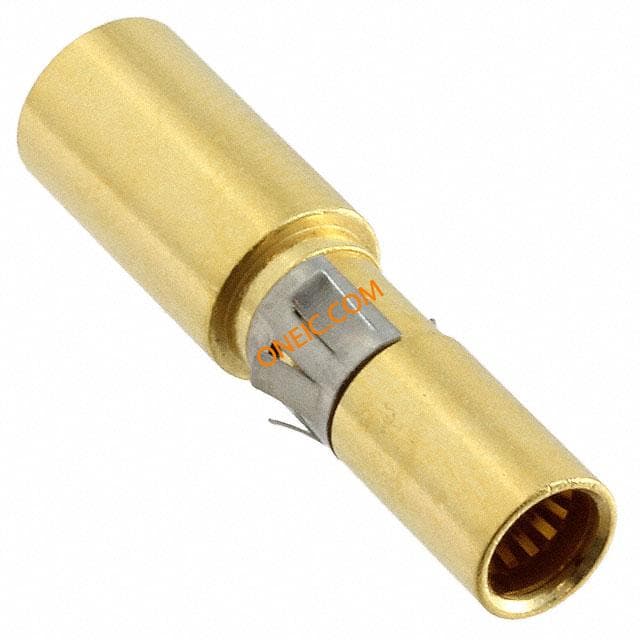

193458-1
