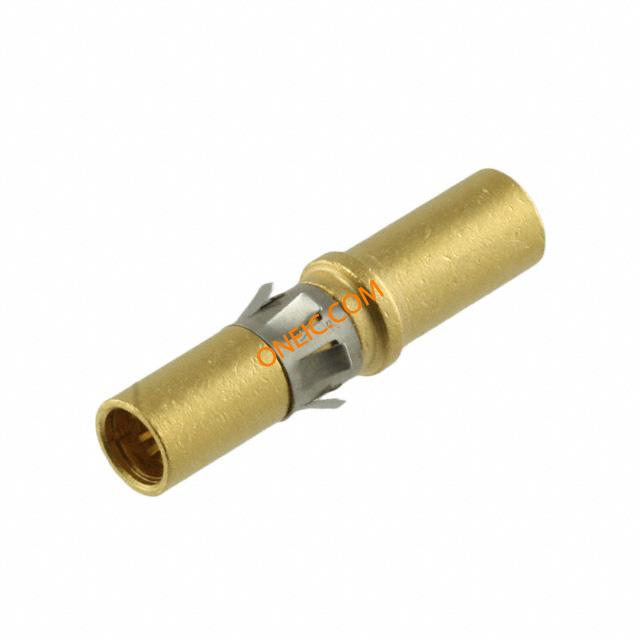

193643-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONTACT SKT 10AWG CRIMP GOLD Pin & Socket Connectors SOCKET HIGH CURRENT 10-12 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketHigh CurrentGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 5.00-6.00² [10] mm [AWG]Copper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts SKTASSY.,POWER,#10-12AWG SKT ASSY. ,POWER, #10-12 AWG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准编号 | CSA, UL | ||
电气参数
| 输出电流 | 56 | 最大额定电流 | 30 |
| 最小供电电压 | 600VAC | 回波损耗（低频段/高频段） | With |
机械参数
| 间距 | Not Required mm | 镀层 | Gold |
| 直径 | 5.8 mm | 材料（通用） | Copper Alloy |
| 包装方式 | Loose Piece | 绝缘类型 | Without |
| 导线线规 | 10 AWG | 端接方式 | Crimp |
| 触点形式 | Straight | 触头类型 | Power |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 端子尺寸 | 8 | 电缆直径 | 10404 |
| 连接器类型 | Connector Power | 接触镀层 | Gold |
| 安装样式 | Cable | 壳体镀层 | Nickel |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | Not Required | 总长度 | 22.4 mm |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 镀层厚度（通用） | 30µin (0.76µm) | 兼容外壳尺寸（如TM-700等） | Metrimate 连接器 |
| 触点镀层 | 金 | 接触件表面处理 - 配合 | 金 |
| 法兰上方插针尺寸 | 3.4 mm [ .13 in ] | 接触镀层厚度 | .76 µm [ 30 µin ] |
| 后壳材料及镀层 | Gold | 护套（绝缘）厚度 | 1.25 µm [ 50 µin ] |
产品信息
| 备注 | 接合对象为料号 193642-1。 | 类型 | Power |
| 连接器性别 | SKT | 系列 | Multimate |
| 产品特性 | Standard Not Hot Pluggable | 产品子类型 | Contacts |
| 端口数 | 1 Port | 应用细节 | Power |
