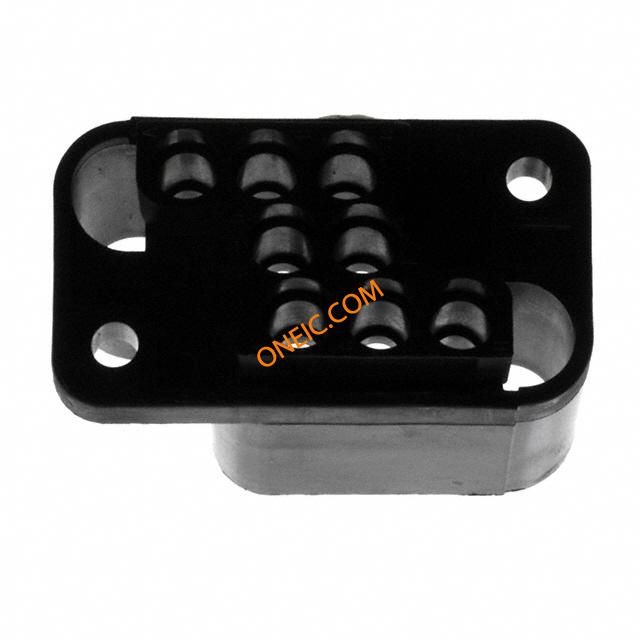

213500-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 8 POS 8mm ST Pin & Socket Connectors RECPT 8 POWER Metrimate Connectors CONN RECEPT 8 POS METRIMATE Conn Housing RCP 8 POS 8mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = PowerNumber of Positions = 8ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, RECPT HSG,8 POWER,METRIMATE |
| 分类 |
商业参数
| 其他名称 | 2135001 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 无铅定义 | Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl | UL档案号 | E28476 |
| CSA档案号 | LR16455 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 认证机构标志 | 是 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电压 | 600.0 | 额定电压 | 600 V |
| 供电电压 | 600 | 最大额定电流 | 14 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Black | 深度 | 41.02 mm |
| 间距 | 8 mm | 宽度 | 54.61 |
| 高度 | 30.78 mm | 长度 | 56.26 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 电缆类型 | 绞线 | 本体尺寸 | .031 – .091 in, .8 – 2.3 mm |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Housing |
| 安装样式 | Panel | 排数 | 3 |
| 连接器样式 | Drawer | 连接器用途 | Drawer |
| 高度（英寸） | 30.78 | 壳体材料 | Polyester |
| 总长度 | 54.61 mm | 安装特性 | Without |
| 包装数量 | 1 | 面板安装类型 | 带有 |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 传感器连接器 | Without | 触点数 | 8 |
| 位数 | 8 | 中心触点表面处理 | 5.08 |
| 兼容外壳尺寸（如TM-700等） | 插头外壳 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Metrimate |
| 产品特性 | Mating Guide | 编码、键控 | No |
| 制造商全称 | AMP | 产品子类型 | Receptacle Housings |
| 抽屉总数 | Power | 其他规格 | No |
环境参数
| 工作温度 | -55C to 130C | ||
相关型号

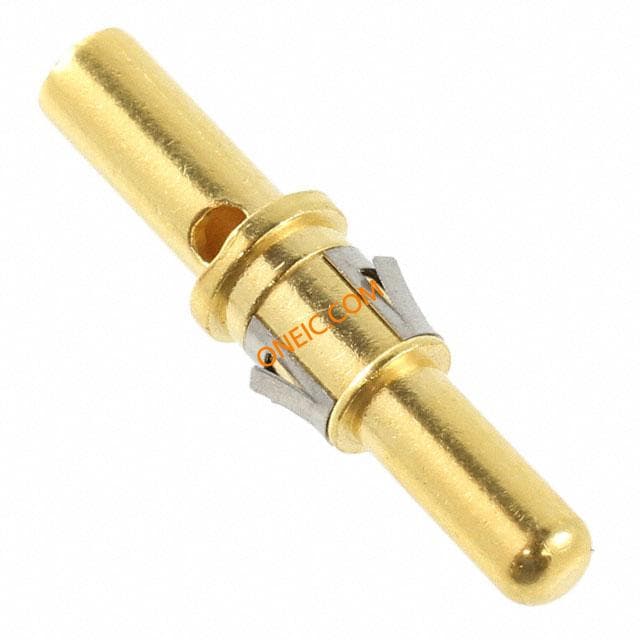

193534-1
