201578-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Multimate CONTACT PIN 20-24AWG CRIMP GOLD IC & Component Sockets PIN 24-20 30AU CRIMP Multimate Product Highlights:Contact Type = PinContact Classification = SignalType II SeriesGold (30) Contact Plating, Mating Area, MaterialWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts PIN ASSY,TAPED,TYPE II |
| 分类 |
商业参数
| 商标名 | Multimate | 标准包装规格 | 4,000 |
| 产品类别 | IC & Component Sockets | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 测试电流 | 13 | ||
机械参数
| 镀层 | Gold | 材料（通用） | Copper Alloy |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 分离式导线 |
| 导线线规 | 20-24 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Pin |
| 端子尺寸 | 16 | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 包装数量 | 4000 |
| 端接样式 | 插针 | 连接器颜色 | 黄色/红色 |
| 接触件端接 | Crimp | 绝缘直径 | 1.02 – 1.57 mm [ .04 – .062 in ] |
| 镀层厚度（通用） | 30µin (0.76µm) | 兼容外壳尺寸（如TM-700等） | CPC 连接器, G 系列连接器, M 系列连接器 |
| 接触镀层厚度 | 30 | ||
产品信息
| 备注 | 退针工具编号 305183 | 类型 | Machined |
| 连接器性别 | PIN | 系列 | Multimate Type II |
| 产品子类型 | 端子 | 应用细节 | Signal |
文档与媒体
相关型号
202648-4
te connectivity / amp
Connector Accessories Rectangular Module Phenolic Black G Series Modular Connectors (A Multimate Product) CONN PIN MODULE 11POS G-SERIES Pin & Socket Connectors PIN MODULE 11P G-SERIES Connector Accessories Rectangular Module Phenolic Black Product Highlights:ModuleNumber of Positions = 11Phenolic Module MaterialPinPlugSearch Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate, PIN MODULE, 11 POSN, G-SERIES
213800-2
te connectivity / amp
Conn Housing PL 34 POS ST Loose Piece M Series Connectors M-SERIES PLUG HOUSING,34 POS Pin & Socket Connectors PLUG HOUSING 34 POS Conn Housing PL 34 POS ST Loose Piece Product Highlights:HousingNumber of Positions = 34Polyester Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace,
200277-2
te connectivity / amp
Conn Housing RCP 50 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING RECEPT 50POS BLACK Connector,M series block,female,50 Way Pin & Socket Connectors FEMALE BLOCK 50 PL. Conn Housing RCP 50 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 50Phenolic Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, TERMINAL BLOCK, FEMALE Connector;Phenolic;Black;Standard;50;FreeHanging,PanelMount TE Connectivity M 系列 4 行 3.81mm 节距 50 路 直 母 压接连接器外壳 FEMALE BLOCK 50 PL.
90250-1
te connectivity / amp
Dies For AMP-Tapetronic Machine Signal Contacts Punches & Dies DIE PIN AND SOCKET 69875 18-14 DIE PIN AND SOCKET 69875 18-14
202650-2
te connectivity / amp
Connector Accessories Rectangular Module Phthalate Blue G Series Modular Connectors (A Multimate Product) PIN MODULE, 23 POSN, G-SERIES Pin & Socket Connectors PIN MODULE 23P g-series
202515-1
te connectivity / amp
Conn Housing PL 42 POS ST M Series Connectors CONN PLUG 42 POS MIXED PANEL MT TE Connectivity 42 Way Straight Male Multiway Connector Pin & Socket Connectors 42 POS BLOCK M Series Connectors Product Highlights:ConnectorNumber of Positions = 42Phenolic Housing MaterialPlugConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 42WAY Mseries,plug,42waymixedcontact TE Connectivity M 系列 5 行 42 路 直 公 面板安装 压接连接器外壳 42 POS BLOCK
202515-3
te connectivity / amp
Conn Housing PL 42 POS Crimp ST Panel Mount M Series Connectors CONN PLUG BLOCK 42POS BLUE Pin & Socket Connectors 42-POS-BLOCK PLUG M Series Connectors Product Highlights:ConnectorNumber of Positions = 42Diallyl Phthalate Housing MaterialPlugConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 42 POS BLOCK
205689-2
te connectivity / amp
Conn Housing PL 28 POS 6.35mm ST M Series Connectors CONN PLUG 28 POS PANEL MT BLACK Pin & Socket Connectors PIN BLOCK 28 POS SPL PLUG 28P PNL MNT BLK Conn Housing PL 28 POS 6.35mm ST Product Highlights:ConnectorNumber of Positions = 28Phenolic Housing MaterialPlugConnector Type = High VoltageSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, PINBLOCK28POS.SPL. PIN BLOCK 28 POS. SPL.
213427-1
te connectivity / amp
Conn Housing RCP 15 POS 5.08mm ST Metrimate Connectors CONN RECEPT 15 POS METRIMATE TE Connectivity 5.08mm 15 Way Straight Female Multiway Connector Pin & Socket Connectors RCPT HSG 3PWR 12 SGNL METRI Conn Housing RCP 15 POS 5.08mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = PowerNumber of Positions = 15ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, RECEPTACLE, 15WAY Housing15wayRecBlackMetrimate TE Connectivity 15路 5.08mm节距 直 母 RECPT HSG,3PWR,12 SGNL,METRI
201532-4
te connectivity / amp
Conn Housing RCP 104 POS ST Loose Piece M Series Connectors CONN HOUSING RECEPT 104POS BLACK Connector,Phenolic,Black,Standard,104 Pin & Socket Connectors RCPTBLOCK 104P Conn Housing RCP 104 POS ST Loose Piece Product Highlights:HousingNumber of Positions = 104Phenolic Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, RECEPTACLE, 104WAY Connector;Phenolic;Black;Standard;104;PanelMount;AMPBrand/MSeries RECEPT BLOCK,104 POSN,M SERIES
202515-2
te connectivity / amp
M-SERIES PIN BLOCK,42 POS Pin & Socket Connectors PIN BLOCK 42 POS CONN PLUG M-SERIES 42POS
202515-5
te connectivity / amp
Conn Housing PL 42 POS Crimp ST Panel Mount Pin & Socket Connectors 42 POS. BLOCK CONN PLUG 42POS MINI M SERIES
202650-4
te connectivity / amp
Connector Accessories Rectangular Module Phenolic Black G Series Modular Connectors (A Multimate Product) PIN MODULE, 23 POSN, G-SERIES Pin & Socket Connectors 23POS PIN RCPTL Connector Accessories Rectangular Module Phenolic Black Product Highlights:ModuleNumber of Positions = 23Phenolic Module MaterialPinPlugSearch Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate,
201532-2
te connectivity / amp
Conn Housing RCP 104 POS ST Loose Piece M Series Connectors CONN RECEPTACLE BLOCK HSG 104POS Pin & Socket Connectors M SRS PNL MNT RECP Conn Housing RCP 104 POS ST Loose Piece Product Highlights:HousingNumber of Positions = 104Diallyl Phthalate Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECEPT BLOCK,104 POSN,M SERIES
1-213684-1
TE Connectivity / AMP
D-Sub Standard Connectors OBSOLETE 34 PLUG KIT,M-SERIES,BULK PKG

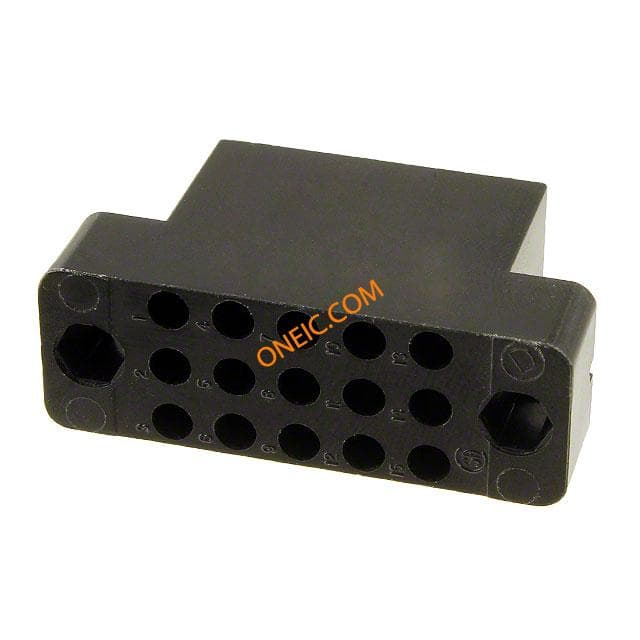

205607-2
te connectivity / amp
Conn Housing PL 15 POS 5.08mm Crimp ST Panel Mount M Series Connectors PIN BLK,15 POSN,AUTOWIRE Pin & Socket Connectors PIN BLK 15 POS PLUG
202759-4
te connectivity / amp
Connector Accessories Rectangular Module Phthalate Blue G Series Modular Connectors (A Multimate Product) PIN MODULE 14 POS G-SERIES Pin & Socket Connectors PIN MODULE 14 POSN G-SERIES G Series Modular Connectors (A Multimate Product) Product Highlights:Contact Module14 PositionsDiallyl Phthalate Module MaterialPinPlugSearch Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate, PIN MODULE, 14 POSN, G-SERIES
1-201357-1
te connectivity / amp
Conn Housing PL 34 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING PLUG 34POS BLACK TE Connectivity 3.81mm 34 Way 4 Row Straight Multiway Connector Free Hanging, Panel Mount Pin & Socket Connectors MALE BLOCK 34 PL Conn Housing PL 34 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 34Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, InterconnectPlugHousing;Phenolic;Black;Standard;34;AmpBrand,MSeries TE Connectivity M 系列 4行 34路 直 3.81mm节距 自由悬挂，面板安装 外壳 MALE BLOCK 34 PL

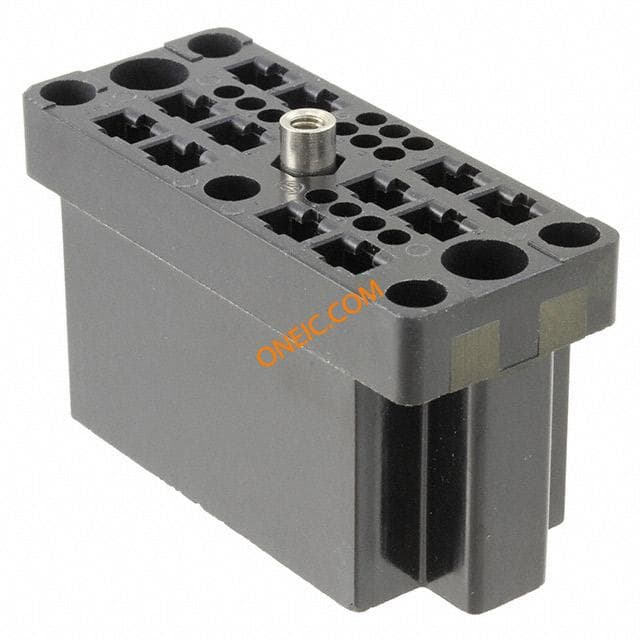

202478-2
