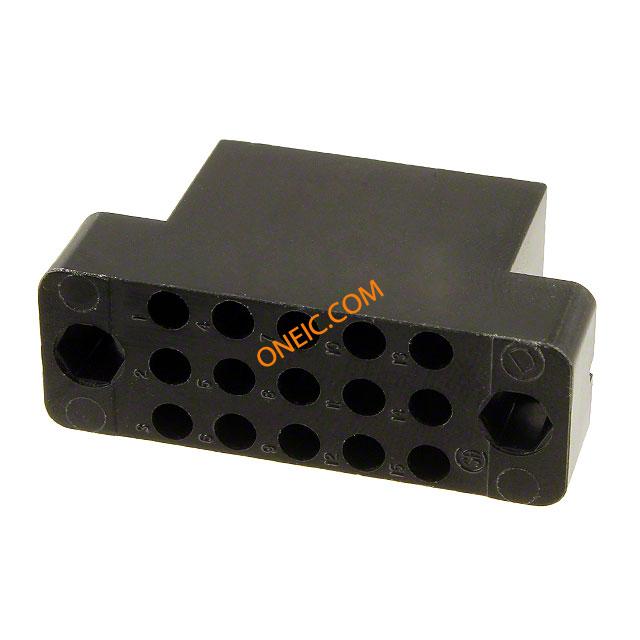

205607-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 15 POS 5.08mm Crimp ST Panel Mount M Series Connectors PIN BLK,15 POSN,AUTOWIRE Pin & Socket Connectors PIN BLK 15 POS PLUG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 152 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 宽度 | 14.5 mm [ .57 in ] | 高度 | 41.4 mm [ 1.63 in ] |
| 长度 | 23.24 mm [ .915 in ] | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Posted |
| 排数 | 3 | 外壳材料（壳体） | 插头 |
| 连接器用途 | Plug | 壳体材料 | Phenolic |
| 安装特性 | None | 包装数量 | 152 |
| 面板安装类型 | 带有 | 端接样式 | 插针 |
| 触点数 | 15 | 位数 | 15 |
| 兼容外壳尺寸（如TM-700等） | 母端排 205606-3 | 中心触点材料 | No |
| 第一连接器安装类型 | Panel | ||
产品信息
| 备注 | Accommodates 15 Type II or III+ Size #16 Socket Contacts.; Mates with AMP Part | 类型 | Housing |
| 连接器性别 | PL | 产品特性 | Jackscrew Socket |
| 产品子类型 | Housing | ||
环境参数
| 工作范围 | 不密封 | 工作温度 | -55 – 150 °C [ -67 – 302 °F ] |
