164162-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN .062 24-26AWG TIN CRIMP Pin & Socket Connectors PIN ASS Multimate Product Highlights:PinTin-Lead Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmCopper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts PIN ASS |
| 分类 |
商业参数
| 商标名 | Multimate | 标准包装规格 | 200 |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构标志 | 是 |
电气参数
| 测试电流 | 13 | 供电电压 | 600 |
机械参数
| 镀层 | Tin | 材料（通用） | Brass |
| 包装方式 | Bulk | 电缆类型 | 常规导线 |
| 导线线规 | 24-26 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Pin |
| 端子尺寸 | 16 | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin-Lead | 插入件材料 | 铜合金 |
| 触头材料 | Copper Alloy | 包装数量 | 200 |
| 端接样式 | 插针 | 接触件端接 | Crimp |
| 绝缘直径 | .89 – 1.4 mm [ .035 – .055 in ] | 镀层厚度（通用） | 78.7µin (2.00µm) |
| 兼容外壳尺寸（如TM-700等） | CPC 连接器 | 接触件表面处理 - 配合 | 锡铅 |
| 法兰上方插针尺寸 | 1.57 mm [ .062 in ] | ||
产品信息
| 备注 | 先导插针（比标准插针长 1.8mm）, 包含压线筒在内的总绝缘压接直径不得超过 3.18 [.125]。 | 类型 | Stamped |
| 连接器性别 | PIN | 系列 | Multimate Type III |
| 产品子类型 | 端子 | ||
环境参数
| 工作温度 | -55 – 105 | ||
相关型号
58495-2
te connectivity / amp
Connector Accessories Die Set Punches & Dies PROCRIMPER DIE ASSY MULTIMATE TOOL DIE SET CPC CONN TYPE III Die set for procrimper tool DIE, CPC SERIES 1 ProcrimperDieAssymblyMultimate;Diefor527-0108Handtool Crimp insert for type III+, 58495-2, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接模具 , 28 → 16 AWG 线规格 PROCRIMPER DIE ASSY MULTIMATE
211076-1
te connectivity / amp

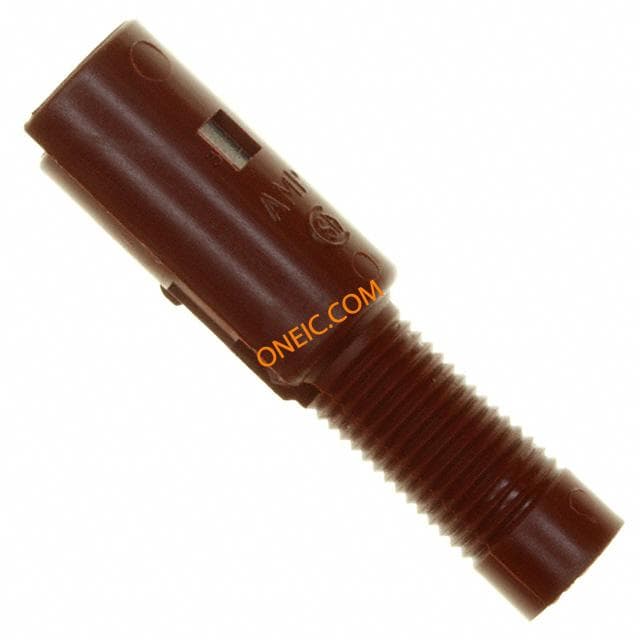

Conn Housing PL/RCP 1 POS ST Metrimate Connectors CONN HERMAPHRODITIC 1 POS METRI Headers & Wire Housings METRIMATE HOUSING HERMAPHRODITIC Conn Housing PL/RCP 1 POS ST Search Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, SINGLE CIR METRIMATE
205689-2
te connectivity / amp
Conn Housing PL 28 POS 6.35mm ST M Series Connectors CONN PLUG 28 POS PANEL MT BLACK Pin & Socket Connectors PIN BLOCK 28 POS SPL PLUG 28P PNL MNT BLK Conn Housing PL 28 POS 6.35mm ST Product Highlights:ConnectorNumber of Positions = 28Phenolic Housing MaterialPlugConnector Type = High VoltageSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, PINBLOCK28POS.SPL. PIN BLOCK 28 POS. SPL.
58495-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PCRIMP HN 28-16 AWG TOOL CRIMP CPC PROCRIMPER III Type III + contacts crimp tool CRIMP TOOL, TYCO AMP TYPE I Crimper;Ratchet;28-16AWG;CPC,MultimateContacts;58495-2Die;PRO-CRIMPERIII Tool: for crimping; terminals; 16÷18AWG,24÷20AWG,28÷24AWG Hand plier "Pro Crimper II", 58495-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 Multimate Type III+, Multimate Type VI Contacts 压接工具 PRO CRIMPER ASSY MULTIMATE
202515-2
te connectivity / amp
M-SERIES PIN BLOCK,42 POS Pin & Socket Connectors PIN BLOCK 42 POS CONN PLUG M-SERIES 42POS
202515-5
te connectivity / amp
Conn Housing PL 42 POS Crimp ST Panel Mount Pin & Socket Connectors 42 POS. BLOCK CONN PLUG 42POS MINI M SERIES
208209-1
te connectivity / amp

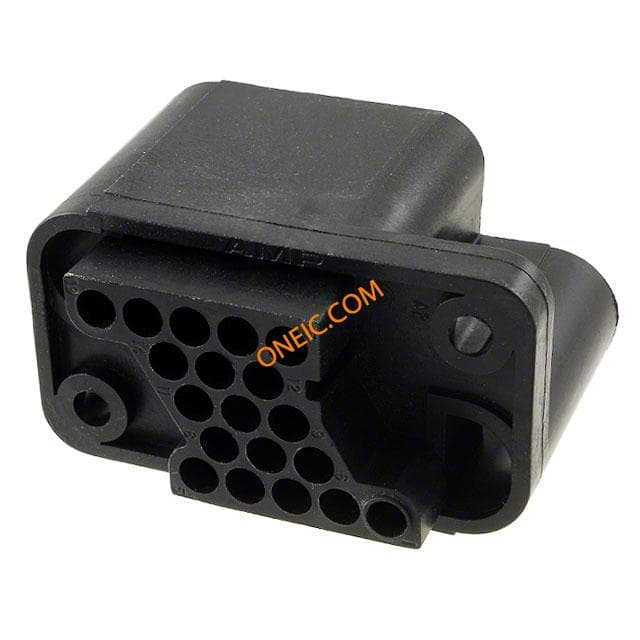

Conn Housing RCP 19 POS 5.08mm ST Metrimate Connectors CONN PIN HSNG 19POS PANEL MNT Pin & Socket Connectors PIN HSG 19 POSN METRIMATE 5mm (.197") Centerline, 600 V, 14 A max. (Metrimate) 5mm (.197") Centerline, 600 V, 14 A max. (Metrimate) Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = StandardNumber of Positions = 19ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, PIN HSG,19 POSN,METRIMATE
