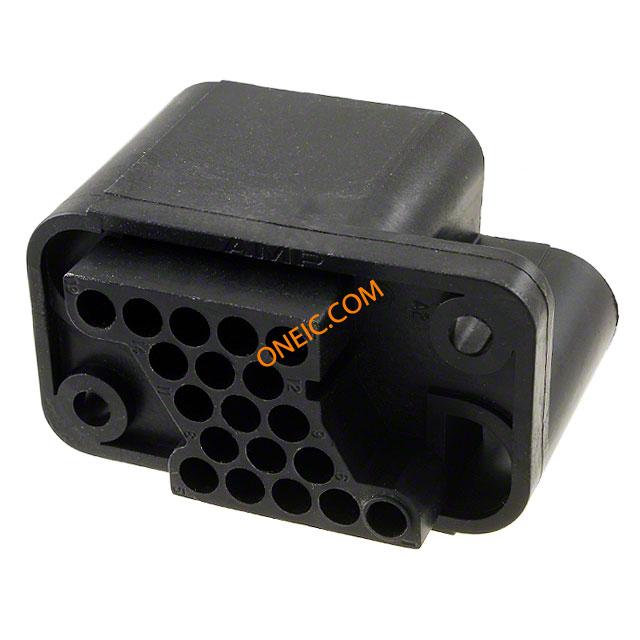

208209-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 19 POS 5.08mm ST Metrimate Connectors CONN PIN HSNG 19POS PANEL MNT Pin & Socket Connectors PIN HSG 19 POSN METRIMATE 5mm (.197") Centerline, 600 V, 14 A max. (Metrimate) 5mm (.197") Centerline, 600 V, 14 A max. (Metrimate) Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = StandardNumber of Positions = 19ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, PIN HSG,19 POSN,METRIMATE |
| 分类 |
商业参数
| 标准包装规格 | 1 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl | UL档案号 | E28476 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 认证机构标志 | 是 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 电压 | 600.0 | 供电电压 | 600 |
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 宽度 | 30.78 | 长度 | 54.94 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 电缆类型 | 绞线 | 本体尺寸 | .031 – .091 in, .8 – 2.3 mm |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Housing |
| 排数 | 5 | 连接器样式 | Drawer |
| 连接器用途 | Drawer | 壳体材料 | Polyester |
| 安装特性 | Without | 包装数量 | 1 |
| 面板安装类型 | 带有 | 端接样式 | 插针 |
| 传感器连接器 | Without | 触点数 | 19 |
| 位数 | 19 | 中心触点表面处理 | 5.08 |
| 兼容外壳尺寸（如TM-700等） | 插头外壳, 硬件 208211-1 或 -4 | ||
产品信息
| 备注 | Positions 1 & 19 should not be used with ground pin. | 类型 | Housing |
| 连接器性别 | RCP | 产品特性 | Mating Guide |
| 编码、键控 | No | 制造商全称 | AMP |
| 产品子类型 | Housing | 抽屉总数 | Standard |
| 其他规格 | No | ||
环境参数
| 工作温度 | -55 – 130 °C [ -67 – 266 °F ] | ||
相关型号
164163-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Pin & Socket Connectors PIN ASS. TYP3+ Multimate CONN PIN 24-20AWG SIZE 16 TIN Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:Contact Type = PinContact Classification = GroundType III+ SeriesTin Contact Plating, Mating Area, MaterialWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, HD, 0.3-0.56MM PIN ASS
164163-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Pin & Socket Connectors PIN ASSY Multimate CONN PIN 20-24AWG GOLD CRIMP Crimp contact, pin, type III+, size16 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.14 - 1.80 mmCopper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20AWG, CRIMP Contact,Multimate;Pin;16;CopperAlloy;Grounding;GoldoverNickel;Crimp;24-20AWG MultiMate Series 24-20 AWG Pin Crimp Gold Flash Loose Piece Stamped Connector Crimp Ground Pin 13 A, 164163-1, TE Connectivity TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 PIN ASSY
208210-1
te connectivity / amp
SKT HSG,19 POSN,METRIMATE Pin & Socket Connectors SKT HSG 19 POSN METRIMATE CONN SOCKET HSNG 19POS PNL MNT SKT HSG,19 POSN,METRIMATE Search Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp,
164160-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece CONTACT PIN 20-24AWG CRIMP TIN Pin & Socket Connectors PIN 24-20 AWG TIN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:PinTin Contact Mating Area Plating MaterialWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.14 - 1.80 mmCopper Alloy Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts M-SRS PIN ASSY 3+
164162-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN .062 24-26AWG TIN CRIMP Pin & Socket Connectors PIN ASS Multimate Product Highlights:PinTin-Lead Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmCopper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts PIN ASS
164164-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 16-18AWG GOLD CRIMP Crimp contact, pin, type III+, size16 Pin & Socket Connectors PIN ASSY Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.01 - 2.49 mmCopper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 18-16AWG, CRIMP Contact,Multimate;Pin;16;CopperAlloy;Grounding;GoldoverNickel;Crimp;18-16AWG Multimate Type lll 18-16 AWG Crimp Pin Contact Crimp Contact 13 A, 164164-2, TE Connectivity TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 PIN ASS
66180-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 16-18AWG GOLD SOLDER Contact male 18-16awg,Cable/Solder Mnt. Standard Circular Contacts III PIN SOLDER Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Copper Alloy Contact MaterialGold Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 18-16 AWG, SOLDER Contact,Multimate;Pin;16;CopperAlloy;Signal;GoldoverNickel;18-16AWG MULTIMATE Type III+ Series 18-16 AWG Discrete Wire Solder Signal Pin Assembly Solder contact male, 66180-1, TE Connectivity TE Connectivity Type XII 系列 13A 公 焊接端接 圆形 连接器 触芯, 使用于CPC 连接器、M 系列连接器, 18 → 16 AWG 线规格 III+ PIN,SOLDER,30AU,10AU FLASH,LP
164161-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 16-18AWG GOLD CRIMP Pin & Socket Connectors M-SRS.PIN BODY 3+ Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.75-1.50² [18.5-15.5] mm [AWG]Insulation Diameter = 2.01 - 2.49 mmCopper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts

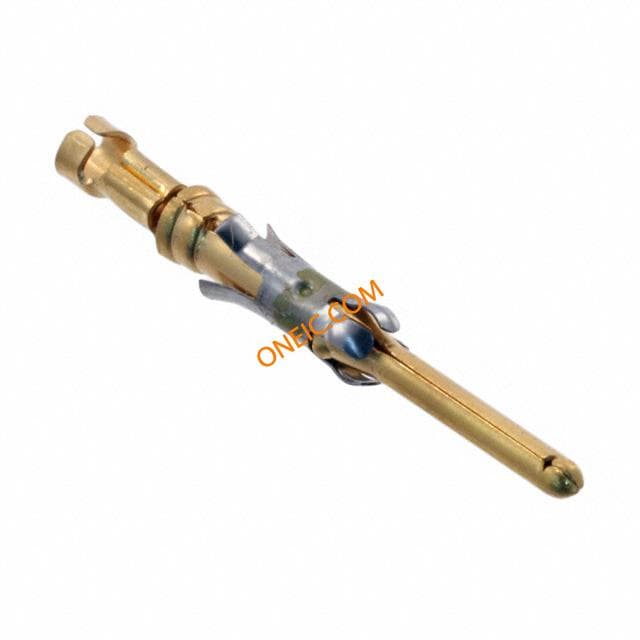

66182-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-26AWG GOLD SOLDER Contact male solder tab Multimate Standard Circular Contacts PIN SOLDER 26-20 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.50² [26-20] mm [AWG]Copper Alloy Contact MaterialGold Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 26-20AWG, SOLDER Contact,Multimate;Pin;16;CopperAlloy;Signal;GoldoverNickel;26-20AWG Solder contact male, 66182-1, TE Connectivity TE Connectivity Type III+ 系列 13A 公 焊接端接 圆形 连接器 触芯, 使用于CPC 连接器、M 系列连接器, 26 → 20 AWG 线规格 III+ PIN,SOLDER,30AU,10AU FLASH,LP
164160-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONTACT PIN 20-24AWG CRIMP GOLD Pin & Socket Connectors TYPIII PIN 24-20 BR/AU GRND Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.14 - 1.80 mmCopper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
1-66361-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate Contacts CONTACT PIN 14-18AWG CRIMP TIN TypeIII+EnhancedHighCurrentContact,Pin Pin & Socket Connectors III+ PIN 18-14 TIN Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TypeIII+EnhancedHighCurrentContact,Pin,18-14AWG,TinPlated III+PIN,18-14,TIN,LP,SN
66602-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONTACT PIN .062 14-18AWG CRIMP Contact,Multimate,Pin,16,CopperAlloy Pin & Socket Connectors III+ PIN 18-14 30AU Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinHigh CurrentGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 18-14AWG, CRIMP Contact,Multimate;Pin;16;CopperAlloy;Signal;GoldoverNickel;18-14AWG III+ PIN,18-14,30AU/FL,LP

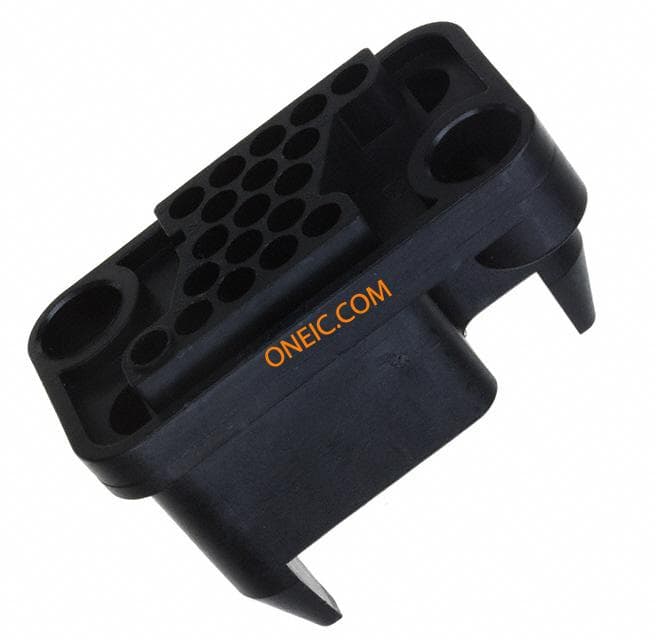

208210-2
te connectivity / amp
Conn Housing SKT 19 POS 5.08mm Crimp ST Cable Mount Metrimate Connectors CONN PLUG 19 POS METRIMATE Pin & Socket Connectors 19P PLUG HSG Conn Housing SKT 19 POS 5.08mm Crimp ST Cable Mount Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = StandardNumber of Positions = 19PlugSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, PLUG & SOCKET HOUSING, PLUG, PLASTIC HOUSING, RECEPTACLE, METRIMATE, 19WAY METRIMATEDRAWERCONN,METRIMATESOCKET19POSN 19 Position Plug Housing for Female Sockets Pin Metrimate Connector METRIMATE SOCKET 19 POSN
202236-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN SOLDER CPC TIN TypeIII+Contact,Pin,SolderTab,TinPlated Pin & Socket Connectors TYPIII PIN S-TAB BR/SN SIG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:Pin with Solder TabBright Tin Contact Mating Area Plating MaterialCopper Alloy Contact MaterialBright Tin Termination End PlatingType III+Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, SOLDER MultiMate Connector Type III+ Tin Plating Pin Solder Tab TE Connectivity Type III+ 系列 焊接端接 圆形 连接器 触芯, 使用于CPC 连接器 III+ PIN,SOLTAB,TIN,LP
202236-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate Contacts CONN PIN SOLDER CPC GOLD Contact male solder tab Multimate Pin & Socket Connectors TYPIII PIN S-TAB BR/AU SIG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:Pin with Solder TabGold (30) Contact Mating Area Plating MaterialCopper Alloy Contact Base MaterialGold Termination End PlatingType III+Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, SOLDER TypeIII+Contact,Pin,SolderTab,GoldPlated MultiMate Connector Type III+ Gold End Plating Size 16 Pin Solder Tab Solder contact male, 202236-7, TE Connectivity TE Connectivity Type III+ 系列 13A 公 焊接端接 圆形 连接器 触芯, 使用于CPC 连接器、M 系列连接器 III+PIN,SOLTAB,30AU>10,LP,SN
1-66359-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONTACT PIN .062 14-18AWG CRIMP Pin & Socket Connectors III+ PIN 18-14 30AU 1-66359-6 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinHigh CurrentGold (30) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+PIN18-14 TE Connectivity Type III+ 系列 公 压接触点, 压接, 镀金触点 III+ PIN,18-14,30AU/FL,STRIP

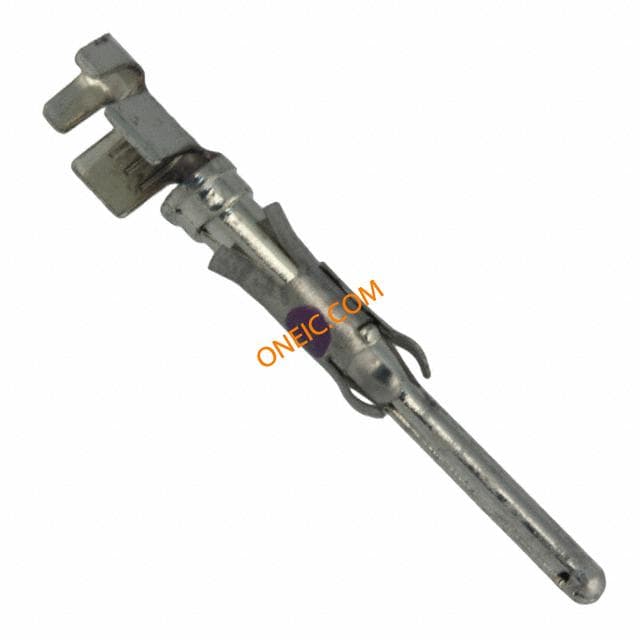

1-66359-9
