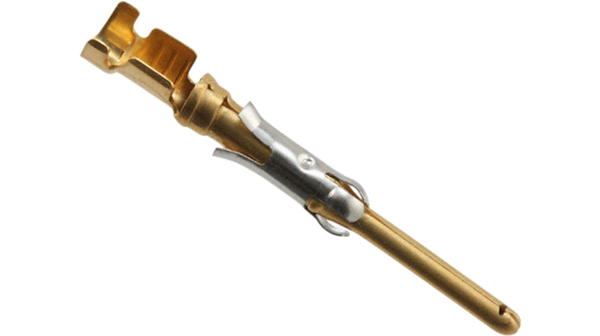

164164-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 16-18AWG GOLD CRIMP Crimp contact, pin, type III+, size16 Pin & Socket Connectors PIN ASSY Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.01 - 2.49 mmCopper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 18-16AWG, CRIMP Contact,Multimate;Pin;16;CopperAlloy;Grounding;GoldoverNickel;Crimp;18-16AWG Multimate Type lll 18-16 AWG Crimp Pin Contact Crimp Contact 13 A, 164164-2, TE Connectivity TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 PIN ASS |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 200 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHS,ELVCompliants |
| 海关税号 | 85369010 | ||
电气参数
| 输出电流 | 13A | 最大额定电流 | 13 A |
机械参数
| 深度 | 3.7 mm | 间距 | Not Required mm |
| 高度 | 3 mm | 重量 | 0.002 |
| 镀层 | Gold | 材料（通用） | Copper Alloy |
| 包装方式 | Bulk | 导线类型 | Regular |
| 导线线规 | 16-18 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 引脚直径 | 0.062in. |
| 安装类型 | Straight | 插针或插孔 | Pin |
| 连接器类型 | Connector Power | 接触镀层 | Gold Over Palladium Nickel|Gold Over Nickel |
| 安装样式 | Cable | 触头材料 | Brass |
| 壳体材料 | Not Required | 总长度 | 29.4mm |
| 框架材料 | StainlessSteel | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 1 POS |
| 接触件尾部长度 | 16 | 接触件端接 | Crimp |
| 绝缘直径 | 0.079to0.098in. | 镀层厚度（通用） | 30µin (0.76µm) |
| 线规或范围 - AWG | :18AWG | ||
产品信息
| 类型 | Stamped | 等级 | Commercial |
| 连接器性别 | PIN | 系列 | Multimate Type III |
| 制造商全称 | AMP | 产品子类型 | Contacts |
| 端口数 | 1 Port | 适用产品/相关产品 | :CPC Connectors |
